Casa MS / ODA-Oficina de Arquitectura

  • 01:00 - 2 May, 2013
Casa MS / ODA-Oficina de Arquitectura
© Tomas Opitz
© Tomas Opitz

© Tomas Opitz © Tomas Opitz © Tomas Opitz © Tomas Opitz + 25

Casa MS / ODA-Oficina de Arquitectura, © Tomas Opitz
© Tomas Opitz

Text description provided by the architects. The area of ​​764.00 m² plot is with R3 zoning (40% and 80% location construction).

© Tomas Opitz
© Tomas Opitz

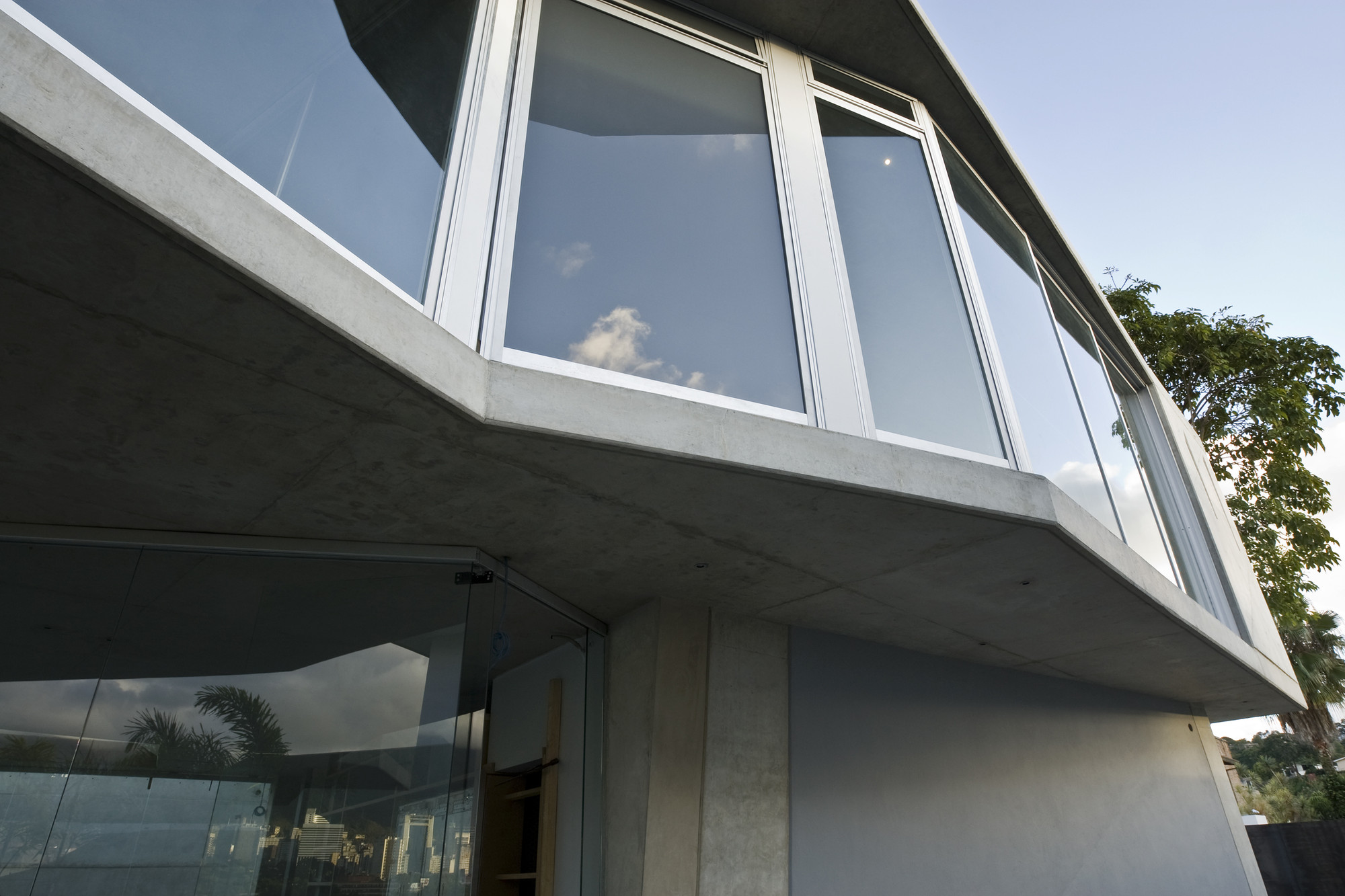

The house has three floors with a total area of ​​304.11 m2 of location and construction of 610.70 m2. Built on concrete slab and direct foundation, the walls are made of clay blocks gasketed and painted. The house has a maximum height of approximately 9.30 m from the level of the street, and their enclosures are of aluminum and clear glass combined with blacksmithing.

© Tomas Opitz
© Tomas Opitz

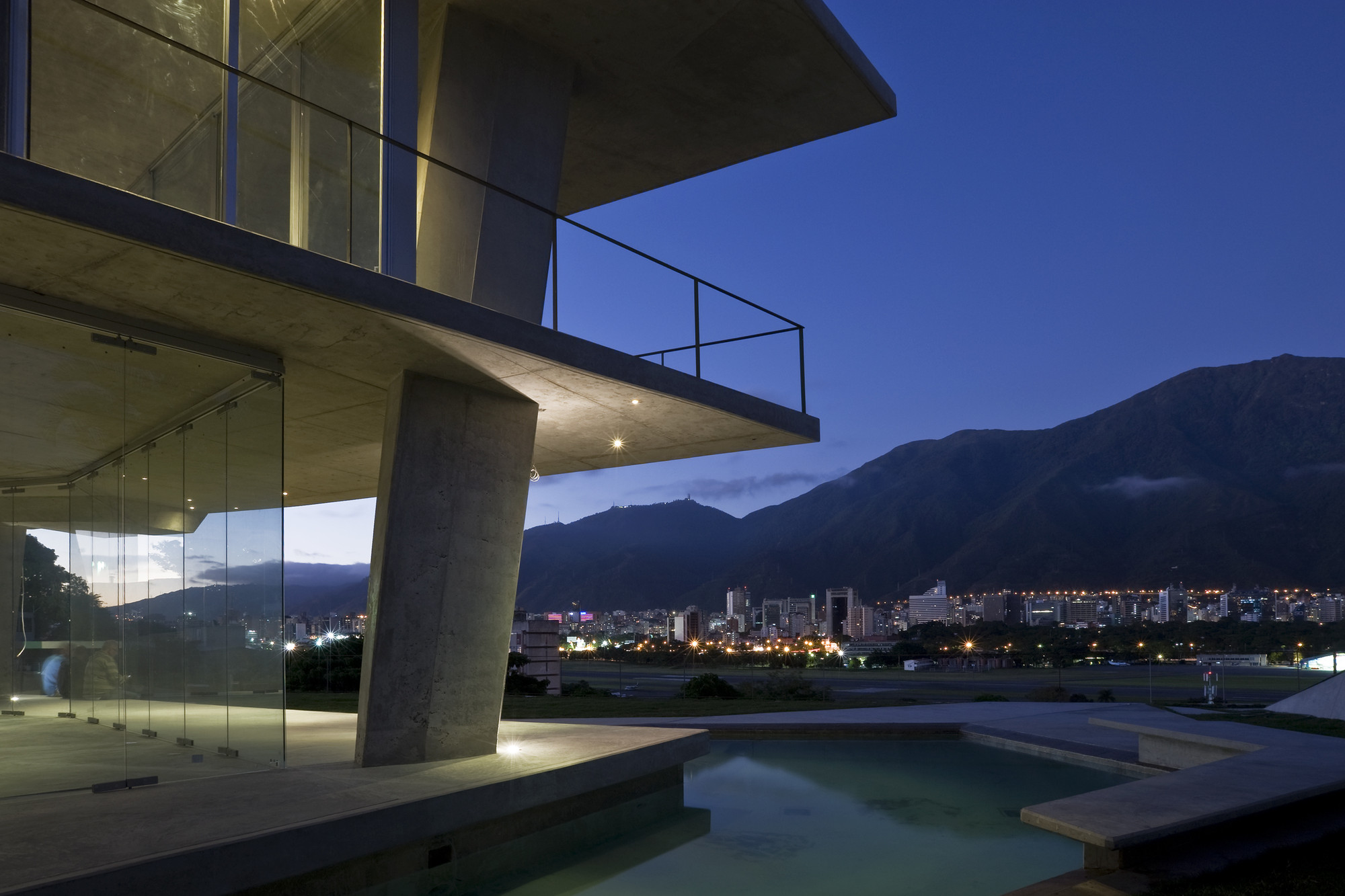

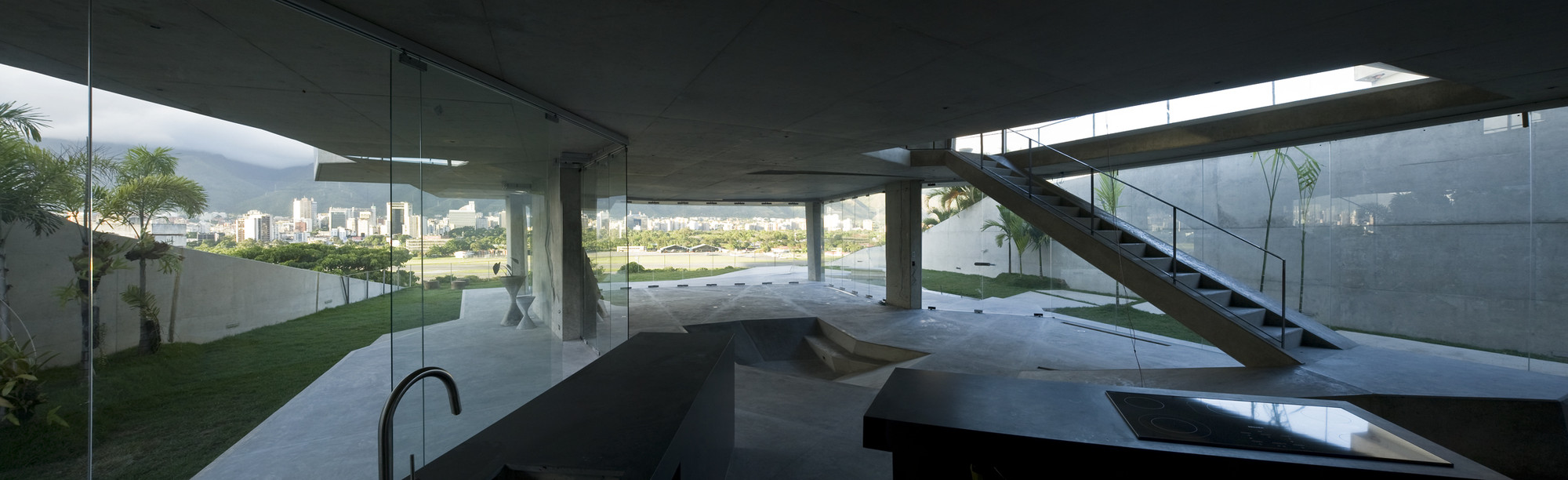

The entrance to the house is on the east side of the ground floor, which occupies an area of ​​273.50 m². This plant has: a hall in unevenness, half guest bathroom, kitchen, service area (pantries, be of service, laundry, utility room, bathroom and a service yard) the dining room and the main hall. These last two are adjacent to the pool and the garden surrounding the house. It has two parking spaces, one of which is covered, located on the west side boundary of the plot and the house is communicated through the service entrance leading to the kitchen.

© Tomas Opitz
© Tomas Opitz

Upstairs, on Floor Level 1, with an area of ​​265.66 m², there are three bedrooms with a small balcony, a bathroom and walk-in closet, a private living room and master bedroom, dressing room and terrace balcony overlooking the back of the plot.

© Tomas Opitz
© Tomas Opitz

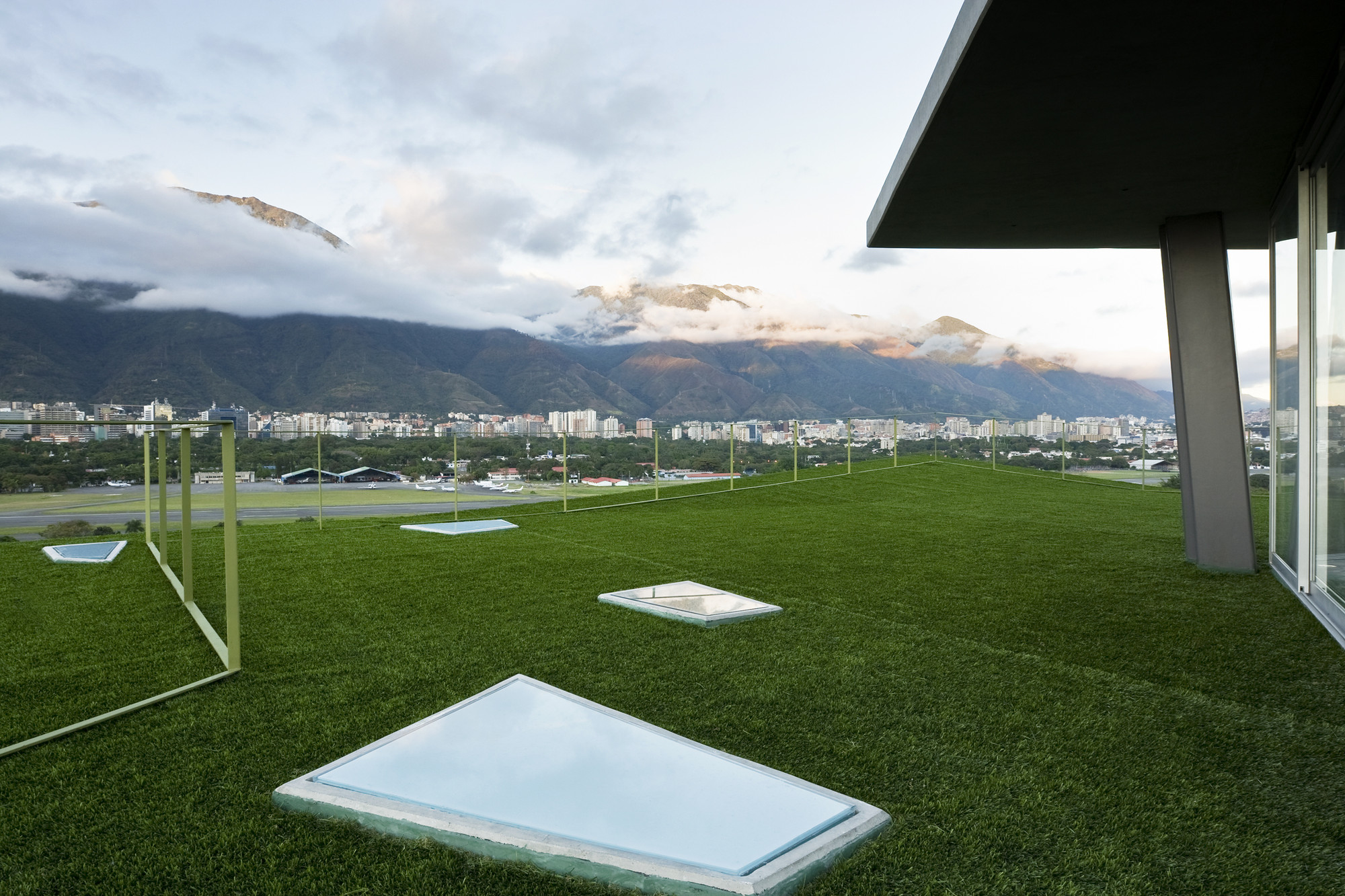

Up the second staircase we find the Level Studio or Stage 2, with an area of ​​71.54 m², where they are: an open space where the library is developed, studio and living room with access to the roof, a bathroom and an area for equipment air conditioning.

© Tomas Opitz
© Tomas Opitz

The underground water tank by a pump room and engine room that is located below the level of the ground floor located in the north east corner of the plot.

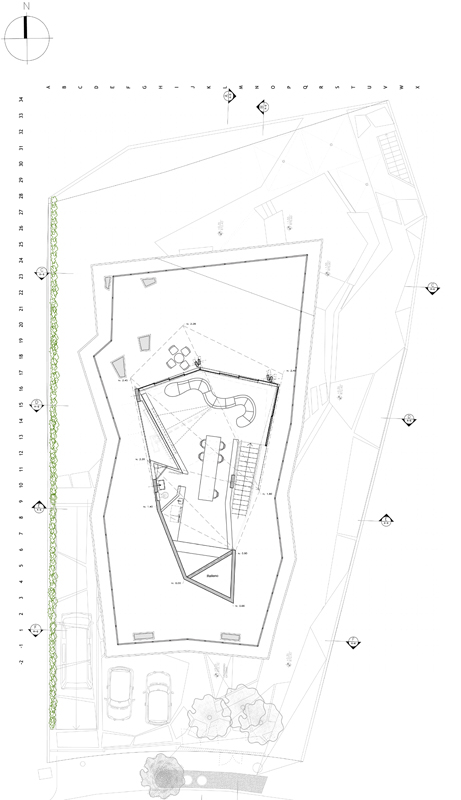

Floor Plan
Floor Plan
