Vertebrae Staircase / Andrew McConnell

Vertebrae Staircase / Andrew McConnell  - Image 1 of 12
Courtesy of Andrew McConnell

Inspired by the spine of a whale, the Vertebrae Staircase is not simply mimicry of organic form but an exploration in shaping structure. Much of the design work went into refining the single component, or vertebra, that mate with each other creating a unified spine running from floor plate to floor plate. These interlocking vertebrae create a rigid and self-supporting structure.

More on Andrew McConnell's 'Vertebrae Staircase' after the break.

Vertebrae Staircase / Andrew McConnell  - Image 5 of 12
Courtesy of Andrew McConnell

The outer surface is composed of multiple layers of a durable composite fibre material while inside are the key structural elements. The vertebrae are mated using steel fittings and locked together with steel pins. When all the connections are made, continuous structural spirals run through everyvertebra at the hand rail and beside each step, reinforced by structural foam and a network of steel rods.

Vertebrae Staircase / Andrew McConnell  - Image 10 of 12
Connections Drawing; Courtesy of Andrew McConnell

Steel plates connected to the slightly modified base and top vertebrae are anchored to the floors. Beyond this, there are no hidden supports as theVertebrae Staircase is designed to act as one structural element, bearing the loads of its users and transferring these forces to the floor plates. And the pinned connections at the floor plates combined with the connections between vertebrae allow the staircase to successfully resist twisting and rotational forces that result from the cantilevered spiral and cantilevered steps.

Vertebrae Staircase / Andrew McConnell  - Image 11 of 12
Single Vertebra Drawing; Courtesy of Andrew McConnell

Step, banister and hand railing – I could clearly see all these elements contained within a whale’s vertebrae and spine. The Vertebrae Staircase is the reconfiguration of this familiar form resulting in a unique and functional piece of design.

Vertebrae Staircase / Andrew McConnell  - Chair

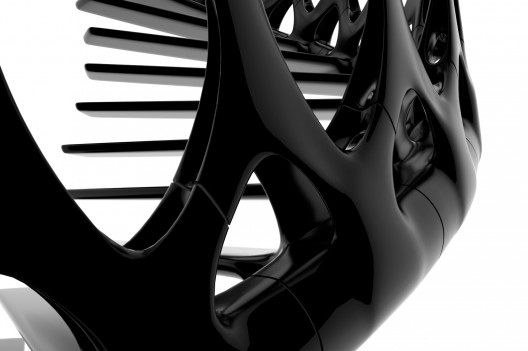

Joints Close Up; Courtesy of Andrew McConnell
