Eleva / BABELstudio

Courtesy BABELstudio

BABELstudio‘s recent project, Eleva, has been selected for the second phase of the international competition for station entrances of the future San Sebastian underground. Also in the second phase, well-known offices as Snohetta, Morphosis and Richard Rogers are active participants. Follow after the break for further images and a brief narrative from the architects.

‘Eleva’, the proposal for the entrances to the new underground of San Sebastian, is based on the idea of the manipulation of the terrain. As the tubes of the metro network are generated by excavating and perforating the ground, the access is created by cutting the pavement in correspondence to the superfitial world.

Courtesy BABELstudio

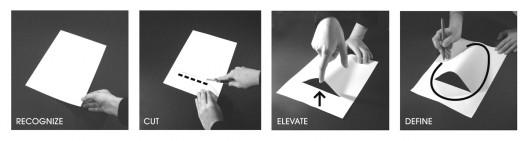

The concept is to recognize the place to penetrate and – as the Pink Panther would do – cut the surface and elevate it to obtain an access to the subterranean world. Finally the area of intervention is delimited and pointed out by a change of material.

Courtesy BABELstudio

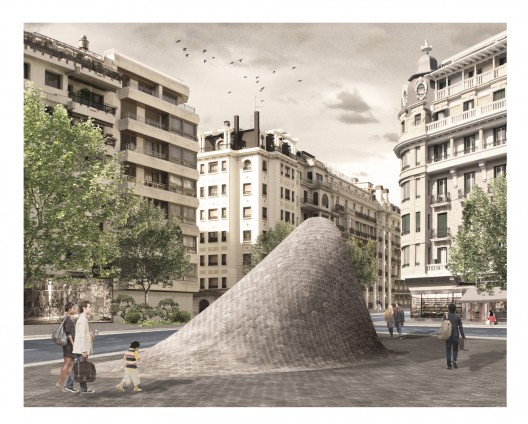

As a result the object in sinuos curves emphasizes its strong sculptural character demanding its protagonism in the urban scale. The entrances are conceived as landmarks of the city of San Sebastian, leading the users to recognize them as an inseparable part of the metro and the urban surroundings.

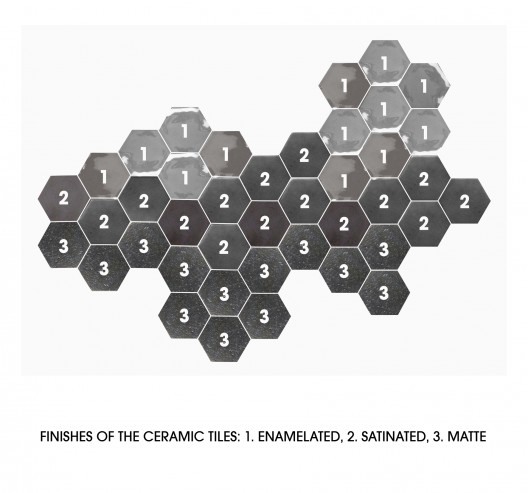

Tiling Pattern

The construction is made of a curved reinforced-concrete shell structure that, due to its catenary shape, provides a minimal thickness ensuring the lightness of the object. Considering the coatings and waterproofing requirements the minimum section is calculated with approximately 12cm. The structure in white concrete is polished on its underside and covered with black hexagonal ceramic tiles on the outer face. These pieces are manufactured in different finishes. While rough textured ones are used for the pavement, the tiles gradually change to satinated and finally enamelated ones. The light softly illuminates the pixelated appearance of the curve and spreads to all directions generating expressive nuances of light.
