Architects: StudioGreenBlue
Location: Fukaya, Saitama, Japan
Team: Mitsuharu Kojima, Wataru Kobayashi
Project area: 97,5 sqm
Project year: 2008
Photographs: StudioGreenBlue

Now environmental problems are the most important issue on the Earth. However, in the other side almost of all people prefer the house using a lot of glasses for the spread of the space and depends on the air conditioner.

Therefore we think to make the comfortable house which has a large opening to get a refreshing feeling. Using the energy of the nature, the warmth of the sunlight and the winds, we make a comfortable place, cool in summer, warm in winter.

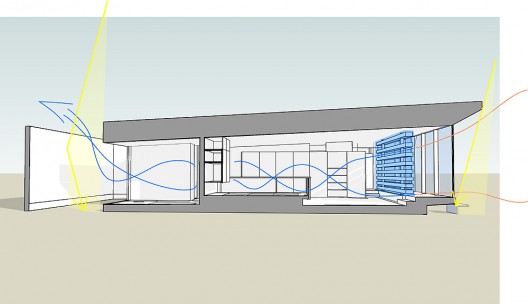

diagram 01

The site is an inland area in the kanto-plain where is the hottest place in Japan. The ground is surrounded by the field of spring onion, sandy north wind blow in through the gap of sash in winter. In such a harsh environment, inhabitants of this house, who are extremely sensitive to the cold, hope a room which is a warm and to be able to keep privacy.

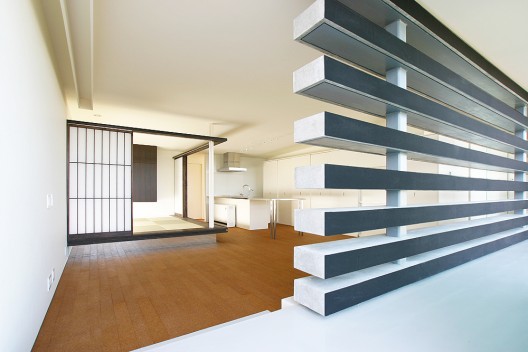

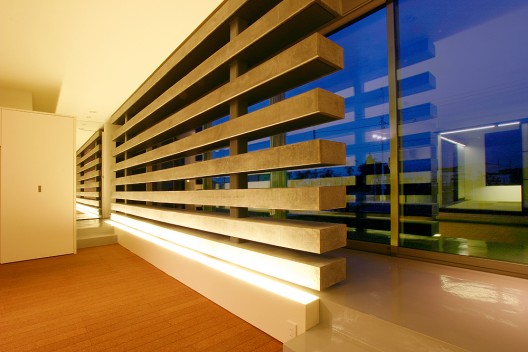

We picked on the concrete, that has a big calorific capacity. Storing the heat, bringing the light, bearing the horizontal power, operation of sight, guiding the flow of the man, reducing the cold draft by using the concrete as the louver. Making the house as the concrete louver primary, it indicates us a new possibility between a man and house.

The house has the opening, like a gate, to shut out the sunlight and take more wind in. The space between each concrete louver contracts toward the bottom for blocking the sunlight, widens toward the top for seeing the sky.

That easy turn becomes a sociable screen considering the privacy and temper. The gradation of the sunlight accompany time gives a gaily life. Japanese house has had “central pillar” and has supported the houses and the family’s minds since a long time ago.

But in the present age when an environmental problem became the most important problem the concrete louver furnishes protection of the privacy and main role on the space of structure, the construction and energy saving. That shoulders the role of new central pillar.

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: © StudioGreenBlue

: plan

: diagram 01

: diagram 02
