R1D Housing / a3gm

  • 01:00 - 12 September, 2010
R1D Housing / a3gm
R1D Housing / a3gm, © Jesús Granada
© Jesús Granada

© Jesús Granada © Jesús Granada © Jesús Granada © Jesús Granada +33

  • Architects

  • Location

    Burgos, Spain
  • Architects

    a3gm
  • Project Architects

    Jesús Alba Elías, Laura García Juárez, Jesús García Vivar, Smara Gonçalves Diez, Carlos Miranda Barroso
  • Collaborators

    Ignacio Martínez Fernández, José Manuel Alarcia López
  • Investor

    Consorcio para la Gestión de la Variante Ferroviaria de Burgos
  • Contractors

    Corsán-Corviam
  • Budget

    1,591,940 €
  • Area

    3490.0 sqm
  • Project Year

    2009
  • Photographs

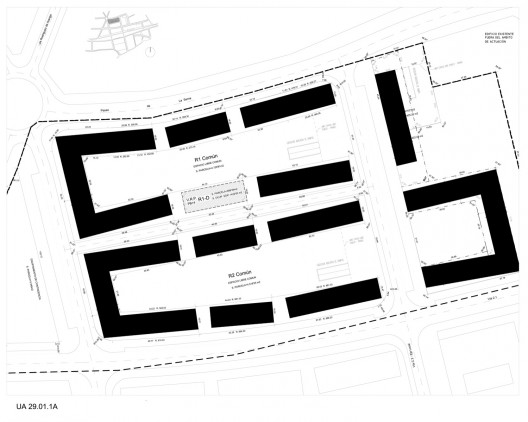

From the architect. The building is located on the block R1 of the AU 29.01.1A Burgos, promoted by the Consorcio para la Gestión de la Variante Ferroviaria. From the competition it was given special importance to the criteria of sustainability and energy efficiency.

© Jesús Granada
© Jesús Granada

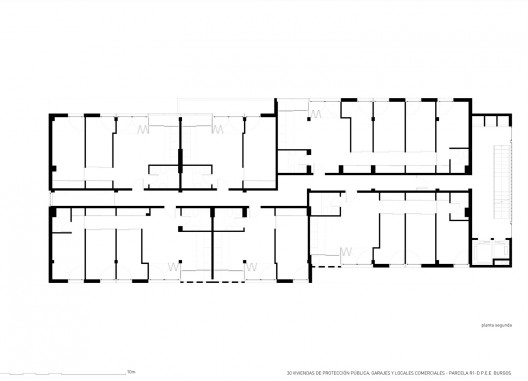

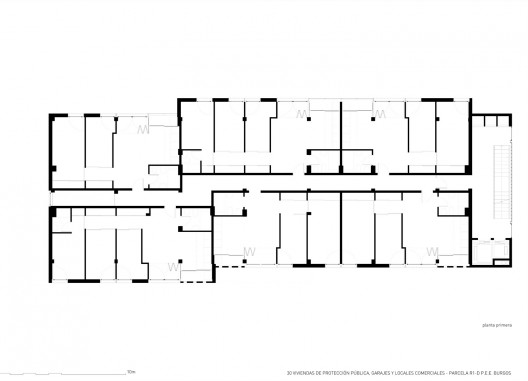

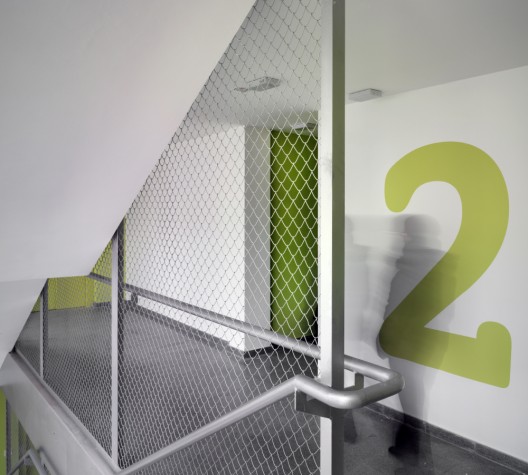

The developed proposal starts from the analysis of the situation of the two main facades as of a certain equivalence: northwest and block courtyard/ southeast and street. The 30 houses of between one and four bedrooms are developed in the six plants with a certain randomness to allow a variable access and a volumetric treatment of the facades. The access corridor that crosses the block longitudinally from the box of stairs to the opposite facade produces a differential shift of the boxes going out in the four intermediate levels.

© Jesús Granada
© Jesús Granada

On the ground floor are situated the commercial premises with facade to the street and the adapted houses open to the courtyard. The attic plan goes back from the facade plane and allows the emergence of a common terrace.

© Jesús Granada
© Jesús Granada

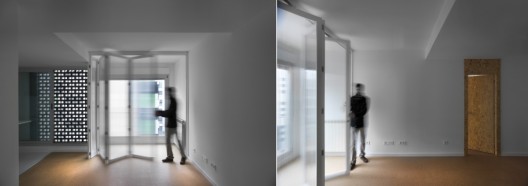

The houses are composed by aggregation: the elements of the program are equal and different types are produced by a combination of modules of kitchen-dining-living, main bedroom and secondary bedrooms associated to the storage space.

© Jesús Granada
© Jesús Granada
