Palais Rasumofsky / Baar-Baarenfels

  • 09 Oct 2013
  • Cultural Selected Works
© Vera Subkus

Architects: Baar-Baarenfels
Location: Vienna,
Design Team: Johannes , Ernst Stockinger, Martin Reis, Petr Vokal, Georg Pamperl
Area: 11,000 sqm
Photographs: Vera Subkus

Structural Engineering: Jahangir Nasserzare, Marian Gottschall, Sylvestra Nanesvski
Mechanical Engineering: Cornelius Peter, Reza Saber, Monika Dany
Building Supervision: Mag. Franz Pichler, DI Peter Stögerer, Bmst. Franz Leitner

© Vera Subkus

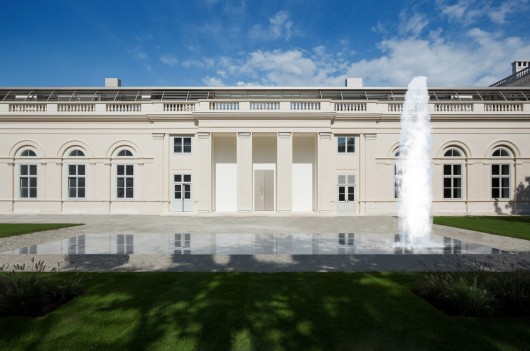

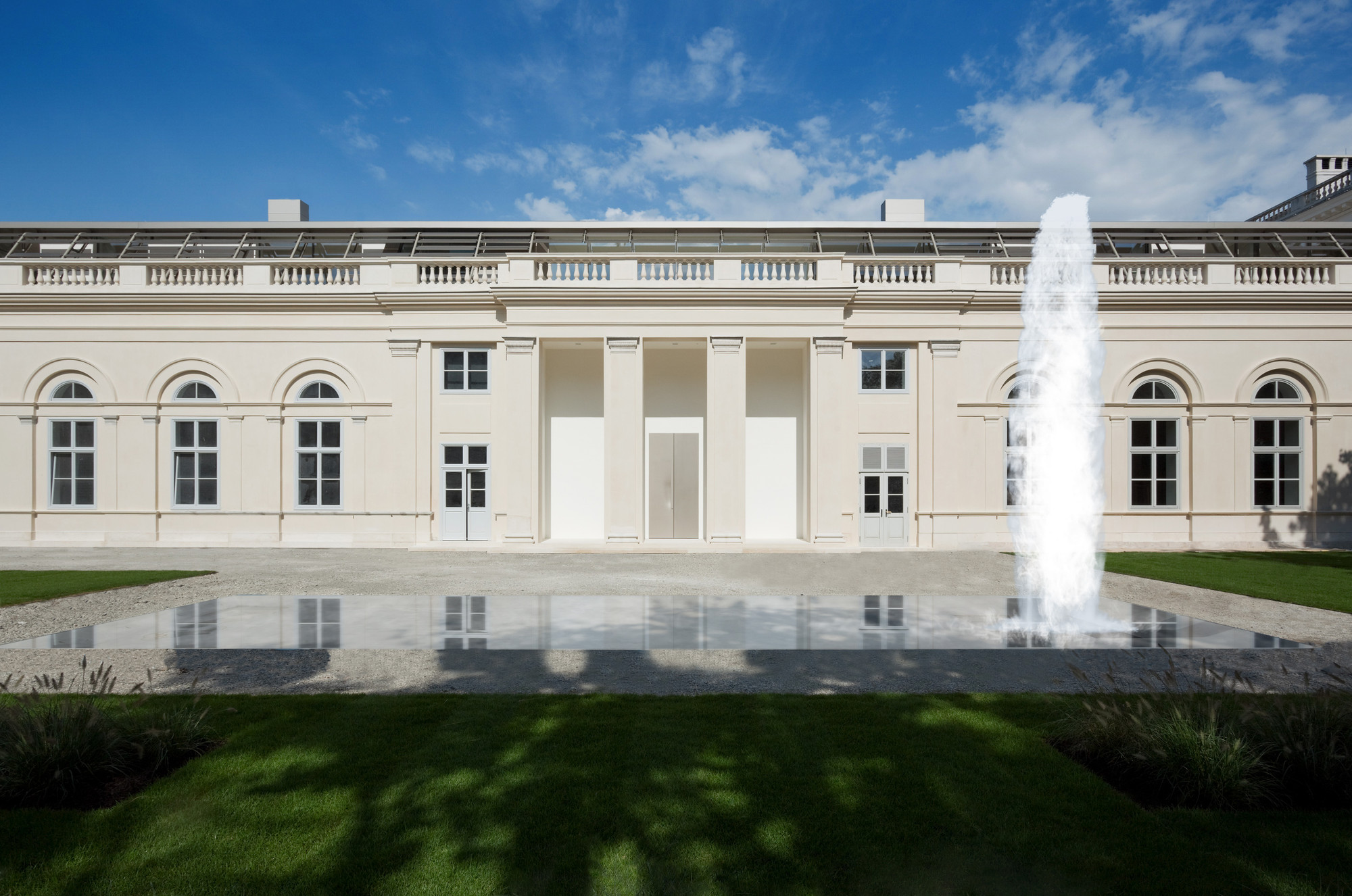

From the architect. The palais was built for Andrei Kirillowitsch Duke Rasumofsky, the former Russian ambassador under Czar Alexander during the time of the Viennese Congress of 1806. As a patron of Beethoven and the flourishing art movement, Duke Rasumofsky selected Belgian architect Louis Montoyer to create the ensemble of three buildings with a floor area comprising over 11.000m2 surrounding a central park located in central Vienna. Alois the 2nd, Duke of Liechtenstein, resided in the palais from 1838 -1873 which later became state owned shortly thereafter before being acquired recently by two significant contemporary art collectors who commissioned the conversion into an art foundation and private residence.

© Vera Subkus

The central building was damaged during World War II and poorly repaired and maintained during the post-war period leading to significant problems. The building is listed as a historical building and, therefore, careful reconstruction and analysis of new strategies was conducted in order to enhance the overall building structure. All unauthentic elements, such as the roof, stairs, and interior wall modifications were demolished and a new vertical circulation scheme was developed with the addition of an underground parking structure and support spaces.

© Vera Subkus

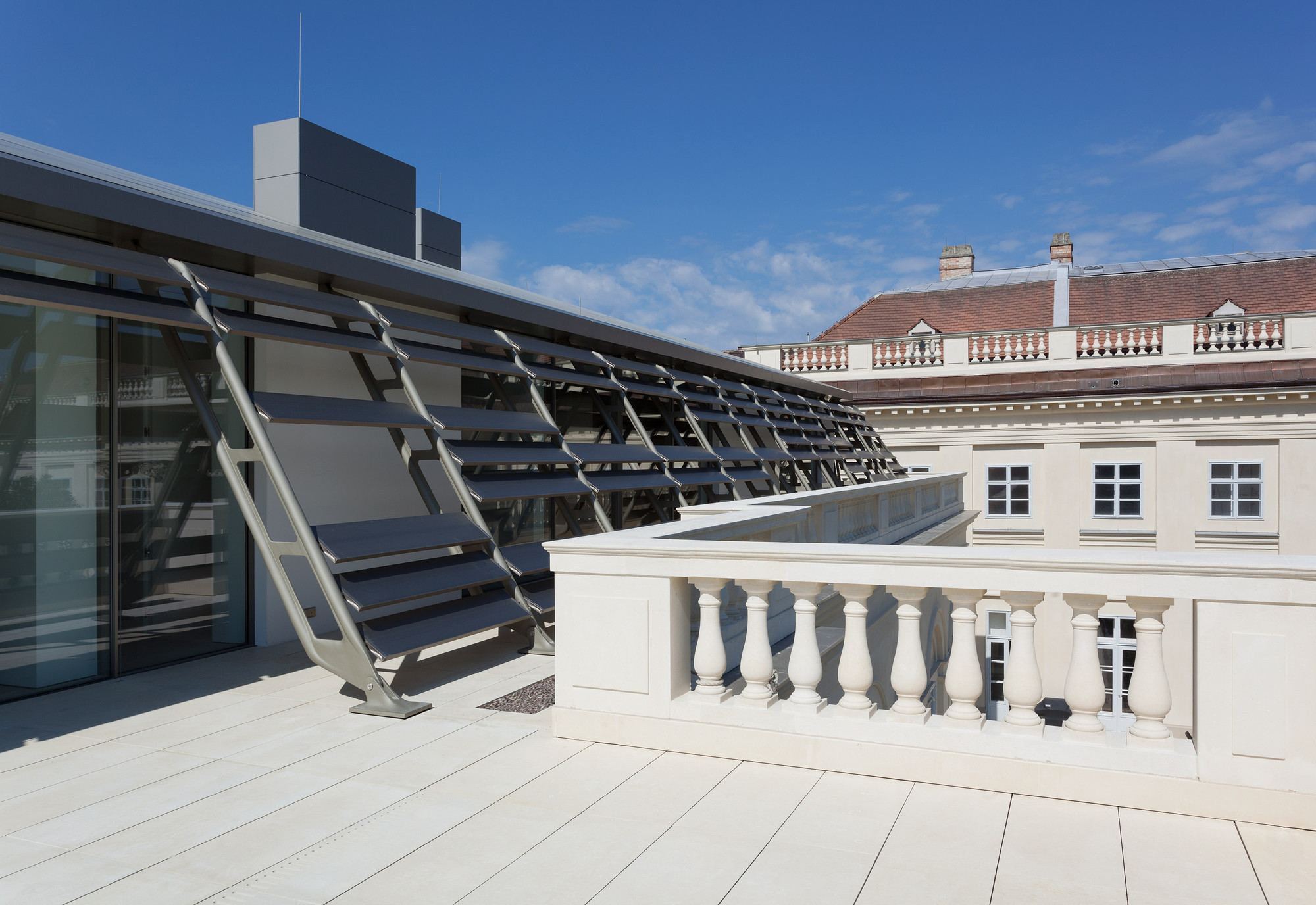

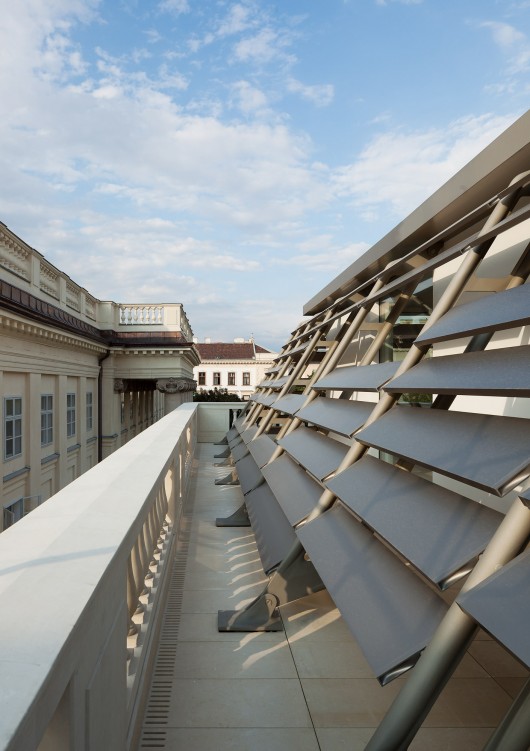

The new aluminium roof envelope is supported by a steel truss system articulated by a series of Vierendeel trusses in alignment with the existing building. The penthouse apartment is surrounded by terraces and incorporates vertical full height glazing allowing a transparency with integrated sun protection fins to provide solar control. The roof sun protection made from extruded aluminium fins provide shading and framing different degrees of exterior views. The primary constructive structural roof element is a cast steel support adding plasticity in dialogue with the surrounding empire style balustrade.

© Vera Subkus

The ground floor is primarily a 6 meter high art gallery space with two larger spaces connected by the insertion of a new second level gallery space spanned between two free-standing angled concrete slabs. The newly created reinforced organic concrete staircase is sleek in appearance due to the tapered structural form. A series of 3D milled moulds were used to create the complex free form geometry and providing an elegance to the vertical form without a physical connection to the wall support adding a lightness to the structural shape through light and shadow articulation.

© Vera Subkus

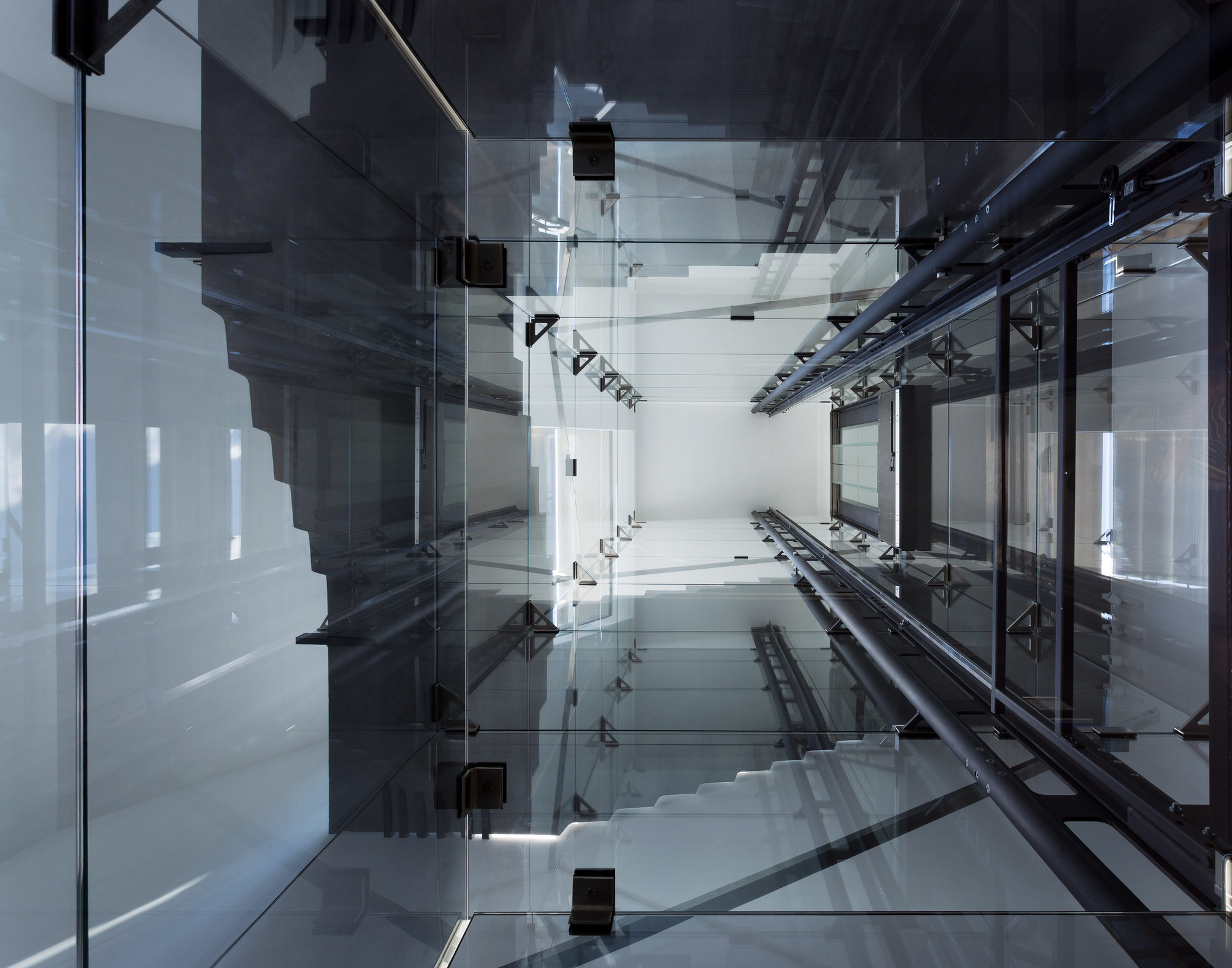

The 13.7m main elevator shaft is encased with self-supporting glass panels with an angled jointed steel plates to increase an overall lightness and transparency. The interior cabin is black glass on three sides and a glass ceiling to enhance the vertical experience connecting the existing historic spaces with the contemporary rooftop spaces overlooking the central park and adjacent buildings.

Floor Plan
