Craigieburn Bypass / Tonkin Zulaikha Greer + Taylor Cullity Lethlean

© Peter Hyatt

Architects: Taylor Cullity Lethlean + Tonkin Zulaikha Greer
Location: Hume Freeway, Melbourne VIC,
Design Team: Peter Tonkin, Neil Mackenzie, Heidi Pronk, Kon Vourtzoumis, Richard Healey-Finlay
Landscape Architecture: . Artist: Robert Owen
Photographs: Peter Hyatt

© Peter Hyatt

From the architect. Sound walls and road furniture’ for a new 32km stretch of freeway linking the Hume Highway with the Melbourne Ring Road were designed in association with Landscape Architects Taylor Cullity Lethlean.  Artist and sculptor Robert Owen was also creatively involved in the concept design and modelling of all the elements.

© Peter Hyatt

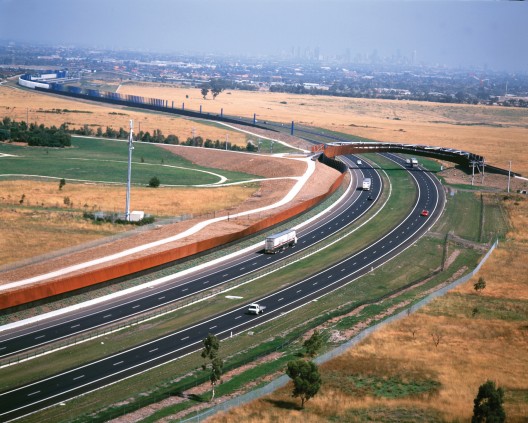

The project was designed to be experienced at a freeway speed of 110km per hour.  It includes three series of sculptural sound walls, a pedestrian bridge and a set of design parameters for road bridges, crash barriers and retaining structures.

© Peter Hyatt

The main series of walls by Tonkin Zulaikha Greer total over 2 kilometres in length, and are made from facetted austenitic steel sheets modelled in simple concave and convex folds to produce a gently undulating wave of steel floating on a recessed dark concrete base.

© Peter Hyatt

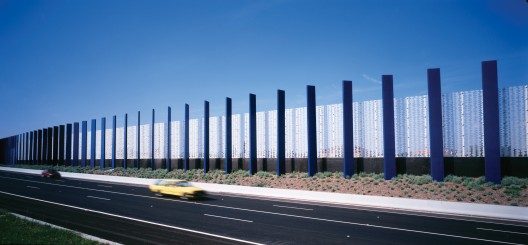

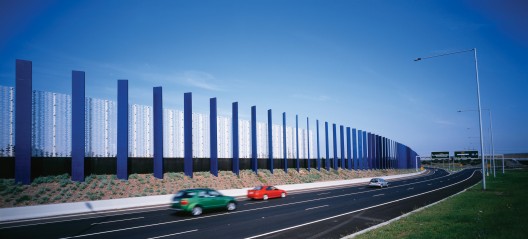

A second series of walls by Taylor Cullity Lethlean, are translucent and transparent, preserving light and views from residential areas.  These are edge-lit acrylic, sandblasted with a digital pattern and overlaid with coloured precast concrete blades.  The third series, by Tonkin Zulaikha Greer, build on the existing landform with dramatic earth sculpting. The use of gabions and heavily planted earth berms achieve the required sound control.

© Peter Hyatt

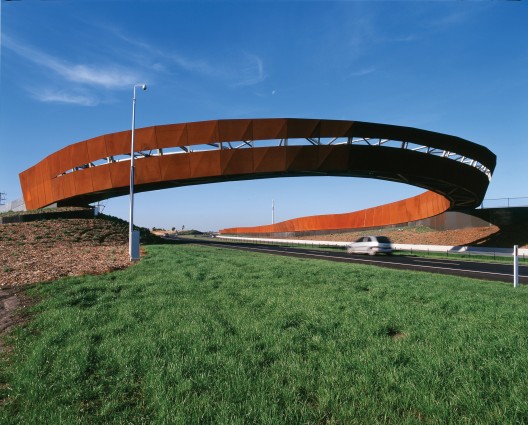

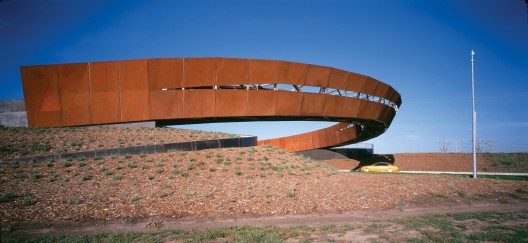

A major element of the work was a new pedestrian bridge, which was designed as a gateway to the distant city of Melbourne, visible on the horizon.  The bridge, a complex curve in plan and elevation, is a tubular steel truss faced with the same austenitic steel as the main sound walls, which at this point appear to leap over the road in a gesture of welcome or farewell.
