Church(ita) / Supersudaka

1259015766-imgp0146

Architects: Supersudaka / Juan Pablo Corvalán & Gabriel Vergara
Location: Villa la Paz, Talca,
Collaborators: Pablo Sepúlveda, Jaime Pavez
Mosaic: Simón Fuentes / Simbiotika
Engineers: Cesar Moreira / Sigma Ingenieros
Project Area: 200 sqm
Budget: US $64,700
Project Year: 2006–2009
Photographs: Supersudaka

1259015730-imgp0142-664x1000 1259015913-imgp0180 1259015963-imgp0189 1259015982-p1020044

Next to one of the city of Talca’s harshest ghettos –Villa Las Americas- this Church in Villa la Paz serves not only as a place for religious cult, but it also embraces a social agenda in terms of a community program.

Because of the budget being extremely low only the Chapel could be built. Consequently its configuration is crucial to maintain and promote the social complementary program such as communal meeting rooms and small library.

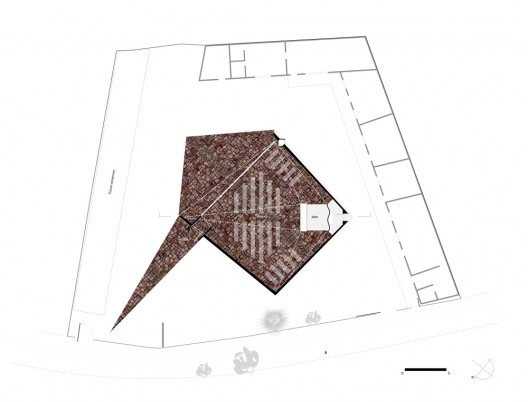

floor plan
floor plan

As the neighborhood originates from an informal settlement, the site geometry results from an addition of irregular parts, like a fractal sequence. This reigning geometry is used to insert the small chapel by the torsion of a regular cubic volume avoiding front and rear facades hierarchies. From this arrangement the actual and upcoming social program in the perimeter is allowed and integrated in a centrifugal courtyard display.

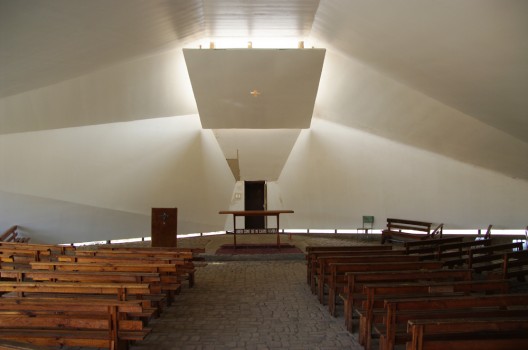

1259015950-imgp0188

As an optimistic gesture the classical cross plan of a church becomes a star inspired chapel: light in darkness.

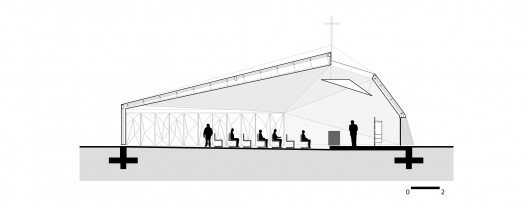

section
section

The project’s and layered panel -very economical- construction system is triangulated to optimize the structure to hover the interior space without columns but also permitting a 15m long opening to the interior courtyard for highly attended festivities such as Christmas.

The technical and spatial qualities are more closer to a covered plaza than an enclosed building.

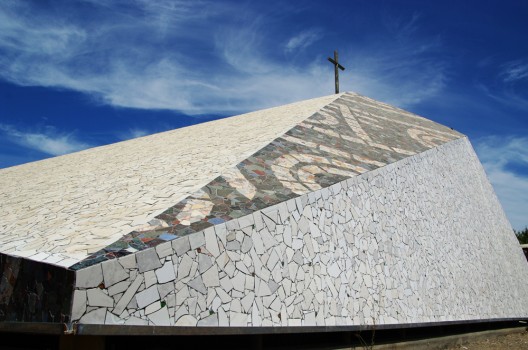

1259015752-imgp0145

Since the passing neighbors constantly throw stones, a ceramic-mosaic finish by visual artist Simon Fuentes acts as an easy to repair, cheap, already broken wrapping, which also follows a millenary religious technique. That is Church(ita).

Cite: "Church(ita) / Supersudaka" 09 Dec 2009. ArchDaily. Accessed 30 Oct 2014. <http://www.archdaily.com/?p=41900>
