‘Flying Saucer’ Condominium Proposal / 5468796 Architecture

  • 28 Apr 2013
  • by
  • mini Residential
©

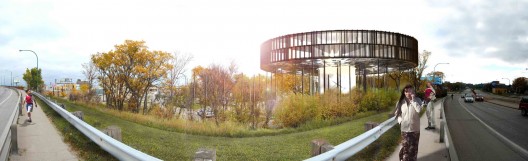

Set for completion in 2014, ’s “Flying Saucer” condominium project 62M, designed by -based studio 5468796 Architecture, will occupy the corner of MacDonald Avenue and Waterfront Drive, close to the Exchange District. Named after its address, 62M will be a two-storey, circular building lifted up on 35-foot stilts. Its circular design is spatially efficient and will provide each unit with a view. As a whole, the 360° plan provides the widest possible perimeter for glass with the smallest amount of exterior envelope to construct. More images and architects’ description after the break.

© 5468796 Architecture

The project, which commenced in March, just recenlty secured financing for the project after pre-selling 50% of the 40 units in the $4.5-million complex. All 40 units will have identical, pie-shaped layouts that simplify assembly. Each 610 s.f. suite will be arranged so that the entry and utility spaces will occupy the narrow end, closest to the circulation core. This configuration frees the remaining square footage for a flexible, open living area that culminates in an expansive wall of floor to ceiling glass.

© 5468796 Architecture

“We came up with the circular design and pie-shaped units to create a very efficient building and floor plan. Then we raised the building in the air to give every occupant a fantastic view,” says 5468796 Architecture partner Johanna Hurme.

© 5468796 Architecture

At ground level, 20 supporting columns spaced between alternating pairs of parking stalls will form a ring just inside the building’s perimeter. The columns’ thinness will be a clear counterpoint to the band of housing, emphasizing the weight and mass of the building floating above.

© 5468796 Architecture

The landscape design is conceived as a sea of greenery surrounding the building, leaving an open, cloister-like volume beneath the soffit. The garden is comprised of 62 Jack Pines set within a bed of mixed pinecones. Rows of ferns will be planted between the pines, and a series of pinecone-shaped planting beds will be found amidst the trees and around the
central elevator and lobby core.

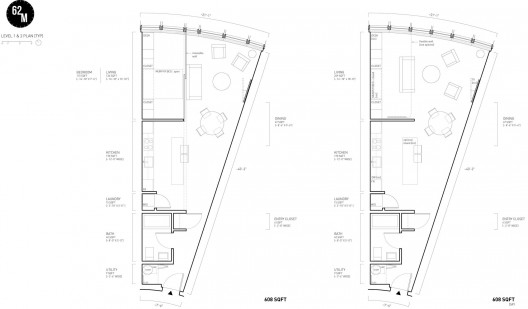

level 1 & 2 plans

The units are priced between $195,000 and $215,000, depending on the view. Adjacent suitescan also be combined horizontally or vertically for larger one or two storey spaces. Thus far, buyers have included both first-time homeowners and investors with the intention of renting.

Architects: 5468796 Architecture Inc.
Landscape Architect: Atelier Anonymous
Client: Green Seed Development Corporation
Location: Winnipeg, Manitoba
Landscape Design: Atelier Anonymous
Project Area: 27,000 sqft
Unit Size: 610 s.f.
Project Budget: $4.5M CDN
Unit Price: $195,000 and $215,000 CDN
Projected Completion: Spring, 2014
