W12 – Real Time Control Building #3 Proposal / gh3

  • 24 Dec 2012
  • by
  • Infrastructure mini
Courtesy of

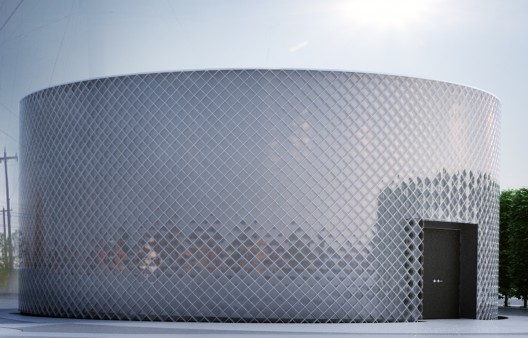

Located on the corner of 84th Street NW and Jasper Avenue, on the northern bank of the North Saskatchewan River and just east of Edmonton’s downtown core, the W12 – Real Time Control Building #3 exploits the potential to become a landmark building, playing a crucial role in punctuating open public space along the river’s edge. Designed by gh3, the building will be highly visible from the north, south and east, seen from a series of vantage points ranging from distant to near. The project is an opportunity to invest in the design of the plant enclosure while celebrating the importance of municipal infrastructure and recognizing the role infrastructure buildings have in shaping the built fabric of the city. More images and architects’ description after the break.

Courtesy of gh3

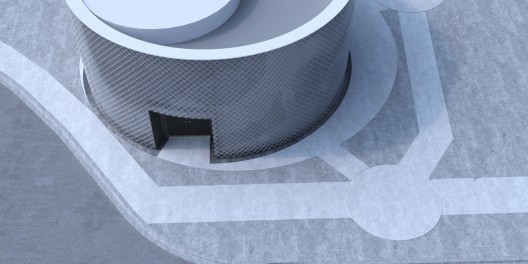

The engineering of the facility recognizes the dynamic loading of urban storm and wastewater and as such represents state-of-the-art handling and treatment of urban water for the City of Edmonton. Correspondingly, the architecture makes apparent the engineering occurring below the ground – to this end the form of the main shaft is notionally extruded to make the circular enclosure for the plant equipment and the secondary shafts and out and in flow tunnels are telegraphed to the surface- imbuing the site with an interpretive strategy and signaling that RTC#3 is part of a larger and complex system.

Courtesy of gh3

The proposed building will accommodate equipment that controls the flow control gates in the shaft below. It is one part of a larger strategy to reduce untreated runoff and sewage flowing into the North Saskatchewan River. The 100m2+ building is positioned above the 6 metre diameter main shaft. In addition to the main shaft the building contains related ancillary spaces. Adjacent to the main shaft is a control room specifically dedicated to flood gate control and equipped with gas monitoring and ventilation equipment.

Courtesy of gh3

This room and adjacent service room are also equipped with a removable roof for the maintenance of the floodgates. The building will also accommodate: gate actuators; a generator room equipped with noise control, ventilation, control panels, and a motor control centre; a small washroom; and base building mechanical rooms.

Courtesy of gh3

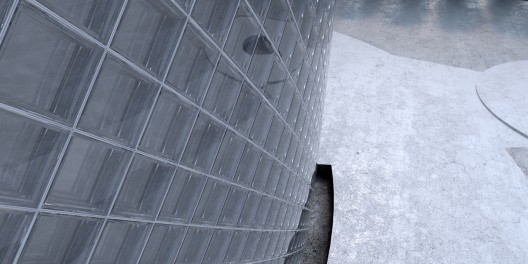

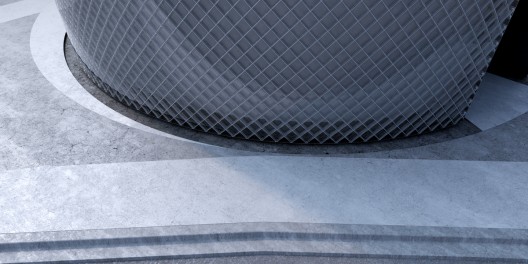

The site is largely hard surface to accommodate service vehicles and to provide lay down areas for the 2 removable roofs. Site water is directed to a gutter that surrounds the building from which it is collected and discharged into the main shaft.

Architects: gh3
Location: Edmonton, Alberta,
Team: Pat Hanson, Diana Gerrard, Raymond Chow, Byron White, John McKenna
Structural: Chernenko Engineering
Mechanical: Vital Engineering
Electrical: Vital Engineering, Associated Engineering
Civil: Vital Engineering
Landscape: gh3
Envelope Consultants: Best Consulting Martin Gerskup Architect Inc.
Client: City of Edmonton
Building Area: 115SM
Budget:$1.4M
Expected Completion Date: 2013
