Safe Haven Bath house / TYIN Tegnestue

  • 01:00 - 17 July, 2009
Safe Haven Bath house / TYIN Tegnestue
Safe Haven Bath house / TYIN Tegnestue

Safe Haven Bath house / TYIN Tegnestue Safe Haven Bath house / TYIN Tegnestue Safe Haven Bath house / TYIN Tegnestue Safe Haven Bath house / TYIN Tegnestue +16

  • Architects

  • Location

    Ban Tha Song Yang 63150, Burma
  • Architects

    TYIN Tegnestue
  • Project Team

    Andreas Grøntvedt Gjertsen, Yashar Hanstad
  • Client

    Safe Haven Orphanage
  • Budget

    22.500 NOK (Approx. 3,300 USD)
  • Project Year

    2009

From the architect. TYIN tegnestue is a non-profit organization working humanitarian through architecture. TYIN is run by five architect students from NTNU and the projects are financed by more than 60 Norwegian companies, as well as private contributions.

Through the course of the last year TYIN has worked with planning and constructing small scale projects in Thailand. We aim to build strategic projects that can improve the lives for people in difficult situations. Through extensive collaboration with locals, and mutual learning, we hope that our projects can have an impact beyond the physical structures.The new bathhouse covers basic needs like toilets, personal hygiene and laundry. A simple structure was already built and became the framework for the project.

Project Description

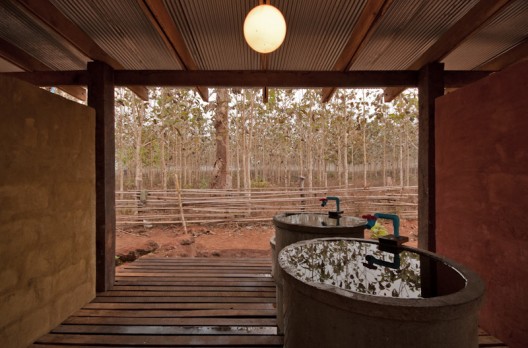

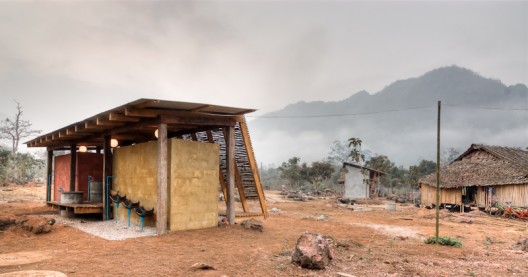

The most intimate functions are located in the two separate parts of plastered concrete blocks. In the central area you find a space for bathing that opens up towards the vast teak plantation. The bathing area is only partly privatized, adapted to Karen culture. A tilted facade of bamboo covers the front of the building and creates a passage, tying the functions together.

A great challenge in this project is that sewage and drainage had to be dealt with on-site and handle large amounts of water during the rainy season. The waste from the toilets passes through pipes into buried. Concrete tanks that are drained from the bottom and sides. Gravel and wooden floors are easy to keep clean and dry, and all wet rooms are drained by using layers of stone and gravel.

The existing sanitary facilities at Safe Haven Orphanage, as well in the district in general, are narrow, dark and have concrete flooring that accumulates water and dirt. With this bathhouse we have tried alternative solutions that hopefully will be an important asset in the future development in the district. The climate of northern Thailand makes good personal hygiene essential to prevent diseases, especially for small children. With this bathhouse TYIN wanted to create well functioning and dignified facility for personal hygiene.
