House BM / architecten de vylder vinck taillieu
© Filip Dujardin
Architects: architecten de vylder vinck taillieu – Jan De Vylder, Inge Vinck, Jo Taillieu in collaboration with Joris Van Huychem
Location: Ghent, Belgium
Design Team: Jan De Vylder, Inge Vinck, Jo Taillieu, Joris Van Huychem, Sander Rutgers, Lauren Dierickx
Area: 304 sqm
Completion: 2011
Photographs: Filip Dujardin
© Filip Dujardin
Starting point is a plot with trees and a little gingerbread house on the edge of the site.
The key document is a survey map with the exact position and diameter of every tree.
© Filip Dujardin
The building is at odds to and separate from the wood.
The wood runs through, around, and in the house.
The ground is left untouched.
The building must be only a part of the whole.
The building can distance itself and look back at itself through the wood.
© Filip Dujardin
Structurally, the house is made up of two concrete slabs, kept at a distance from each other by concrete plates that also dictate the internal division.
Where a larger span is needed, a supporting chimney breast is used.
© Filip Dujardin
A foundation on wells ensures that roots can go their own way freely underneath the house.
Because the lengths to be spanned by the roof slab are greater on the outside than on the inside, a difference in slab thickness is possible, with natural drainage towards the inside as a consequence.
The large gutter takes water and leaves downwards.

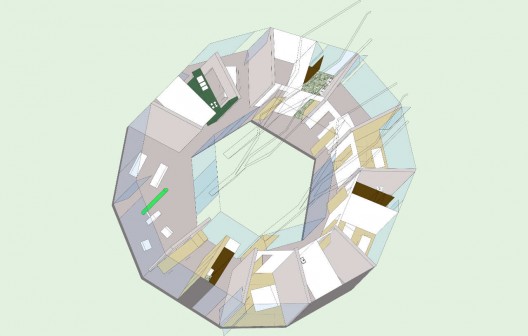

axon
Structure is finishing. The drawing of the shuttering is the diagram of the texture. An alternation of flat shuttering, shuttering with sheets of plywood, and board shuttering defines and characterises the different spaces.

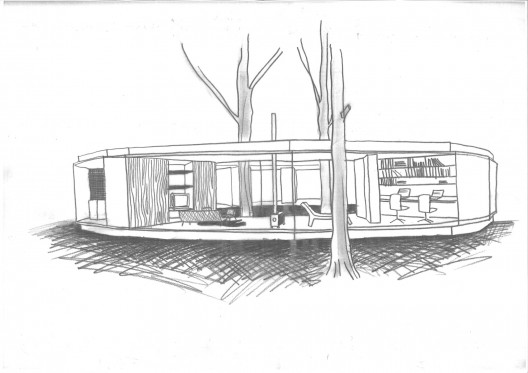

exterior sketch
18 windows. The facade is made up of windows.
Windows that both mark and cancel out the transition between outside and inside.
One window is on top of another; the kink is emphasised by the thickness of the next window-frame.
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- © Filip Dujardin
-
- axon
-
- exterior sketch
-
- interior sketch
-
- kitchen sketch
-
- floor plan
-
- site plan
-
- structure floor plan
