Pierscape / James Corner Field Operations Team

Courtesy of

James Corner Field Operations (JCFO) is one of five shortlisted teams invited to participate in an international design competition to renovate and reactivate ’s landmark Navy Pier. Unveiled to the public last month, the goal of the intervention is to refocus the experience of the pier to the lakeside. This is an opportunity for the city to reassess what the waterfront means to an urban center and the character of its identity.

Courtesy of James Corner Field Operations

The JCFO Team focused on reconnecting people to the theatrical and social pleasures of the dock.  Their challenges – Character, Clarity, and Cadence – produced solutions of connectivity, linkage, image, identity and proximity – all in relationship to the water.  The design proposal focuses on the sensory experience, engagement and enjoyment of lakefront activity.

On an Urban Scale …

Courtesy of James Corner Field Operations

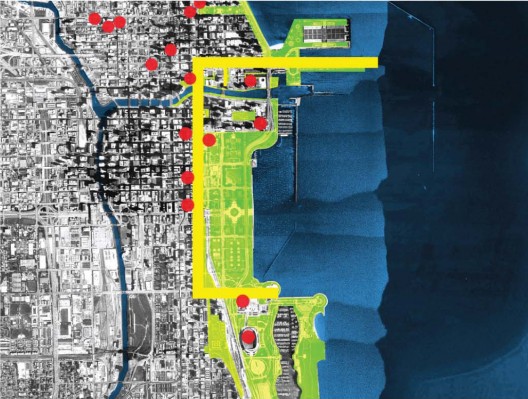

CULTURE MILE + THE CITY LAKE MILE | In this scheme, the docks are viewed as social links back into the city. The South Dock is the organizing promenade that connects west back into the city to “Culture Mile” along Michigan Avenue. This passage would be addressed with plantings, furnishings, lighting and art work to make for an attractive and leisurely walk between the city and the lake.

Courtesy of James Corner Field Operations

A NEW HUB | The pier will function as a network that will provide connection between existing programs and lakefront parks, Grant Park and Millennium Park.

Courtesy of James Corner Field Operations

“PLUGGING IN” | A long promenade that extends from within the city onto the water will have a variety of spaces that will be able to engage artists’ works, pedestrians and cyclists for a range of uses for the space.

On the scale of the site …

Courtesy of James Corner Field Operations

PIERSCAPE | New programs and event spaces are tied into the existing functions of the buildings on the site, pulling their internal programs outward. The activities on the Pierscape change subtley from sheltered and vertical to open and sublime as it approaches Lake Michigan.

Courtesy of James Corner Field Operations

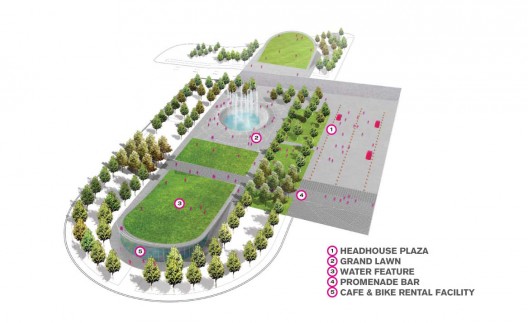

GATEWAY PARK “The Front Porch” | The threshold of the arrival onto the pier, Gateway Park is a destination in itself as it can accomodate large scale festivals, events, performances, cultural programs, public art works, among other social functions. Within its organization it includes a Plaza, Grand Lawn and Promenade, all of which alter and choreograph how people move through, participate in and enjoy the space due to its flexibility. Street paving, furnishings, plantings and fountains invigorate this space for activity and flow. Below the lawn, light commercial activity engages passers-by and gives visitors respite from the cold in winter months with a cafe.

Courtesy of James Corner Field Operations

SOUTH DOCK “The Bar Promenade” | The dock provides the primary source of commercial activity for the urban design. It must accommodate a continuous flow of people with different speeds and purposes. To reduce the clutter often associated with these spaces, the team made some clear organizational choices: basic material of aggregate concrete, linear bands of circulation paths along the length of the dock, and – to add variation – jogging the lines of circulation to transition people from program to program smoothly, simple and effective signage and furniture, and large and open pavilions for shade, event, play and cafe, welcoming spontaneous activity.

Courtesy of James Corner Field Operations

CRYSTAL GARDEN “The Magic Room” | This major indoor environment will be active all year-round with exotic plants, hanging gardens, birds, fish and ponds. The idea here is to create a must-see destination in Chicago.

Courtesy of James Corner Field Operations

PIER PARK “The Fun Room” | This space of play and motion will have gardens, restaurants, sculpture, amusement park rides, and views the Pier through elevated platforms.

Courtesy of James Corner Field Operations

EAST END PARK“The Lake Room” | The major attraction of this ultimate point on the dock is the horizon and a view over Lake Michigan. To make this point a destination, it will include a Lake Room, Floating Pool, Lakeview Steps and Beer Garden.

Courtesy of James Corner Field Operations

NORTH DOCK “Hidden Nature Ecotone” | Along the North Dock JCFO proposes a “hidden nature” ecotone – a hidden habitat of algae, crustaceans, rockfish and birds.

February 1st PIERSCAPE Presentation:

Lead / Urban Design / Landscape Architecture: James Corner Field Operations
Architects: nArchitects
Artist/ Light Installation: Leo Villareal
Identity, Communication and Graphic Design: Bruce Mau Design
Lighting Design: L’Observatoire International
Water Feature Design and Engineering: Fluidity
Green Wall and Botanical Specialist: Patrick Blanc
Grass Specialist: John Greenlee & Associates
Event Planning: Chris Wangro
Local Landscape Architecture: Terry Guen Design Associates
Art Curation and Planning: Ed Marszewski
Industrial Design: Billings Jackson
Structural & Environmental Engineering: Buro Happold
MEP & Civil Engineering: Primera Chicago
Real Estate & Financial Strategists: HR&A Advisors
Public Space Management: ETM Associates

View the entire proposal here. Be sure to check out Chicago Navy Pier / Team X, led by Xavier Vendrell StudioPierESCAPE / Aedas Architects, Davis Brody Bond and Martha Schwarz Partners and Pier+ / AECOM and BIG. Watch for !melk’s proposal tomorrow!
