Multi-Level Apartment / Peter Kostelov

  • 01:00 - 20 October, 2011
Multi-Level Apartment / Peter Kostelov
Multi-Level Apartment / Peter Kostelov, © Alexey Knyazev
© Alexey Knyazev

© Alexey Knyazev © Alexey Knyazev © Alexey Knyazev © Alexey Knyazev +29

From the architect. Characteristic of this apartment is its inner space and cubic capacity. It is located on the top 18th floor. Initially it was a two level apartment of total houseroom of 258 sqm.

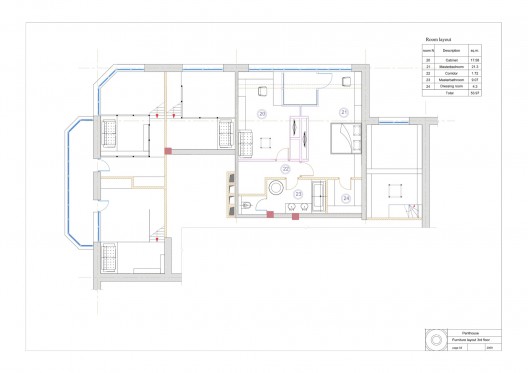

Floor Plan
Floor Plan

As for the first level it was quite common one: three meter standard height of ceiling and a houseroom of 69 sqm. The second level houseroom was larger 189 sqm and the height of ceiling varied from 3 to 8 meters in different zones. Surely these unique space peculiarities caused project direction: to not only exploit maximum of this nonstandard extreme height but to make multi-level space.

© Alexey Knyazev
© Alexey Knyazev

The owner of the apartment approved the idea, moreover it was requested that each member of the family should have extra space so that everyone including 3 children of different age and gender could have their private space for comfortable living. Central part of the apartment on the second level was as large as 60 sqm and more than 8m high. The space was vertically divided into two levels by the newly made third level.

© Alexey Knyazev
© Alexey Knyazev

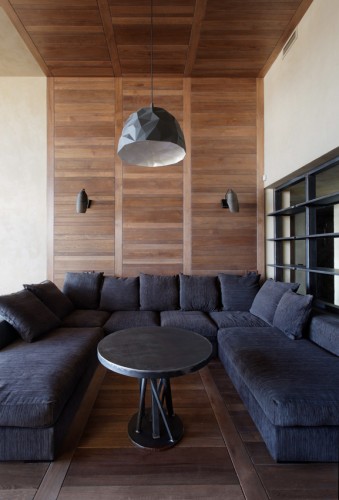

After making necessary calculation on the thickness of overhead cover 0,5m was put as required space for structural beams, placing ventilation and final trimming. The highest ceiling 4,5m was chosen for the living room located at the lower part of the second level. The upper part on the second level got 3m, where a bedroom, a bathroom and a study room are located. Thus the third level added 54 sqm to the apartment.

© Alexey Knyazev
© Alexey Knyazev

The covers between second and third floors have two clear spaces. One was left for the staircase, while the second one, the closest to the window, appeared to join two spare spaces of the second and third level, the flow of light of which makes partially two-tiered space.

© Alexey Knyazev
© Alexey Knyazev

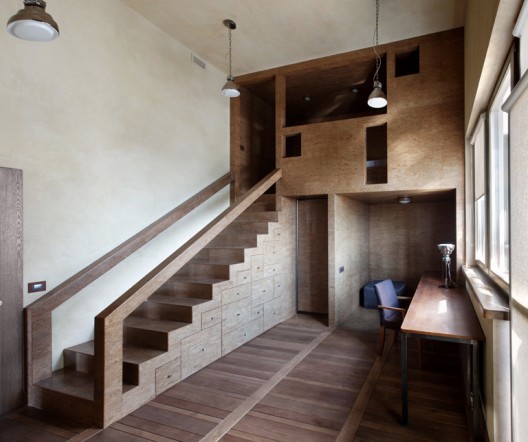

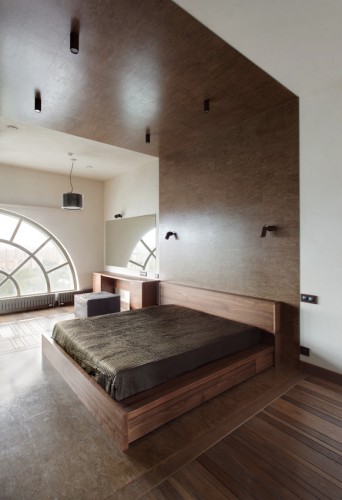

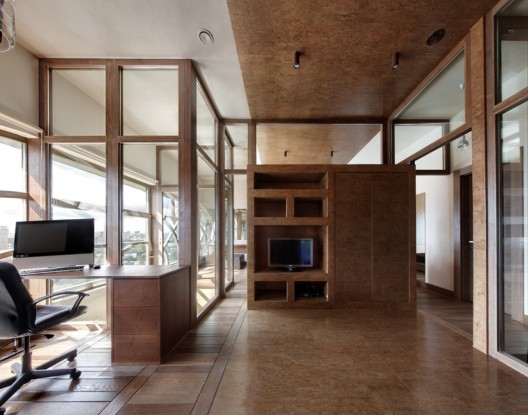

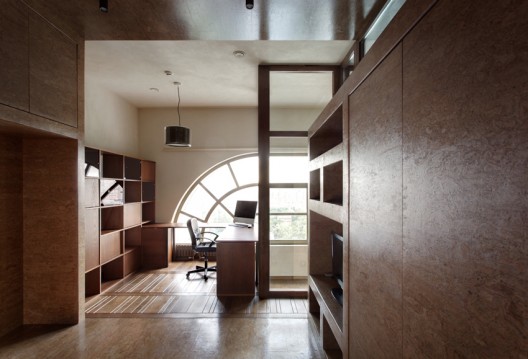

On the third level a dome made by glass partitions separates a bedroom and a study room, which allows the light to spread evenly. The floor space of 9 sqm was added to 20 sqm of the lower level. Consequently the floor space of each nursery room got 30 sqm located on two levels. A home library ceiling in the right –hand side of the apartment is 4,4 m. The same as in children’s room the second level was made here which enlarged it to 8 sqm All in all 35 sqm was added to houseroom. Rearranging turned a duplex apartment into four-level apartment having added to it 90 sqm of extra house room (from 258 sqm up to 348 sqm)

© Alexey Knyazev
© Alexey Knyazev

Nearly all pieces of furniture (except settees and beds) were specially designed. The owners gave preference to warm and light colors. In contrast to upholstering the furniture was made from natural processed metal: dinner and low tables, bookstands, stools, shelves.

© Alexey Knyazev
© Alexey Knyazev
Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Multi-Level Apartment / Peter Kostelov" 20 Oct 2011. ArchDaily. Accessed . <http://www.archdaily.com/176584/multi-level-apartment-peter-kostelov/>
Read comments

24 Comments

jprati · May 09, 2012

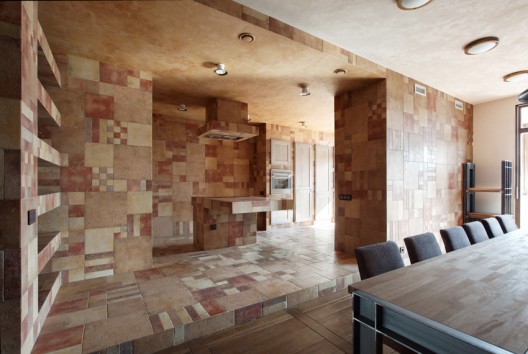

Leave it to a bunch of blogging architects to point out all of the negatives and none of the positives. Sure there are some odd decisions in the kitchen, particularly in the tile patterning (not sure about tiles on a vent hood), but there is something to be said for the clean playfulness of the millwork in these spaces. Personally I like the colors, and the fact that this is not another mindless white box, with its noze high in the air, as if it requires any actual creativity to shed some light within a platonic form and paint it white--as if it is better to not try and not fail. I say it is better to try, to explore new aesthetics, and to have some successes and some failures.
