Hemeroscopium House / Ensamble Studio

Sep 2011

Uploaded by Nico Saieh — Filed under: Houses ,Selected ,Structures , Concrete, Ensamble Studio, Spain, Steel

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Ensamble Studio
Location: Las Rozas, Madrid, Spain
Principal in Charge: Antón García- Abril
Collaborators: Elena Pérez, Débora Mesa, Jorge Consuegra, Marina Otero, Ricardo Sanz
Technical Architect: Javier Cuesta
Promotor: Hemeroscopium
Contractor: Materia Inorgánica
Project year: 2005-2008
Constructed Area: 400 sqm
Photographs: Ensamble Studio

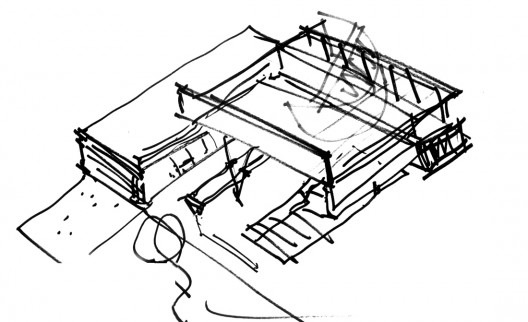

sketch

For the Greek, Hemeroscopium is the place where the sun sets. An allusion to a place that exists only in our mind, in our senses, that is ever-changing and mutable, but is nonetheless real. It is delimited by the references of the horizon, by the physical limits, defined by light, and it happens in time. Hemeroscopium house traps, a domestic space, and a distant horizon. And it does so playing a game with structures placed in an apparently unstable balance, that enclose the living spaces allowing the vision to escape. With heavy structures and big actions, disposed in a way to provoke gravity to move the space. And this way it defines the place.

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2$

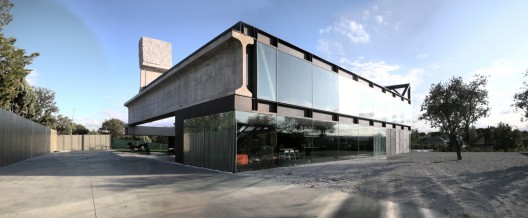

east elevation

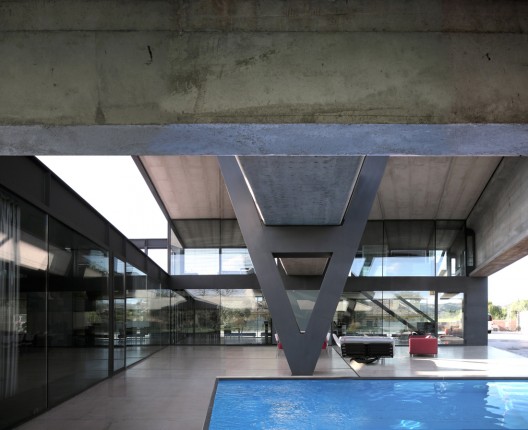

The order in which these structures are piled up generates a helix that sets out from a stable support, the mother beam, and develops upwards in a sequence of elements that become lighter as the structure grows, closing on a point that culminates the system of equilibrium. Seven elements in total. The design of their joints respond to their constructive nature, to their forces; and their stresses express the structural condition they have. By the way this structure is set, the house becomes aerial, light, transparent, and the space kept inside flows with life. The apparent simplicity of the structure’s joints requires in fact the development of complex calculations, due to the reinforcement, and the prestress and post-tension of the steel rods that sew the web of the beams.

It took us a year to engineer but only seven days to build the structure, thanks to a total prefabrication of the different elements and a perfectly coordinated rhythm of assembly. All of our effort oriented to develop the technique that would allow to create a very specific space. And thus, a new astonishing language is invented, where form disappears giving way to the naked space. Hemeroscopium house materializes the peak of its equilibrium with what in Ensamble Studio we ironically call the “G point”, a twenty ton granite stone, expression of the force of gravity and a physical counterweight to the whole structure.

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: © Ensamble Studio

: model

: model

: model

: model

: model

: model

: model

: model

: model

: model

: sketch

: sketch

: sketch

: sketch

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 ground floor plan$: ground floor plan

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 second floor plan$: second floor plan

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 east elevation$: east elevation

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 north elevation$: north elevation

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 south elevation$: south elevation

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 west elevation$: west elevation

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 section 01$: section 01

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 section 02$: section 02

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 axo$: axo

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 structure diagram$: structure diagram

: facade details 01

: facade details 02

: facade details 03

: facade details 04

: facade details 05

: facade details 06

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 carpentry details 01$: carpentry details 01

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 carpentry details 02$: carpentry details 02

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 carpentry details 03$: carpentry details 03

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 carpentry details 04$: carpentry details 04

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 1bn beam details$: 1bn beam details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 2bn beam details$: 2bn beam details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 3bn beam details$: 3bn beam details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 artesa beam details$: artesa beam details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 crowning stone details$: crowning stone details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 E pillar details$: E pillar details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 reversed artesa beam details$: reversed artesa beam details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 vierendel truss details$: vierendel truss details

$\Servraid5ensambleAA PUBLICACIONES+ENVIADOrevistas libros2 warren truss details$: warren truss details

Cite:
Saieh , Nico . "Hemeroscopium House / Ensamble Studio" 21 Sep 2011. ArchDaily. Accessed 07 Feb 2012. <http://www.archdaily.com/16598>

Comments (40)
Tweets (14)
Links to this entry (12)
