Green Building / Forward

Courtesy of Forward

The project presented here – Green Building: Madan Technology Center – was planned by the Forward architectural firm following a commission by the Association of the / Setúbal Science and Technology Park – Madan Parque.  The site is located in , on a site near the Faculty of Sciences and Technology – Nova University and is designed to host the Company Innovation program and a Data Centre serving the Lisbon and Tagus Valley region. Given its characteristics, the infrastructure shall serve as a pole of attraction for high technology companies in the context of an architectural proposal that is moving towards innovative solutions to the environmental issues of today.

More details on this project after the break.

Courtesy of Forward

The project strives to establish a relationship between the building and its context, the artificial and the natural, hoping to reflect a facility that maintains a dialogue with its landscape and the new environment paradigms while exploring technological solutions.  This responds to a functional program with appropriate solutions while simultaneously introducing differentiating factors that make the architectonic object a contemporary and innovative proposal capable of ensuring its status as a benchmark in energy efficiency and sustainability. This building aims to guarantee its classification as a “Nearly Zero Energy Building”.  This building is programmed to function as a Data Center, in the basement, as well as a cultural facility on the remaining floors.  There are various service areas made up of offices, meeting rooms and a multimedia amphitheatre in addition to various support structures.

Courtesy of Forward

The specificity of the set stipulations, in both architectonic terms and as a benchmark facility are demonstrated, for example, by the concrete flowerbeds with recycled aggregates, which, given that this is a region of high seismic risk, endow strength and support to the building through their integration into its structural network and endowing a unique character on the inner spaces and stamping them with the rhythms of fullness and emptiness that qualify the environment. Furthermore, their role stretches far beyond any formal artistic intention.  The flowerbeds play a fundamental role in the energy performance of the building given that they serve a cooling purpose in summer due to the evapotranspiration effects of the plants that foster a favorable microclimate. They also contribute towards boosting the thermal stability of the building and shading the transparent beams. Given how the geometrical layout works simultaneously as a rainwater collection system to be later used for irrigating the surroundings and the building.

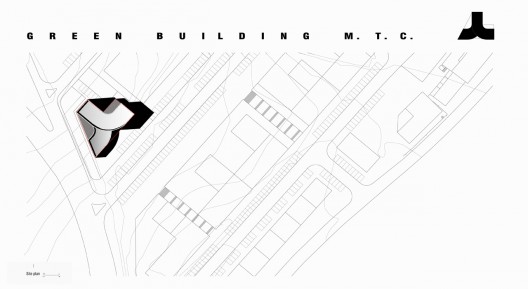

site plan 01

At the level of the Data Centre, there are unprecedented solutions incorporating cooling systems with recourse to subterranean water and the recovery of the heat produced by the equipment here for the building’s heating and water system and inclusively extending to supplying other buildings in the Madan Park complex. This recovery enables the energy efficiency of the Data Centre to be boosted and thus contributes towards sustainability and integrating a solution truly innovative in worldwide terms.

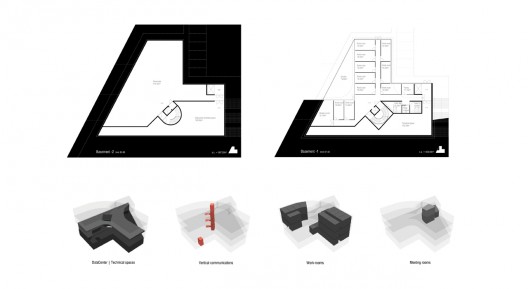

plan 01

Despite the demands inherent to infrastructures of this type, especially as regards to refrigeration, the energy efficiency targets set for the Data Centre contain the PUE<1. 45 index (the first ever in Portugal with this type of energy consumption) in conjunction with Uptime-Tier 3 certification of its performance levels. The building’s energy efficiency also includes, among other solutions, micro-generation through photo-voltaic panels, recourse to efficient solutions for equipment and the installation of LED lighting technology throughout the interior and exterior.

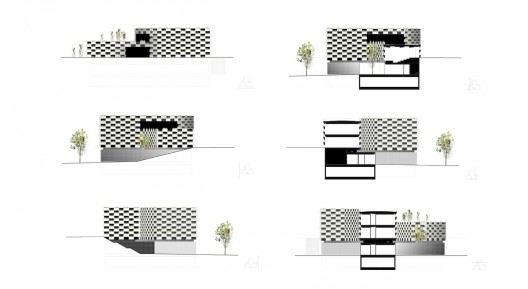

sections and elevation 01

As a sustainable building, the objectives extend to taking out LEED Certificate and ensure it becomes a reference in Portugal: Green Building would be the third in the country with this certification type and the first in the south of the country.  In addition, the solutions adopted for the buildings pre-empt all the regulatory requirements set out in European Union legislation for 2020 (Energy Performance Building Directive, recast, May 2010). The uniqueness of the program, allied with its guidelines deriving from the issues of energy efficiency and sustainability, ensure this building results from the combining of knowledge and professional skills that shall be indispensable to sustaining the balance between the built and the natural environments planned for the future.

Architects: Forward
Location: Almada, Portugal
Stucture and Service: P2S with Eng.º Carlos Lisboa
Project Area: 2.270,00m2
Project Year: 2011

Cite: Vinnitskaya, Irina. "Green Building / Forward" 13 Jul 2011. ArchDaily. Accessed 23 Jul 2014. <http://www.archdaily.com/?p=148429>
