Architects: Osterhaus McCarthy
Design architects: Miller Hull Partnership
Location: Chicago, USA
Interior design: Kara Mann
Project area: 5,200 sqm
Project area: 2010
Photographs: Becky Midden, Marty Peters

Conceived as a series of boxes containing the private family spaces (bedrooms and baths) and a free floating and open main level containing the shared family spaces. The main floor is a series of stepped planes, lifted up above a partial basement, that incrementally steps up and bridges over the rear yard to the garage roof deck. A day lit basement contains guest suites, home theater, and play area.

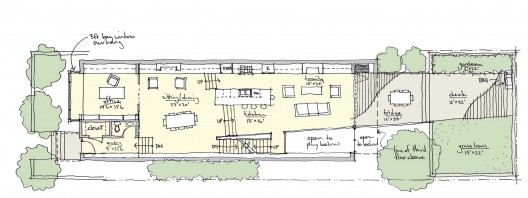

concept plan 01

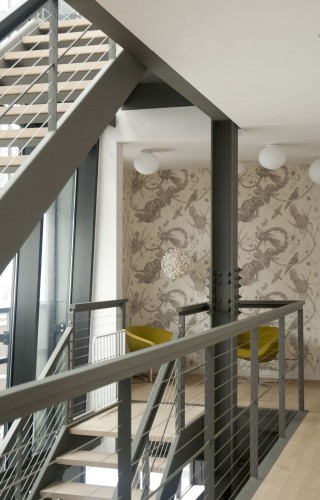

The approach was to use materials in appropriate ways – concrete and masonry where the building touches the earth, steel for height and span, and a light wood frame everywhere else, resulting in a hybrid system of steel primary members and wood secondary members. The design of the home sought to express as much of the steel and connections as possible.

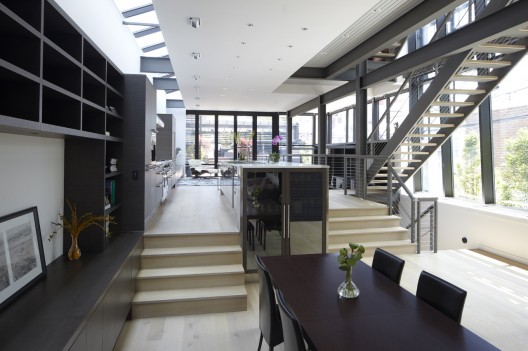

The dramatic Southern elevation is centered on a three story curtain wall with a perforated steel screen for privacy. On the main living level, a skylight runs the length of the home on the North elevation, maximizing the passage of natural light, despite the building on the lot directly adjacent. The interior and exterior spaces seamlessly engage each other from a wide spanning bridge connecting the main living area to the garage roof deck, making efficient use of this Chicago city lot. The main living level is centered around the kitchen, an elevated area that functions as the command center for the home. The living room comfortably sits on one side of the kitchen, while the dining room sits on the opposite side.

drawing

Dividing the dining room from a home office at the front of the house, are three 12 foot tall steel doors hung on sliding tracks from the ceiling. The doors are inlaid with glass portholes of varied sizes and fondly referred to by the home owners as “Swiss cheese” doors. They easily slide away into a pocket allowing them to completely open the office to the rest of the living area. The lower level contains a two story rear foyer with a 18 foot tall wall of casework that’s height stretches into the living room, creating shelving to display objects and art above and storage for coats, gloves, hats and boots below. The lower level also contains a playroom, two guest suites and a home theater. The upper level features the family’s 3 bedroom suites and a small study. The stairs leading up to the roof deck are encased in glass and open to a private roof top garden with dazzling city views.

: © Miller Hull Partnership

: © Miller Hull Partnership

: © Miller Hull Partnership

: © Miller Hull Partnership

: © Miller Hull Partnership

: © Miller Hull Partnership

: © Miller Hull Partnership

: concept plan 01

: concept plan 02

: west elevation

: south elevation

: north elevation

: section

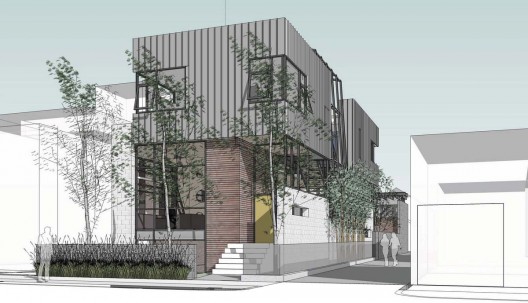

: drawing
