Ceiling Panels | 31/32/33 Panel | DAMPA

  • Available in

  • Use

    Interior, ceiling panels
  • Applications

    Residential, commercial, institutional, public space, sport venues, services
  • Characteristics

    Aluminium panel, Sound absorption class A, B and C, The ceiling can be delivered in all RAL- and NCS-colors or with digital print, acoustic felt is often chosen in black, but can be produced in all colors based on the project's needs
  • Sizes

    Standard sizes: 40 x 55 x 40 mm, 40 x 155 x 40 mm, 40 x 255 x 40 mm | Panel lengths: Min. 600 mm- Max. 6000 mm
  • Certification

    Fire classification B-s1-d0, corrosion class B (according to EN13964 table 8 and 9)

1 Product File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
DAMPA Logo

Contact manufacturer

DAMPA

DAMPA Logo

Contact manufacturer

DAMPA

More from DAMPA

Website Phone

More about this product

DAMPA® is a Danish company specialised in the development and production of acoustic steel and aluminium ceilings, as well as acoustic wall panels for the building industry, with sales exclusively in the European market.

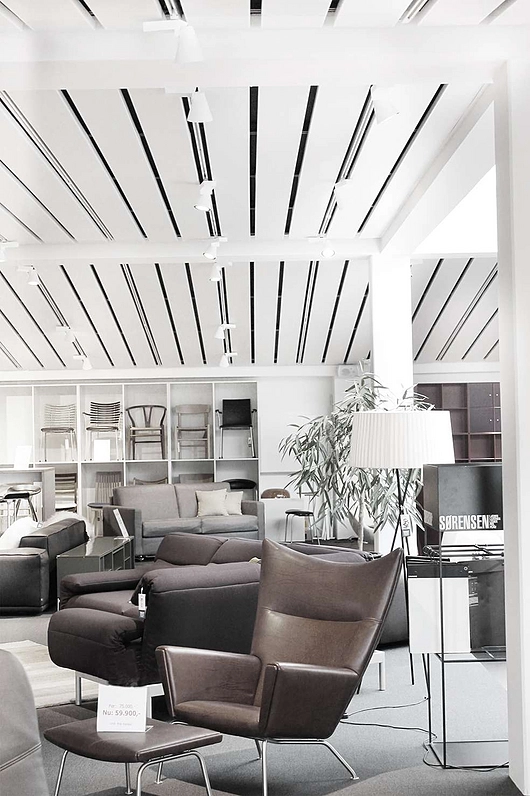

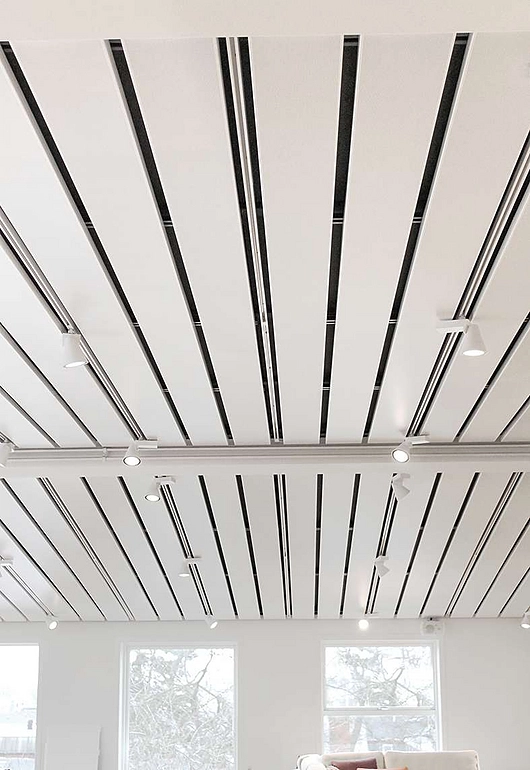

With DAMPA® 31/32/33 Panel users get an open ceiling system designed with a visible carrier system. The solution consists of three module sizes, that all fit into the same carrier system and create a linear look. Therefore, DAMPA® users can play with the various widths to create a unique ceiling.

The panels are available in three different widths: 55, 155 and 255 mm. With the possibility of mounting all the panels in the same carrier system, with a distance of 45 mm between each panel, opens up a creative playground where DAMPA users can create a ceiling with an expressive linear expression by combining the three widths.

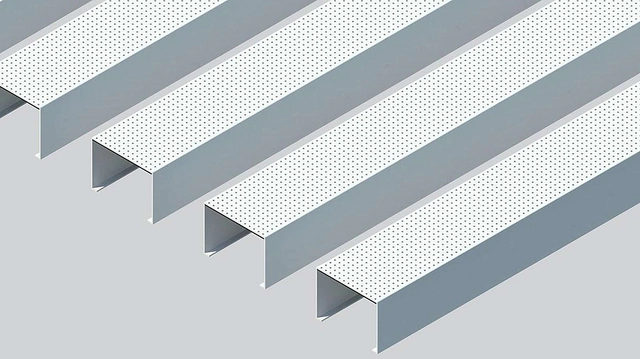

DAMPA® 31/32/33 gives users control over the colors of the ceiling. Make use of the metal's natural surface or choose from all RAL and NCS colors to achieve the desired expression. In addition, the option of perforations opens up additional design variations that add character and depth to the ceiling.

DAMPA® 31/32/33 Panel can be delivered in acoustic class A, B and C, so you are always guaranteed the best possible acoustic experience adapted to the specific use and room. In addition, light, ventilation etc. can be easily integrated to the panels.

The panels are mounted in a visible carrier system without the use of tools. There is a fixed interval of 45 mm. between each panel, and the panels can easily be dis- and remounted in the simple suspension system. The metal and the dust-free acoustic felt make DAMPA® 31/32/33 Panels suitable for areas with high hygienic requirements.
