FDT is part of the Holcim group alongside Elevate EMEA, specializing in complete waterproofing systems and offering comprehensive services for all project phases. Their Rhenofol Roofing Membrane is an efficient PVC-P system, suitable for new industrial buildings and renovations. This roofing membrane is versatile and flexible, offering various options in terms of length, width, and color, while also being cost-effective to install. Rhenofol is available in three versions that adapt to the requirements of diverse projects: Rhenofol CG, Rhenofol CV, and Rhenofol CGv.
Rhenofol CV
Rhenofol CV is the roofing membrane system for flat-axis applications without ballast. In the Rhenofol CV version, the roofing membrane is specially reinforced with polyester threads. This roofing membrane offers a high level of safety and functionality on a wide variety of load-bearing slabs. This durable roofing membrane is constructed in two layers, with inlay and UV-stabilized top film throughout.
Characteristics
- For mechanical fastening, reinforced with polyester threads
- Remarkably tearproof and resistant
- Hail-proof according to DIN EN 13583 and UV-resistant
- Durability against natural aging
- Suitable for new constructions and renovations
Rhenofol CG

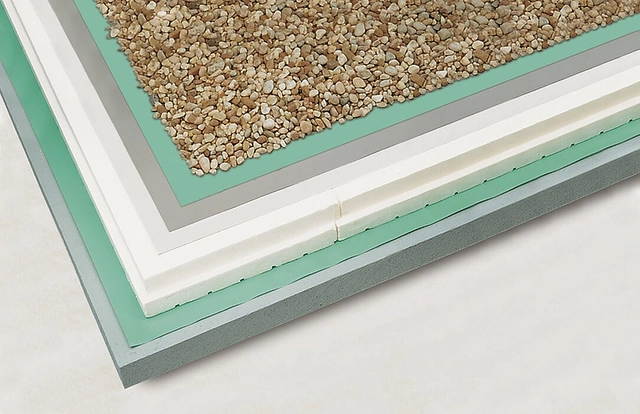

Rhenofol CG is ideally suited for the reliable sealing of used and green roof areas. This roofing membrane is an economical solution for loosely laid layers with gravel, slabs, or vegetation as ballast. The PVC-P roofing membrane fulfills two functions in one system: waterproofing and root protection. The roofing membrane is constructed in two layers, with inlay and UV-stabilized top film throughout, providing durability. Due to its UV resistance, the Rhenofol CG does not require web changes in the area of the connections.
Characteristics
- An inlay of glass fleece provides the necessary robustness and resilience
- With glass fleece inlay - for loose laying with ballast
- Especially for sealing greened and used roof areas
- Root and rhizome-resistant (FLL) and perforation resistant
- Durability against natural aging
- Suitable for new constructions and renovations
Rhenofol CGv
Rhenofol CGv is a roofing membrane designed for both bonding and mechanical fastening directly onto EPS. It is suitable for roofs that are mechanically fixed or glued, as well as for roofs with a surcharge (excluding green roofs). The roofing membrane is resistant to aerial fire, and radiant heat and can be used for any roof pitches over 20°. The direct transfer on unlaminated polystyrene thermal insulation or old bitumen roof is executable. The roofing membrane is UV-resistant and features a glass fleece inlay along with a polyester fleece underlay.
Characteristics
- Resistant to aviation fire and radiant heat
- Direct laying on EPS insulation materials/ bitumen roof
- Durability against natural aging
- Suitable for new constructions and renovations
- Resistant to industrial exhaust gases
- High repairability throughout the entire life cycle
- High UV-resistance
- High weather resistance
- Excellent cooling flexibility
- A separation layer made of glass fleece is not required
