System Fx by FritsJurgens offers extremely strong hold positions at every 90 degree angle. With its minimalistic, sleek, and durable design it is the ideal solution for interior doors.
Features
Compact design
With a height of just 38 mm and a width of 32 mm, System Fx fits seamlessly into slim-profile doors, combining effortless installation with a sleek, minimalist aesthetic that doesn’t sacrifice performance.
Weight capacity
System Fx is engineered to support doors weighing between 20 and 209 kg, ensuring reliable functionality across a wide range of applications, from lightweight to heavier door designs.
Returns to closest hold position
Whether installed in middle or side placement, System Fx returns to the nearest hold position from +10 or -10 degrees from the hold position, for enhanced functionality and convenience.
Benefits
Tailored for interior spaces
System Fx is designed for side placement, making it the ideal choice for interior pivot doors. Its robust engineering ensures reliable hold positions that enhance functionality and aesthetics in residential and commercial settings. It is the ideal system for high-traffic areas where the door primarily needs to remain open in a single hold position.
Versatile hold positionsWith exceptionally strong hold positions at 0°, 90°, 180° and 270°, System Fx adapts effortlessly to diverse applications, providing smooth operation and precision alignment for both single- and double-acting doors, and even revolving doors (middle-placement).
Built to last
System Fx offers a flawless feel that remains unchanged for a lifetime. Made from stainless steel and anodized aluminium, tested to perfection by performing 500.000 cycles.
System Specifications

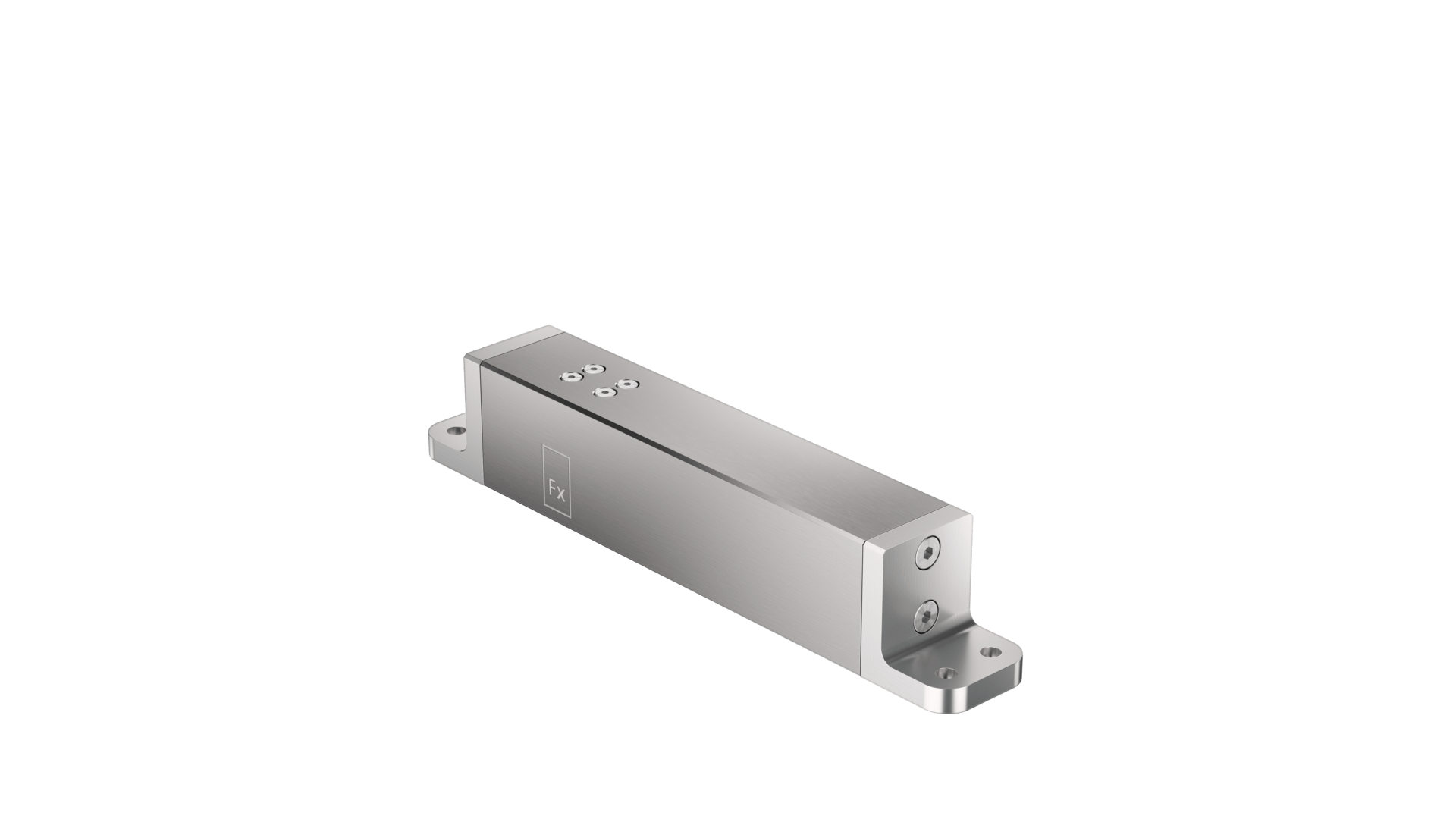

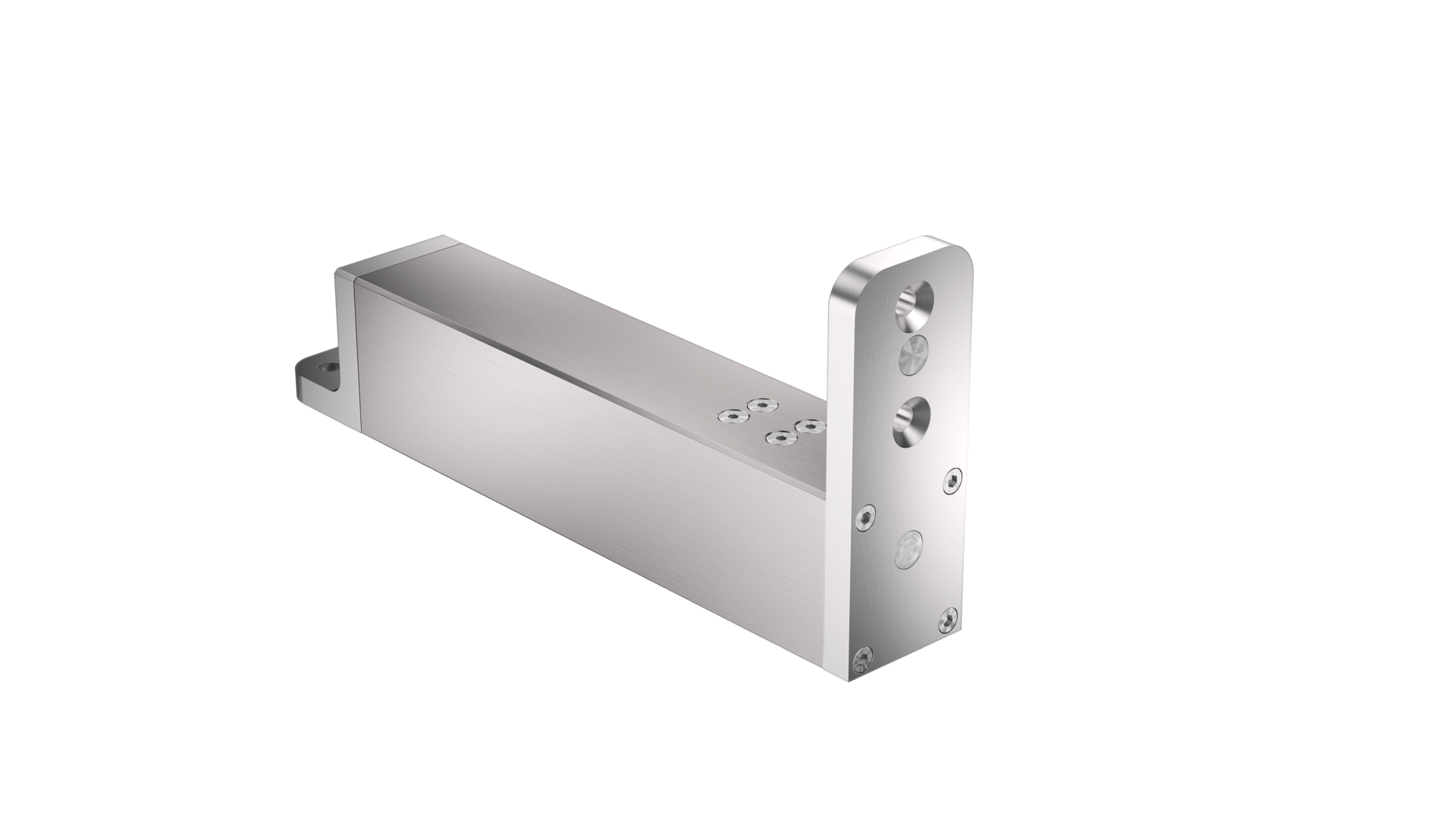

| | System Fx 70 mm Class A and C | System Fx 40 mm Class A and C |
| Dimensions | 210 x 32 x 38 mm | 188 × 32 × 85 mm |
| Placement | Side to middle placement | Side placement |
| Pivot point | From 70 mm to middle placement | Fixed at 40 mm |

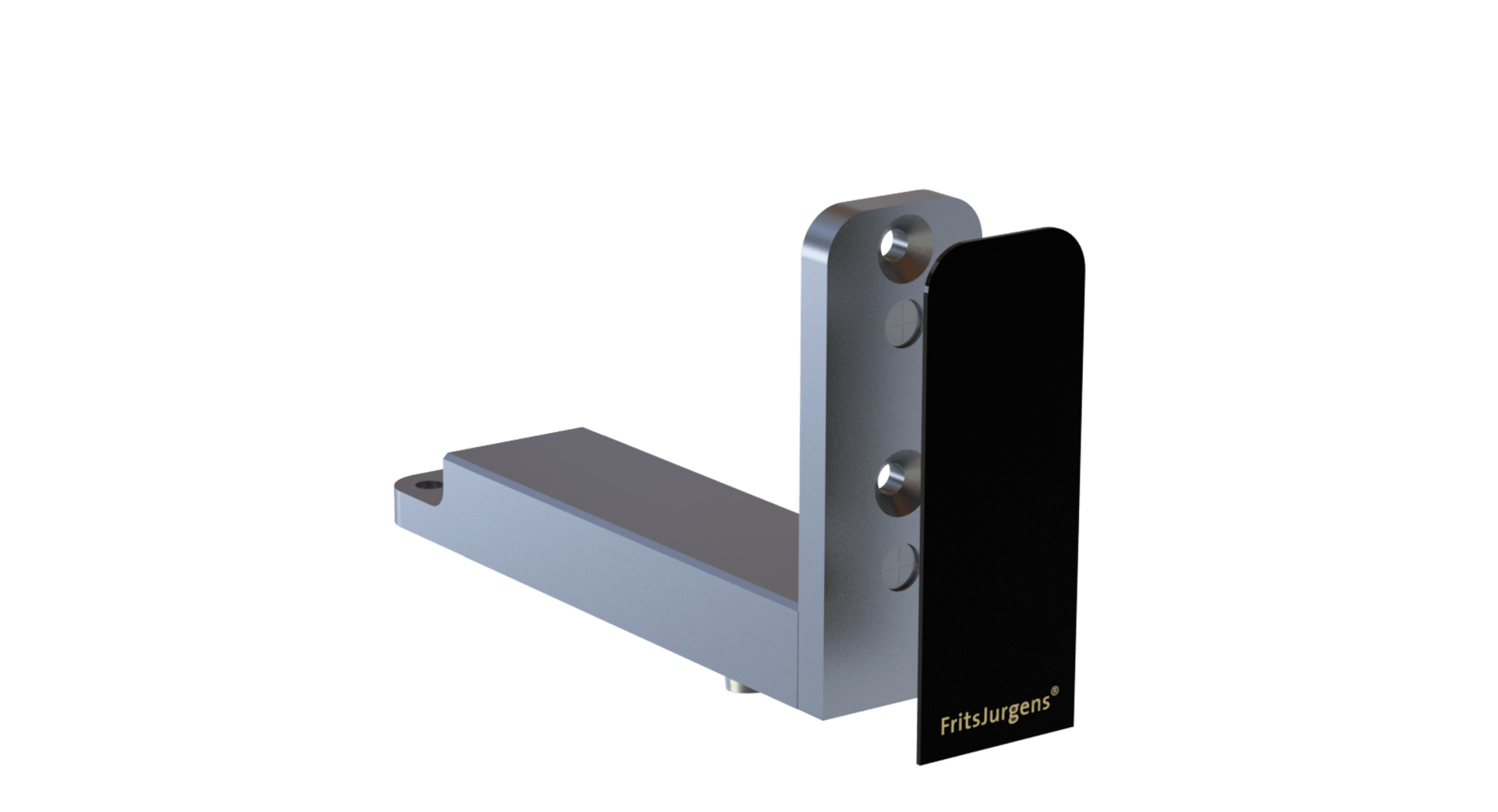

| Cover plates | No | Yes |
| Weight capacity | Class A: 20 ‑ 119 kg
Class C: up to 209 kg | Class A: 20 ‑ 119 kg
Class C: up to 209 kg |
Find more information here.
