Kingspan Light + Air is a manufacturer of innovative daylighting and natural ventilation solutions, supporting efficiency, style, and safety while prioritizing sustainability and community impact. Kingspan Light + Air offers a range of translucent wall and roof assemblies offering versatile translucent panel solutions with customizable features. As part of its diverse product offering, Solatube is an independent product brand within the Kingspan Light + Air family, specializing in tubular daylighting devices that are high-performance lighting solutions.
UniQuad®
UniQuad® translucent wall systems feature a unitized panel design that provides light control and high thermal performance along with the versatility to meet the functional and creative needs of any building design. Systems may be customized for a wide range of performance and aesthetic needs, including sound control, custom colors and graphics, specialty systems for hurricane and blast protection, and more. UniQuad® is also easy to install and maintain.
UniQuad® Window
Energy-efficient UniQuad® Translucent Windows are versatile enough for new construction and renovation projects, and are a great solution for smaller openings. The unitized modular design is simple to install, and its concealed supports create a channel glass look but with less weight and lower cost. Systems may be customized with options including custom colors, graphics and LED backlighting, or enhanced with insulation for better thermal performance.

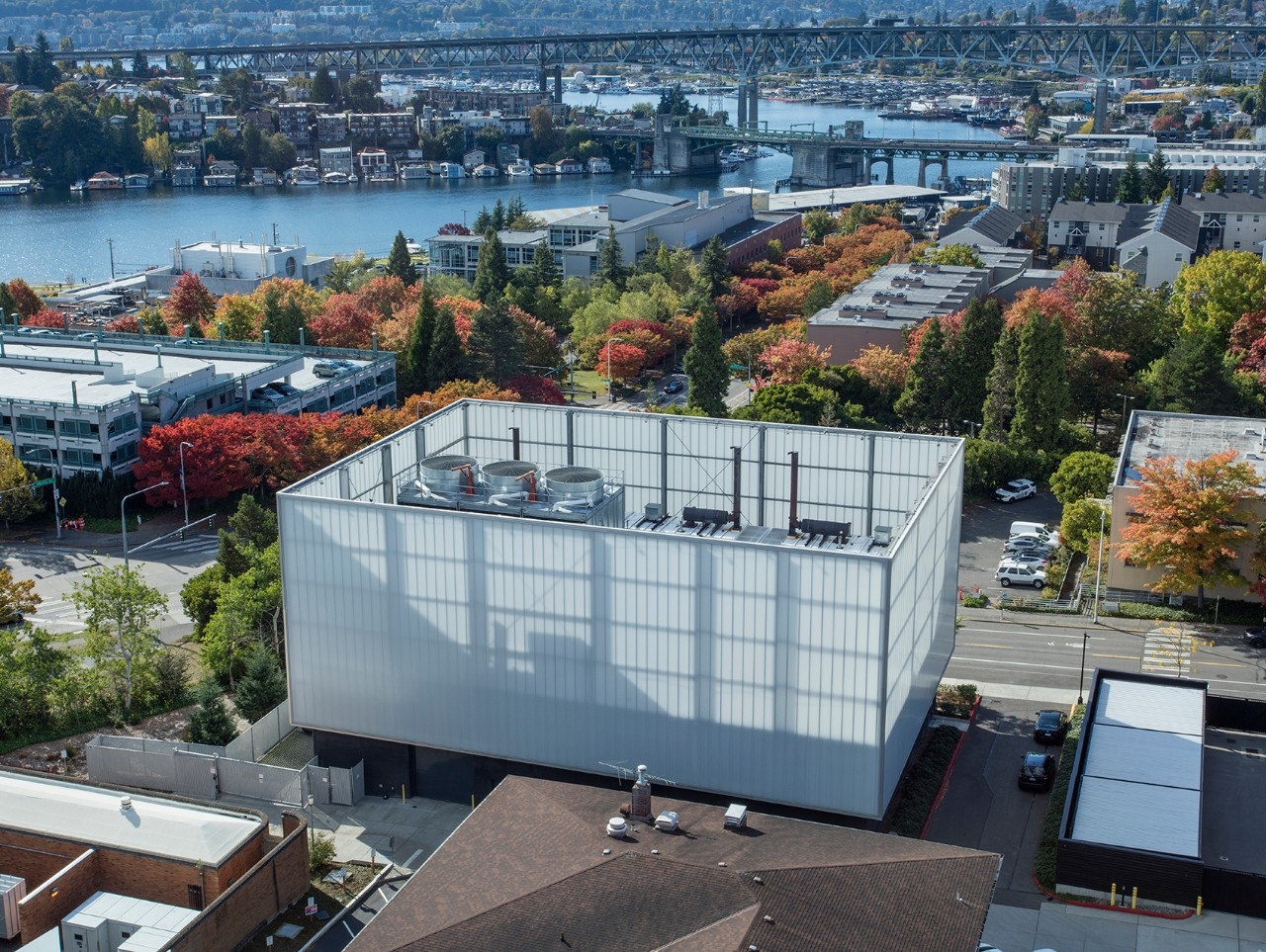

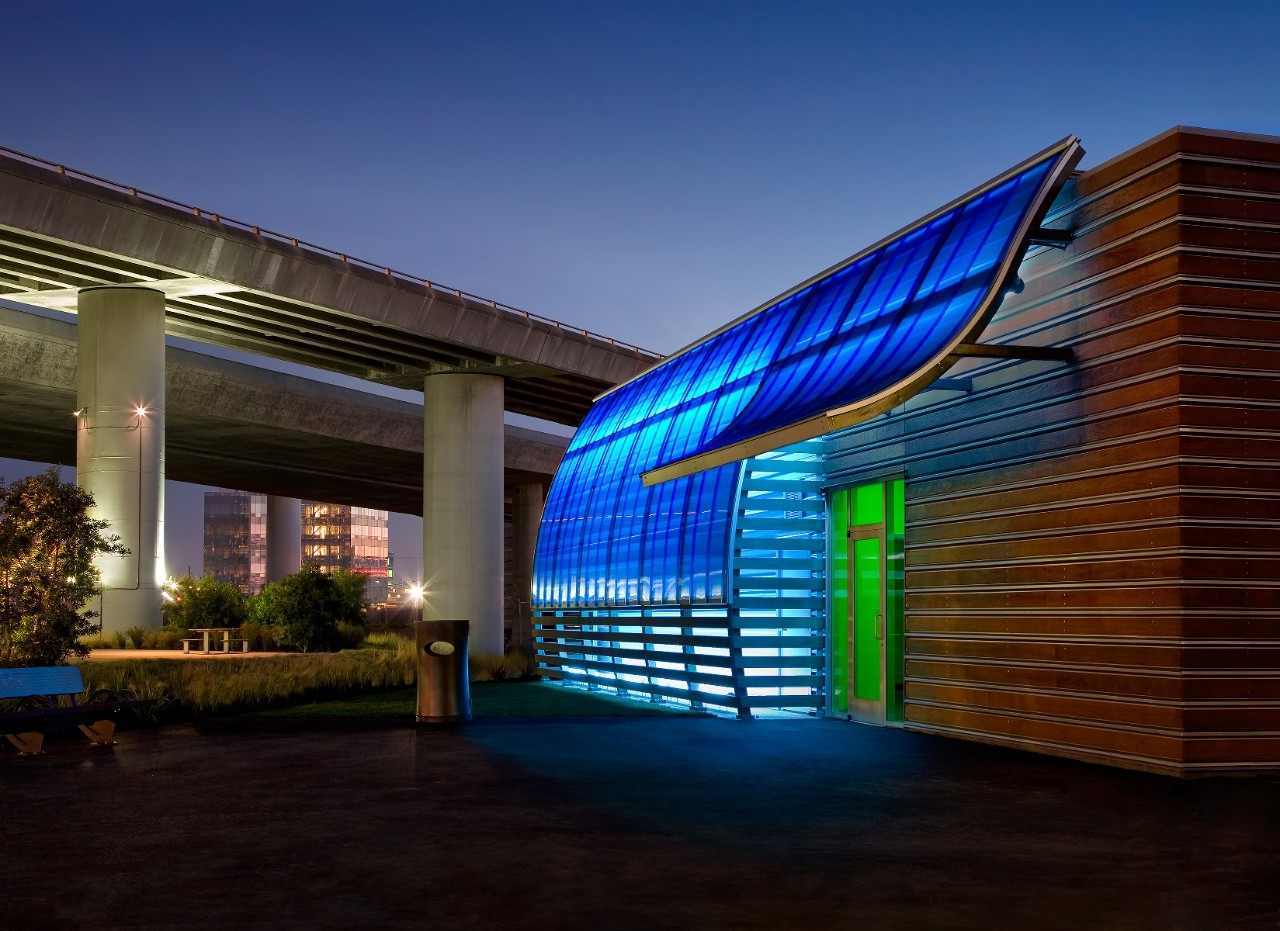

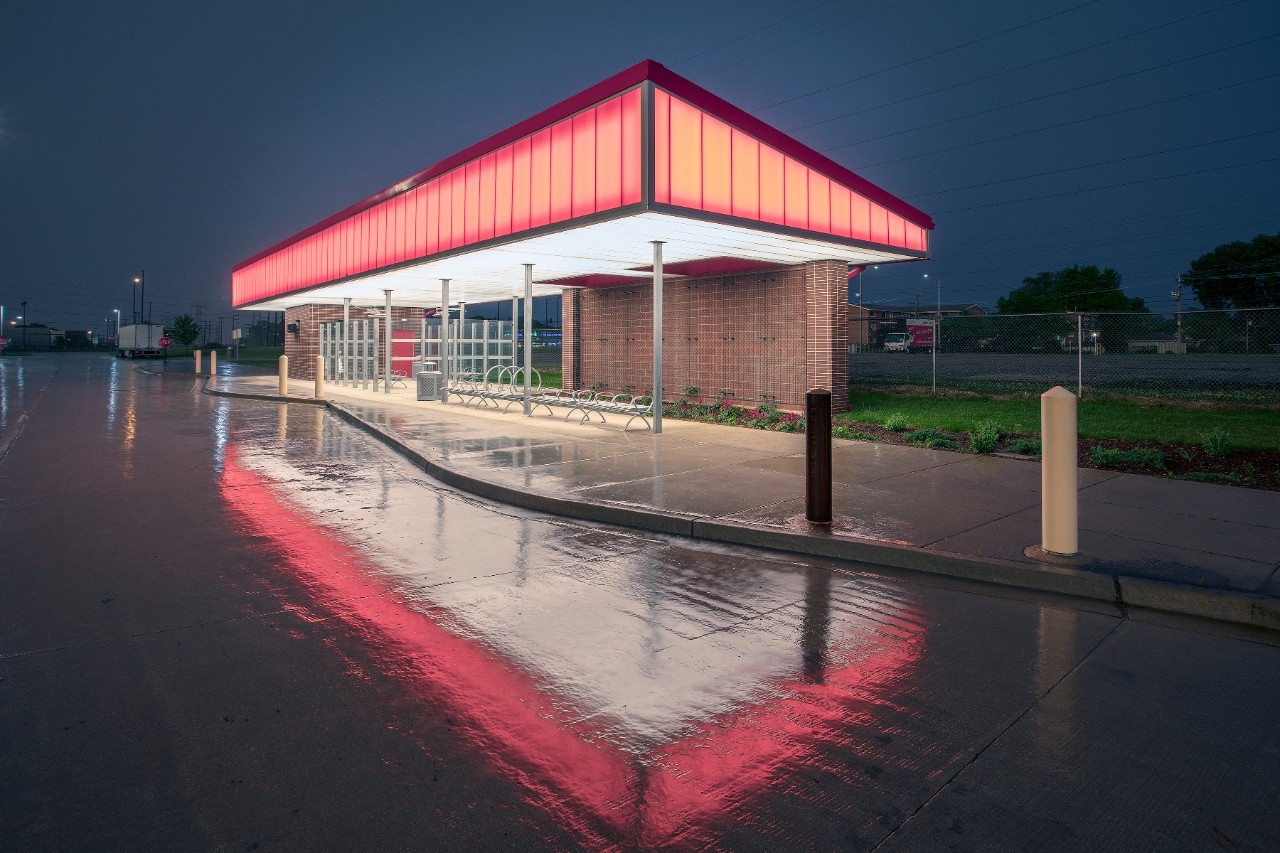

PentaClad™ Cladding
PentaClad™ system offers an effective solution for enclosing non-conditioned spaces. The single panel design uses Nano-Cell® technology to provide durability and impact resistance and a balanced distribution of natural light. The system helps modernize building exteriors or hide mechanical structures with a standing seam or flush appearance that allows for graphics and backlighting. It’s a great tool for creating eye-catching light boxes that highlight an entryway or public space.

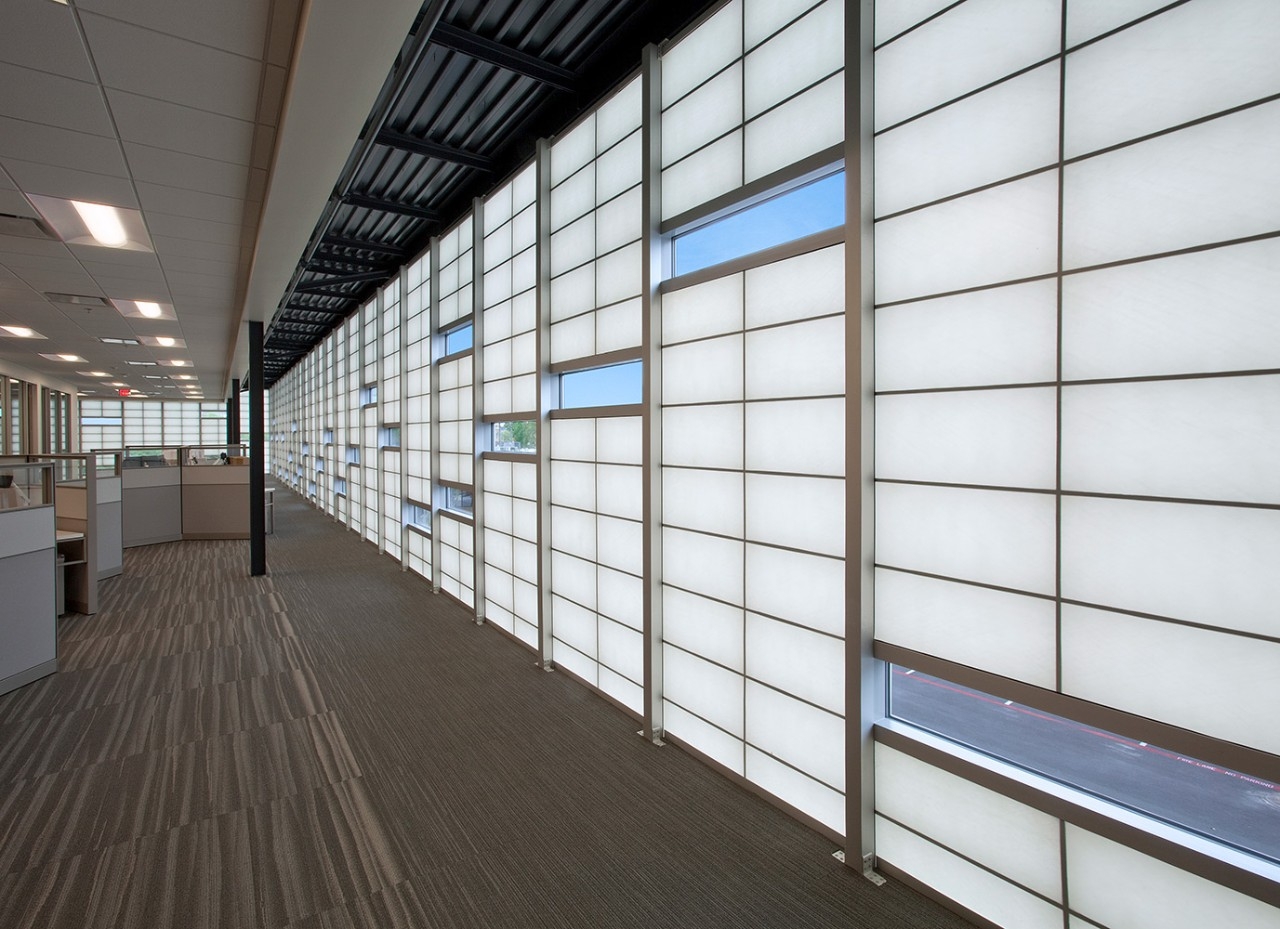

UniGrid™
UniGrid™ translucent panel wall systems feature a lightweight sandwich panel design with fiberglass-reinforced polymer (FRP) face sheets that provide light control and privacy. Their high thermal performance and unique aesthetic make them a versatile design tool that can be customized for a range of applications. Custom configurations for hurricane and blast protection, mixed-glazed systems, and unitized assemblies that integrate windows, louvers, and more are available.
| Products | Characteristics |
| UniQuad® | - Internal aluminum support members
- Wide range of standard and custom glazing colors, as well as graphic options
- Unitized panel assemblies
- Easy to maintain
- Removable Skin Technology (RST)
- Specialty systems available
- LED backlighting option
- Pre-engineered options available
- Most materials can be recycled
|
| UniQuad® Window | - Removable Skin Technology (RST)
- Internal Structural Support
- Unitized, modular design
- Warrantied to maintain translucence over time
- Translucent glazing
- Aluminum and polycarbonate can be recycled
- System height up to 6 feet with limitless length (panelized in up to 12 foot sections)
|
| PentaClad™ Cladding | - Nano-Cell® technology
- Glazing panels are co-extruded with a specialized UV inhibitor for long-term performance
- Polycarbonate glazing panels feature a triple-tooth connection
- Stainless steel panel clips with aluminum purlin substructure and aluminum framing system provide additional strength
- Creates space for signage or applied graphics either internally or externally
- Backlighting opportunities allow for “light box” designs
- Lightweight and simple to install
|
| UniGrid™ | - Available with a variety of insulation options and a 4” panel option, enhancing thermal performance
- Concealed fasteners
- Snap-and-capture caps
- Standard or custom grid patterns
- FRP face sheet is available in a range of colors
- EPDM gaskets and high-performance sealants
- Thermally broken panels and framing available
- Individual panels up to 5 feet wide and 20 feet long (depending on load requirements)
- Spectra-Grid™ color option
- Numerous finish options available
- Allows for integration of glass glazing or operable windows – unitized systems also available
- Translucent Adapter Panel system for integration into existing curtainwall systems
|
