Lighting Effects from iGuzzini create unique visuals on and around architecture changing the spaces and surfaces. Beyond functionality, lighting effects offer unique aesthetics and act as a piece of architecture.

Today, light can be conceived as a tool for defining space and literally creating moods and meaning. It is a tool that uses signs and graffiti, interrupts continuity, emphasizes curves and angles, vectorizes surfaces and highlights volumes. This new concept is called Graphic Lighting. It is only for specialists and uses only optical assemblies and highly innovative designs that blend into architecture perfectly. The light signals can be either static or dynamic in terms of both colour temperature and RGB tones. And matching indoor and outdoor installations guarantee style continuity with specific high-resistance features and long-lasting reliability.

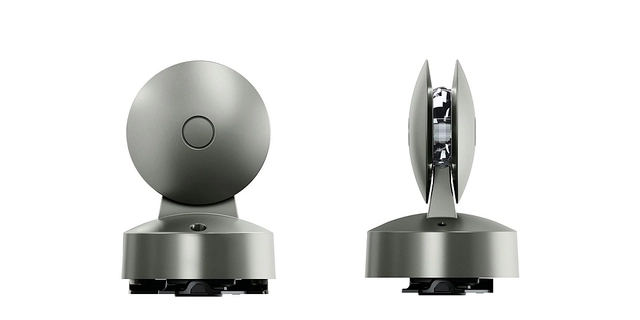

Trick

iGuzzini's Trick is a unique, contemporary designer lighting product that impresses technologically in terms of light clarity and range. Trick offers various lighting effects, including light blade, wall washer, and radial which can help light windows, wall art, or products to showcase these specifically. The secret of this aluminum device lies in its toroidal lens with its micro prismatic surface that disperses heat correctly.

Features

• PMMA screen, die-cast aluminum supporting base, stainless steel plate for fixing to wall, supplied with 400 mm cable (except versions with power supply)
• Compatible with lighting management systems
• Temperature of contact <50°
• Luminaire reduced dimensions
• All external screws are in A2 stainless steel

Models

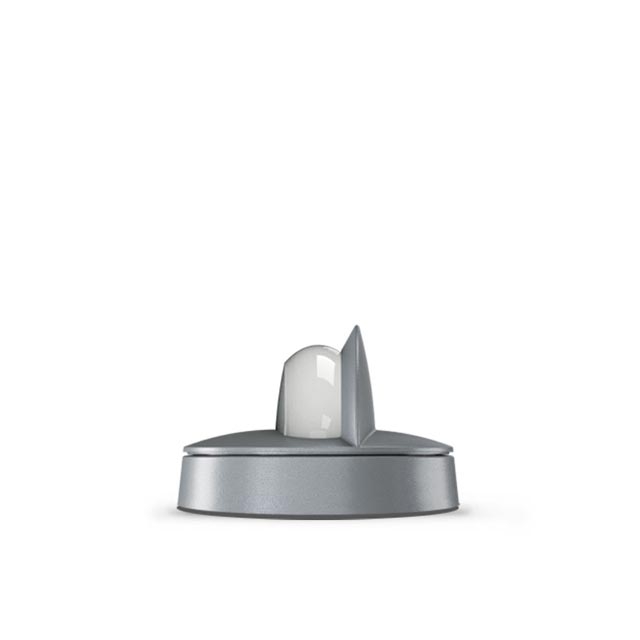

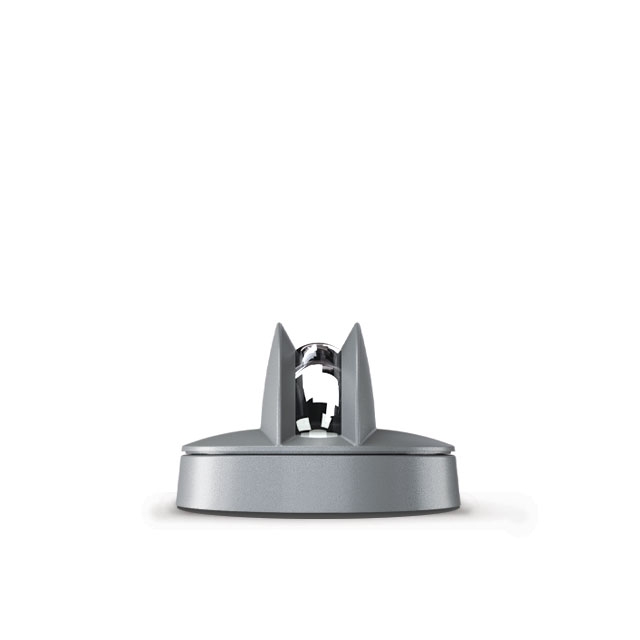

Trick 360	Trick 180

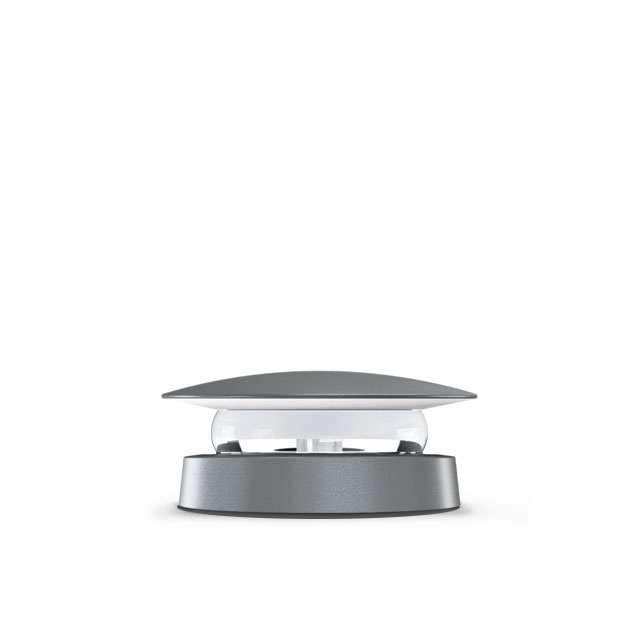

Trick Radial	Trick Washer

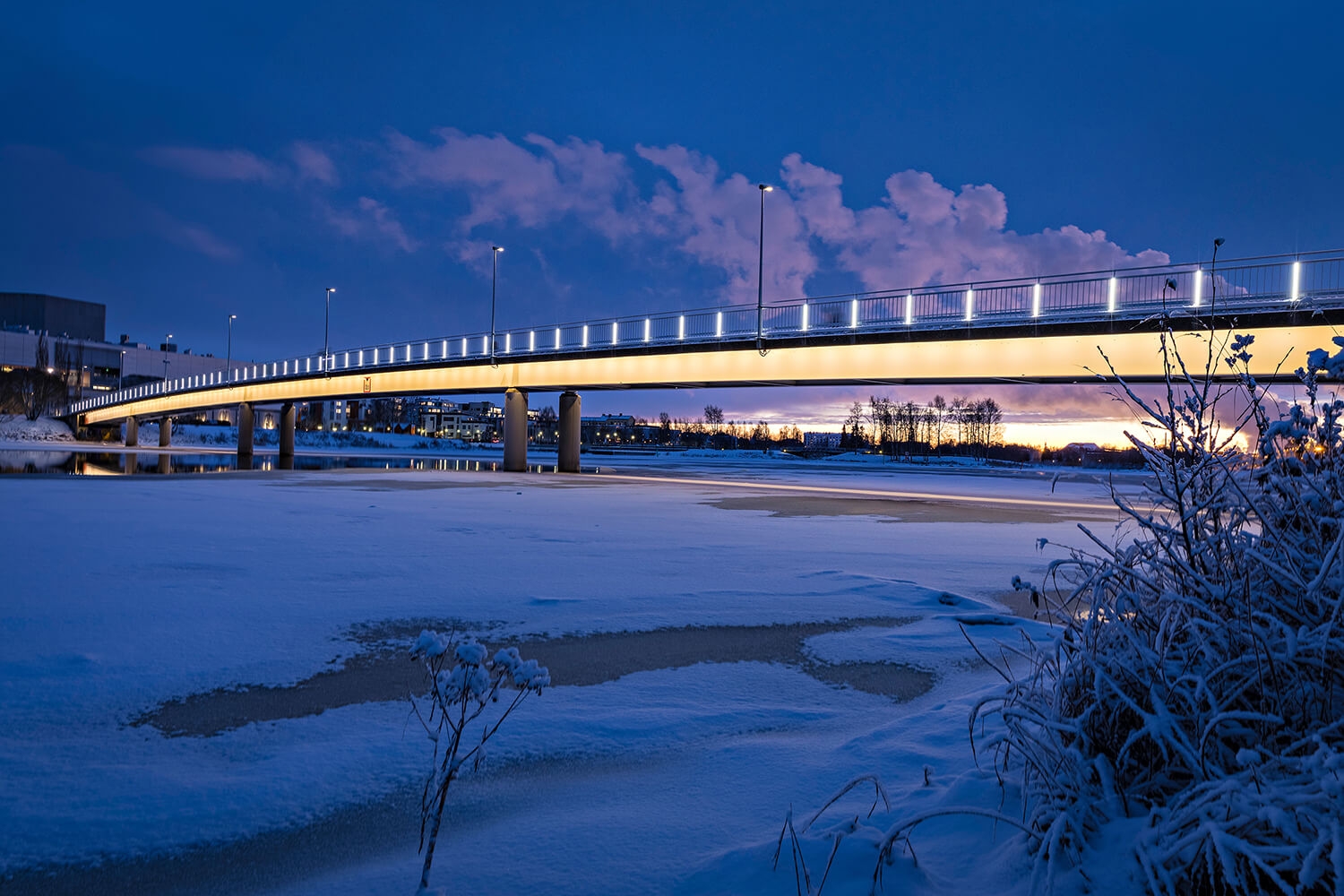

Underscore InOut Pixel

Underscore InOut Pixel Top Bend 16mm is a direct light outdoor luminaire that can be mounted on the ground and floors. It is intended for LED light sources and 180° or 360° asymmetrical optics. The complete product comprises the optical compartment and cylindrical bollard, which need to be ordered separately.

The optical compartment is made up of several elements:

• Upper cover in painted aluminum
• Luminous flux recovery in PUMA
• Light-emitting lens in transparent polycarbonate
• An extruded internal support with a radially secured LED circuit
• Black-painted die-cast aluminium cone
• The lower box housing the die-cast aluminum power supply
• Silicone gaskets for water seal between top cover, lens, and cone

Features

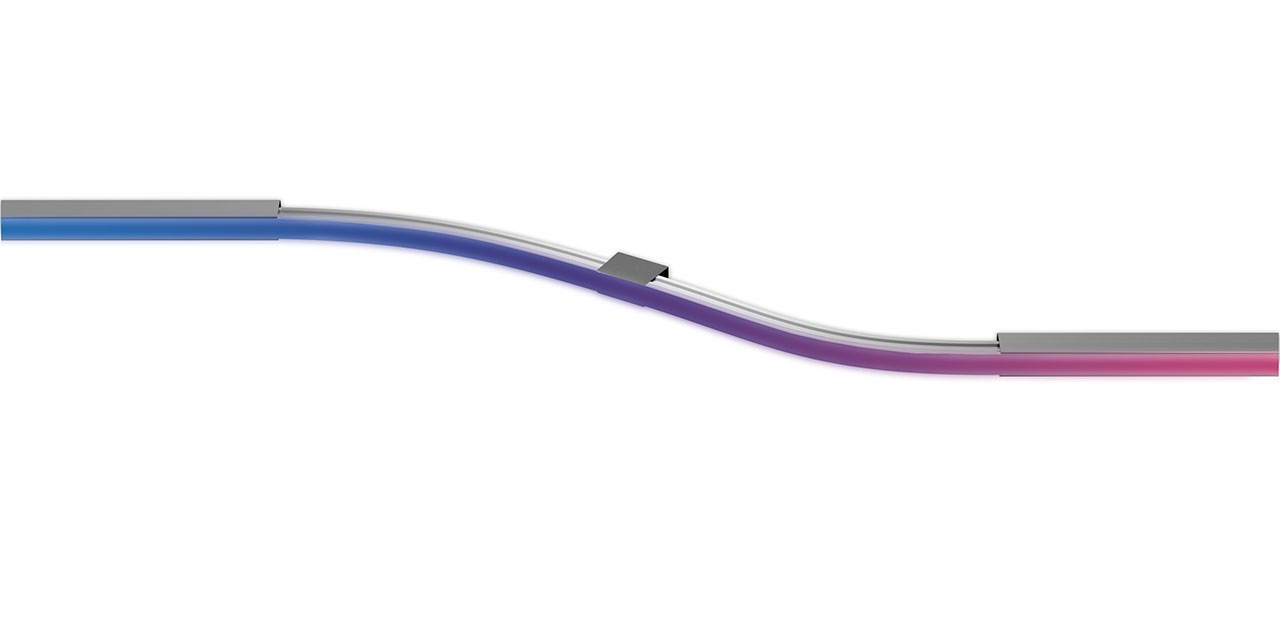

• Linear lighting fixture with RGBW LEDs (4000K CRI 80 white LEDs)
• Surface installation with profiles (straight lines) or clips (curved lines)
• Implemented on a 24Vdc white flexible circuit with lengths from 337 mm to 7004 mm (10 lengths available)
• The LED strip can be controlled via the SPI protocol, with addressing every 83.3mm (pixel pitch)
• The material can be used and installed even at extreme temperatures of -30 °C +45 °C
• Uniform lighting without visible points is assured along the entire profile of the strip as far as the terminal parts
• Complete with 80 mm cables plus male (input cable) and female (output cable) connectors for unidirectional connection, and equipped with an anti-release ring nut
• Complete with stainless steel wires to limit plastic deformation of the body that may otherwise damage the LED circuit
• Resistant to brine, UV rays, and solvents
• Contact temperature <40°

Model

Light Up

This luminaire is available round or square, in the finishes steel, burnished chrome, gold, brass, bronze, and black, with a wide optics range and a side bend between 10mm and 16mm, in 21 possible combinations.

Light UpOrbit - body in stainless steel7lm - 1W / 433lm - 4W	Light UpOrbit - body in stainless steel flush mounted7lm - 1W / 433lm - 4W
Light UpOrbit - body in stainless steel / all glass flush mounted9lm - 1W / 433lm - 4W	Light UpEarth48lm - 7W / 5370lm - 46.7W

• Pixel Top Bend 16mm
• Linear lighting fixture with RGBW LEDs (4000K CRI 80 white LEDs).
• The product is not considered suitable for installation in swimming pools and fountains.

iPro

LED luminaire with optical assembly, an upper cap for ceiling-mounted installation, and a lateral base for wall-mounted installation made of die-cast aluminum; transparent tempered sodium-calcium sealing glass and 4 mm thick, silicone to optical assembly.

• Luminaire ready for pass-through wiring.
• Available in white grey, with 3000 4000 k tunable white rgb
• In dimensions from miniaturized 51mm to 192 mm.
