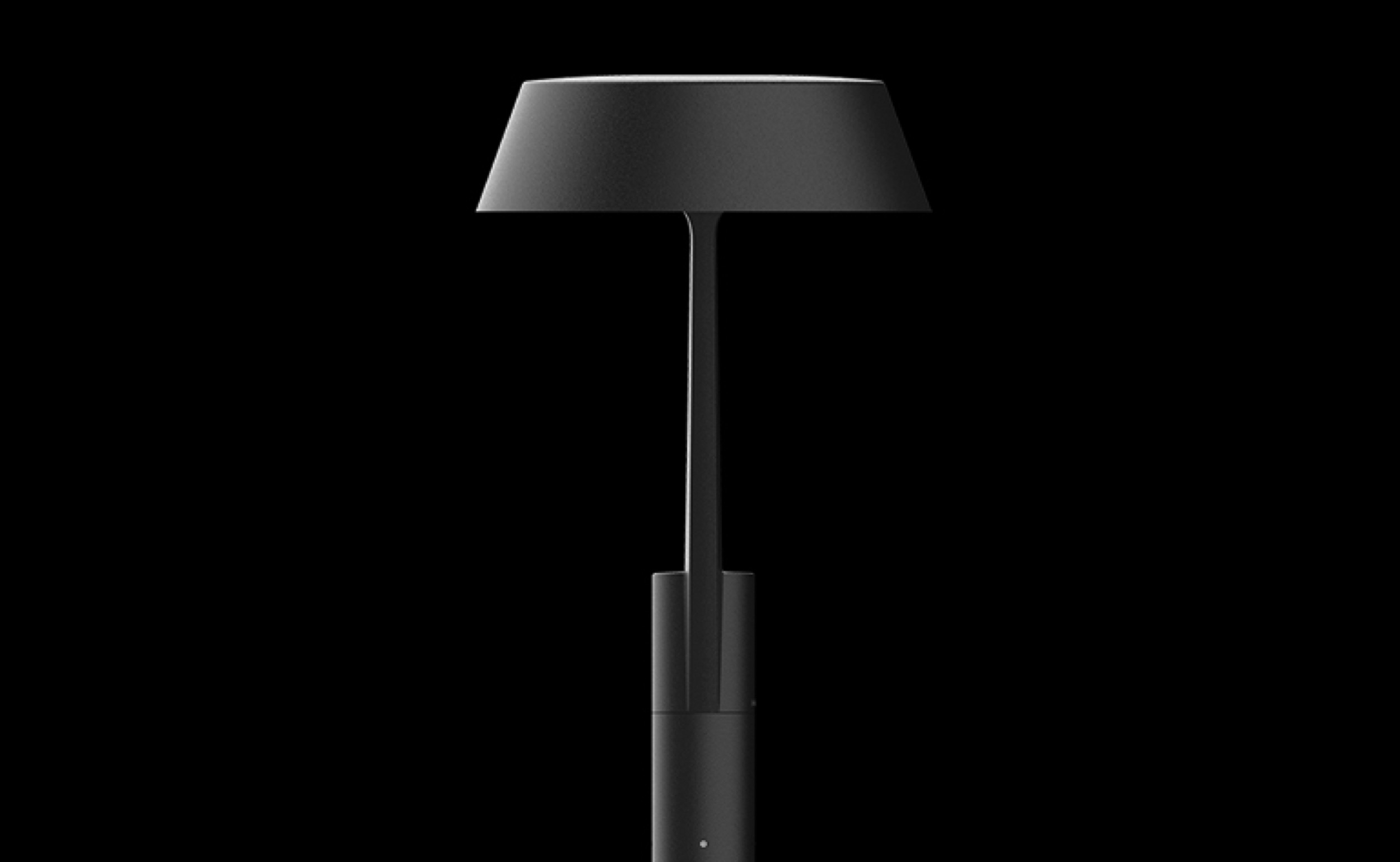

Clermont from Luminis blurs the lines between outdoor and indoor luminaires with its curb-to-cube family approach. Clermont from Luminis puts the focus on a variety of mounting options to cover a range of exterior and interior lighting needs, including post lights.
Models
| | |
| Clermont CT180-PT | Clermont CT185-PT |
Product Specifications
| Materials | - Clermont from Luminis is made of aluminum diecast, offering exceptional precision and durability. The main housing is sealed with a durable gasket

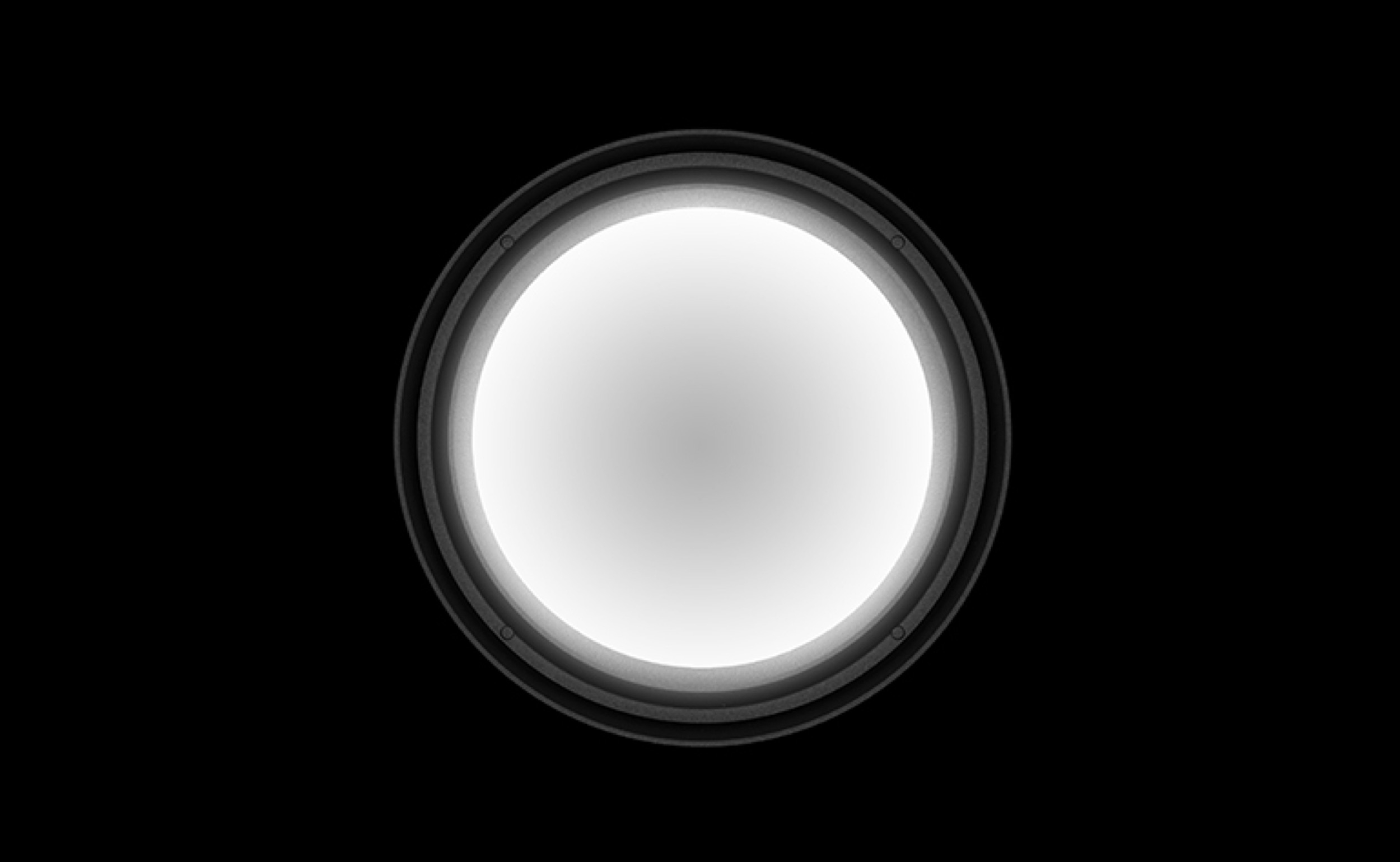

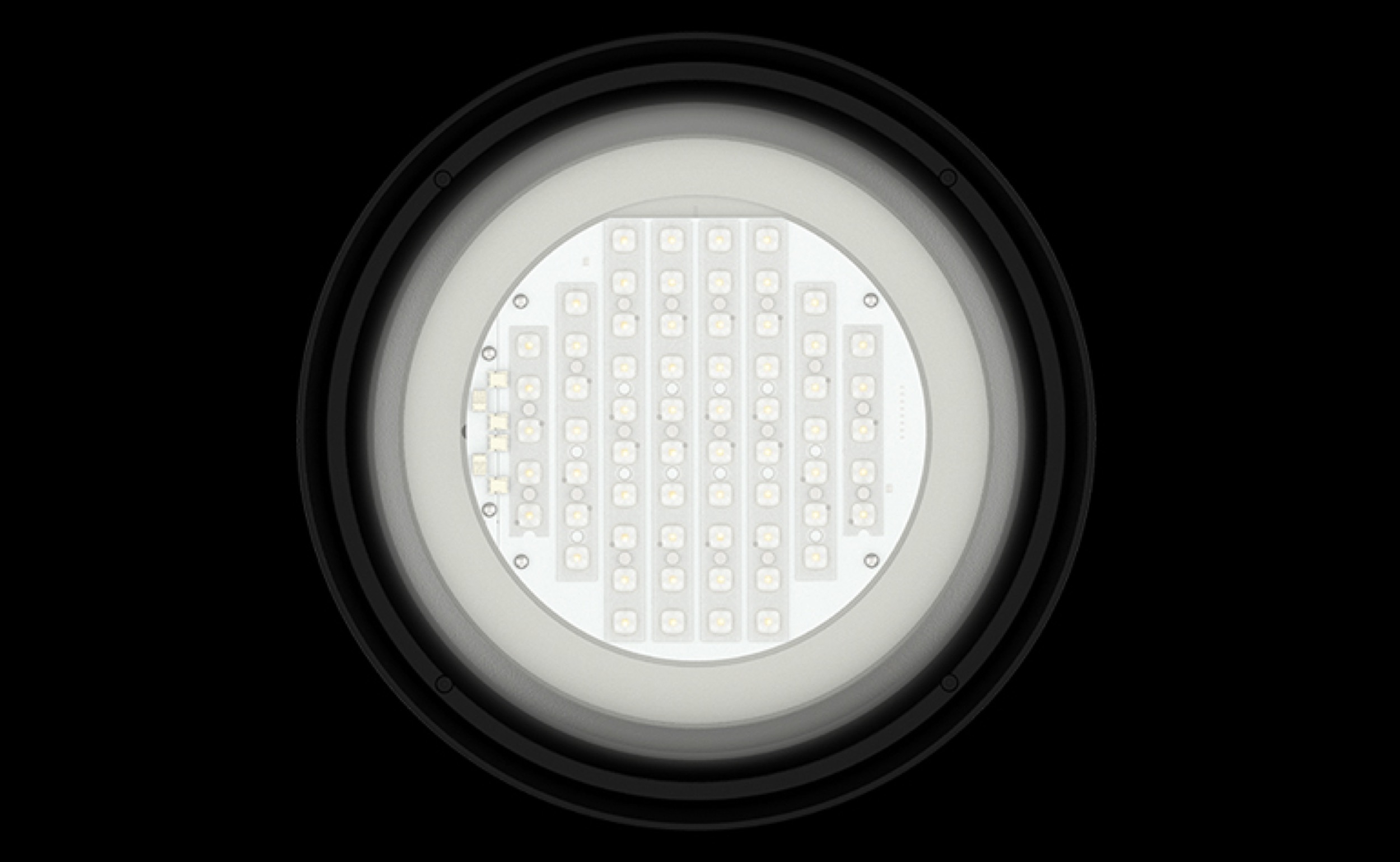

- Features a high-efficiency LED light engine, mounted on a recessed heatsink whose pattern is optimized for heat dissipation
- The driver is preinstalled inside the main housing, sealed with a proper gasket, and secured with four captive screws which makes it easy for maintenance
|
| Mounting | - Maximum weight: 27 lbs (12 kg)
- Designed to fit on 4” OD pole with 1/4”, 3/16” or 1/8” wall thickness
|
| Electrical | - Driver
Standard driver is 0-10V dimming-ready (dims to 10%) with 120-277 multi-volt compatibility (50-60Hz), operating temperature range of -40ºC to +55ºC -40ºF to +131ºF, output over voltage protection, output over current protection and output short circuit protection with auto-recovery. Optional 347/480V available - LED

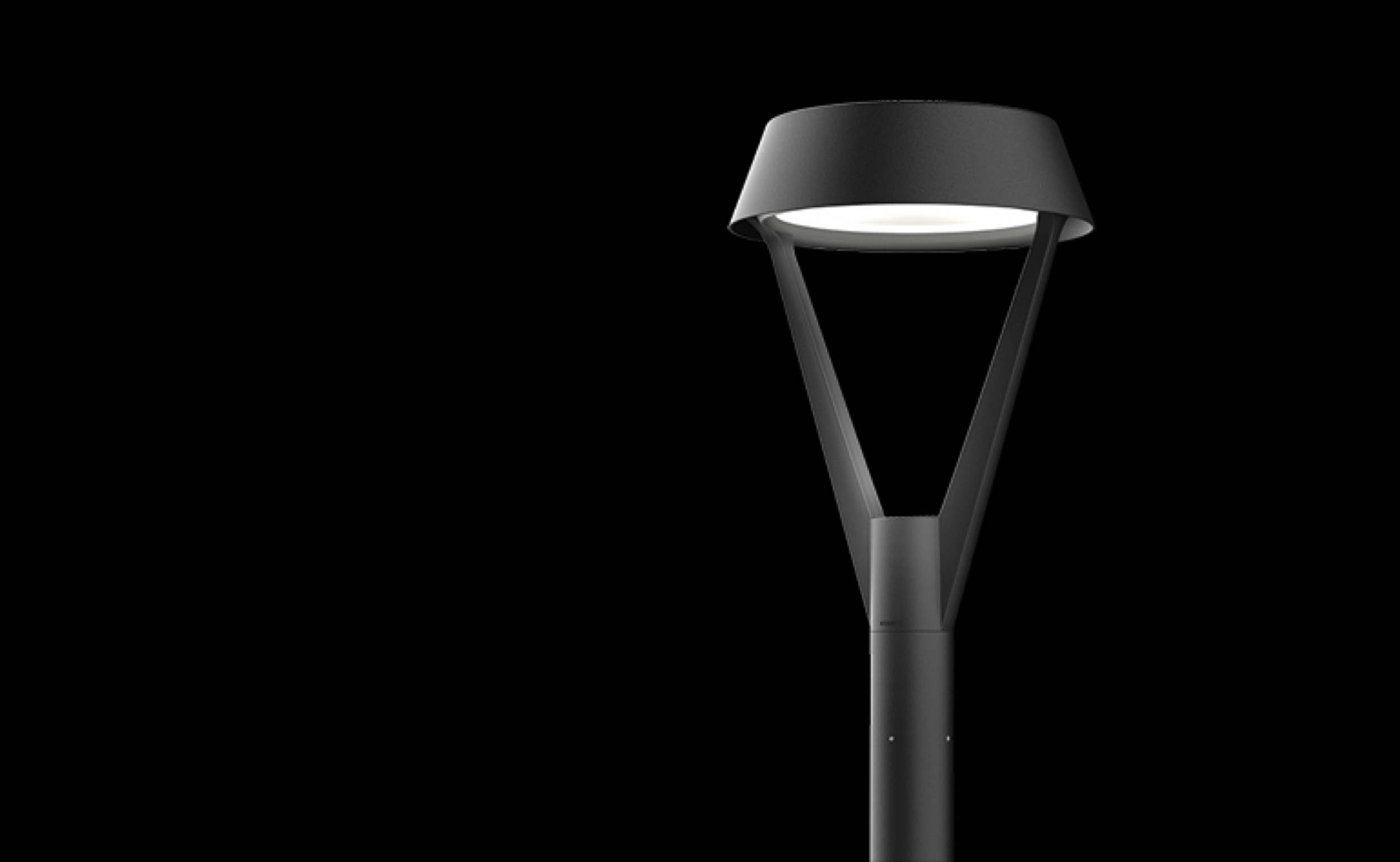

- Clermont CT180-PT
Offered in 2700K, 3000K, 3500K & 4000K at 80CRI - Clermont CT185-PT

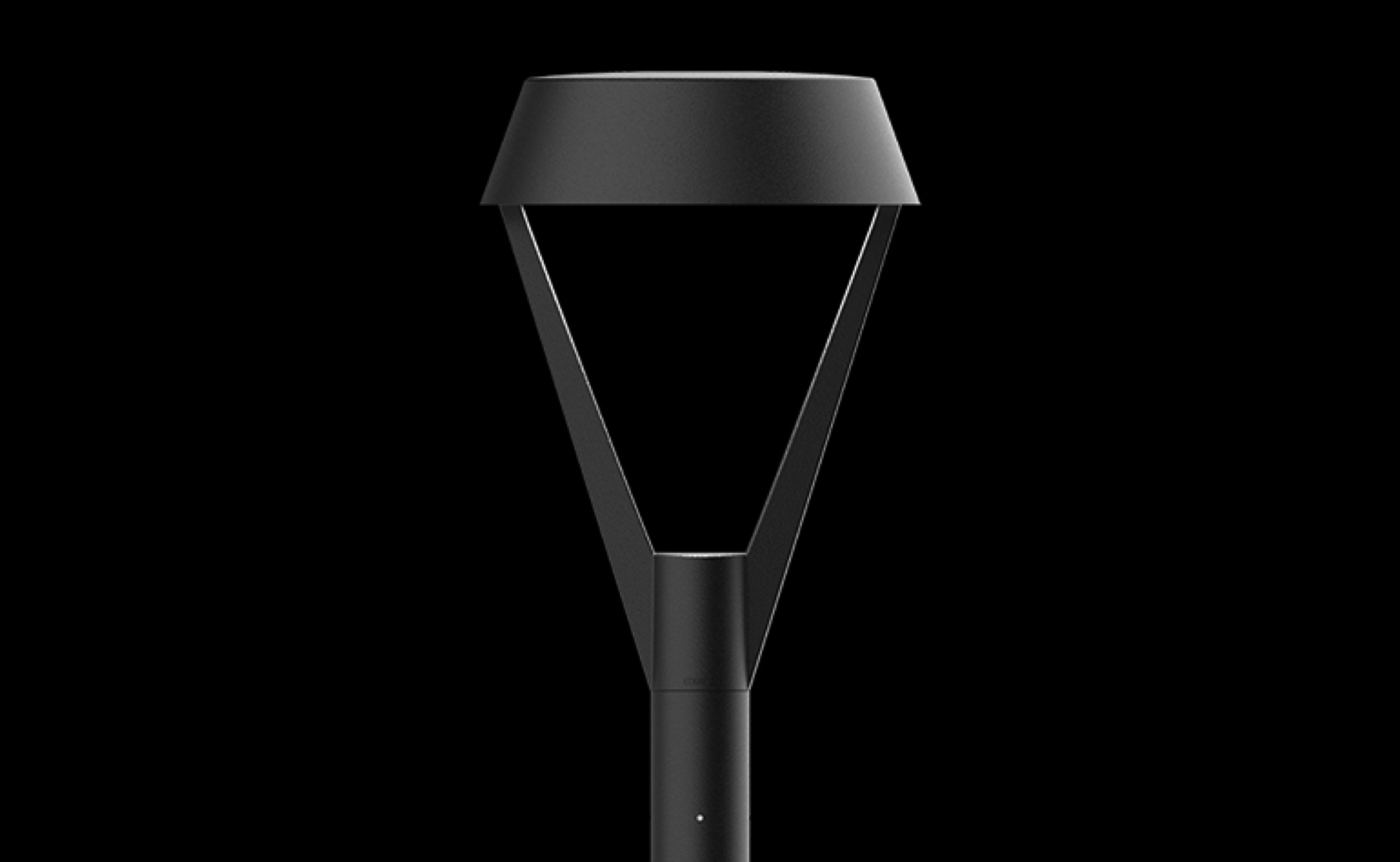

Offered in 2700K, 3000K, 3500K, 4000K |
| Life | 60,000hrs L70 B50 (based on LM-80 report for lumen maintenance) |
| Finish | The five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process and oven-cured for a long-term finish |
