Use
Doors -
Applications
Residential, commercial -
Characteristics
Designed for large openings, can be used to form a disabled access threshold, thermally insulating -
Certification
CE-compliant
3 Product Files
16 General Catalogs
1 BIM Object
3 Product Files
16 General Catalogs
1 BIM Object
Jansen is an industry leader in strength and thermal performance steel systems for doors, windows, and façades. They offer customized solutions and a variety of services to fit the needs of any modern architecture project.

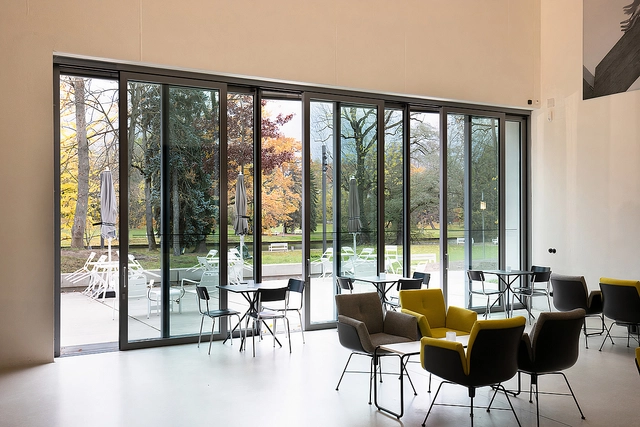

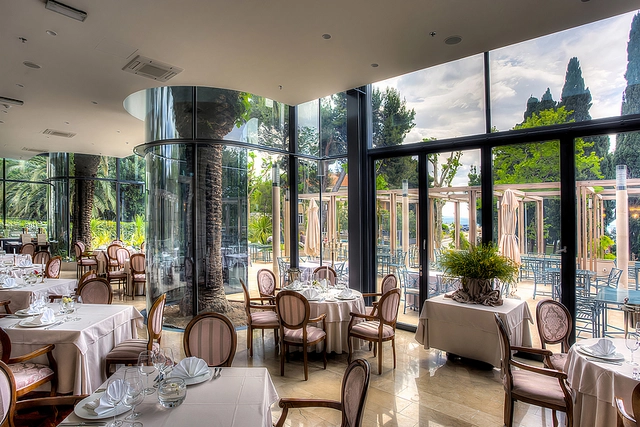

The Janisol lift-and-slide door program re-defines the living room. The proven system, which has been re-developed for large openings, allows the indoors and the outdoors to merge and in this way creates a unique, open living space. The bottom threshold made of high-quality, glass-fiber reinforced plastic makes it possible, on the one hand, to form a disabled access threshold and, on the other hand, also guarantees optimal thermal insulation. The Janisol lift-and-slide doors are CE-compliant and have been tested at ift Rosenheim.
The steel is strip-galvanised making it suitable for powder coating or stove-enamelling. The thermal break spacer bars made of glass-fibre reinforced plastic and the
threshold profile is made of glass-fibre reinforced plastic.

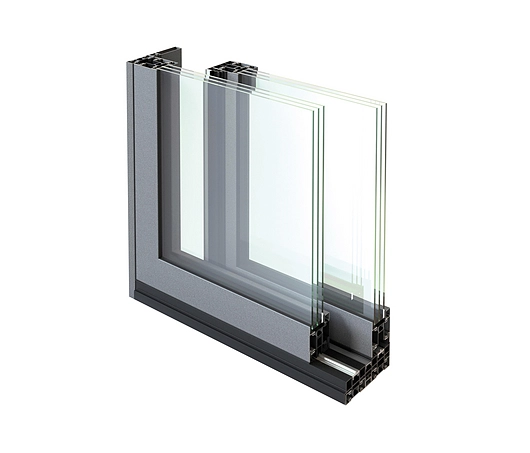

| Special Technical Features |
| Installation depth, sliding and fixed leaves 80 mm |
| Installation depth, frame 185 mm |
| Infill elements, 25 - 57 mm |
| Face width, leaf 85 mm |
| Face width, leaf with frame 113.5 mm |
