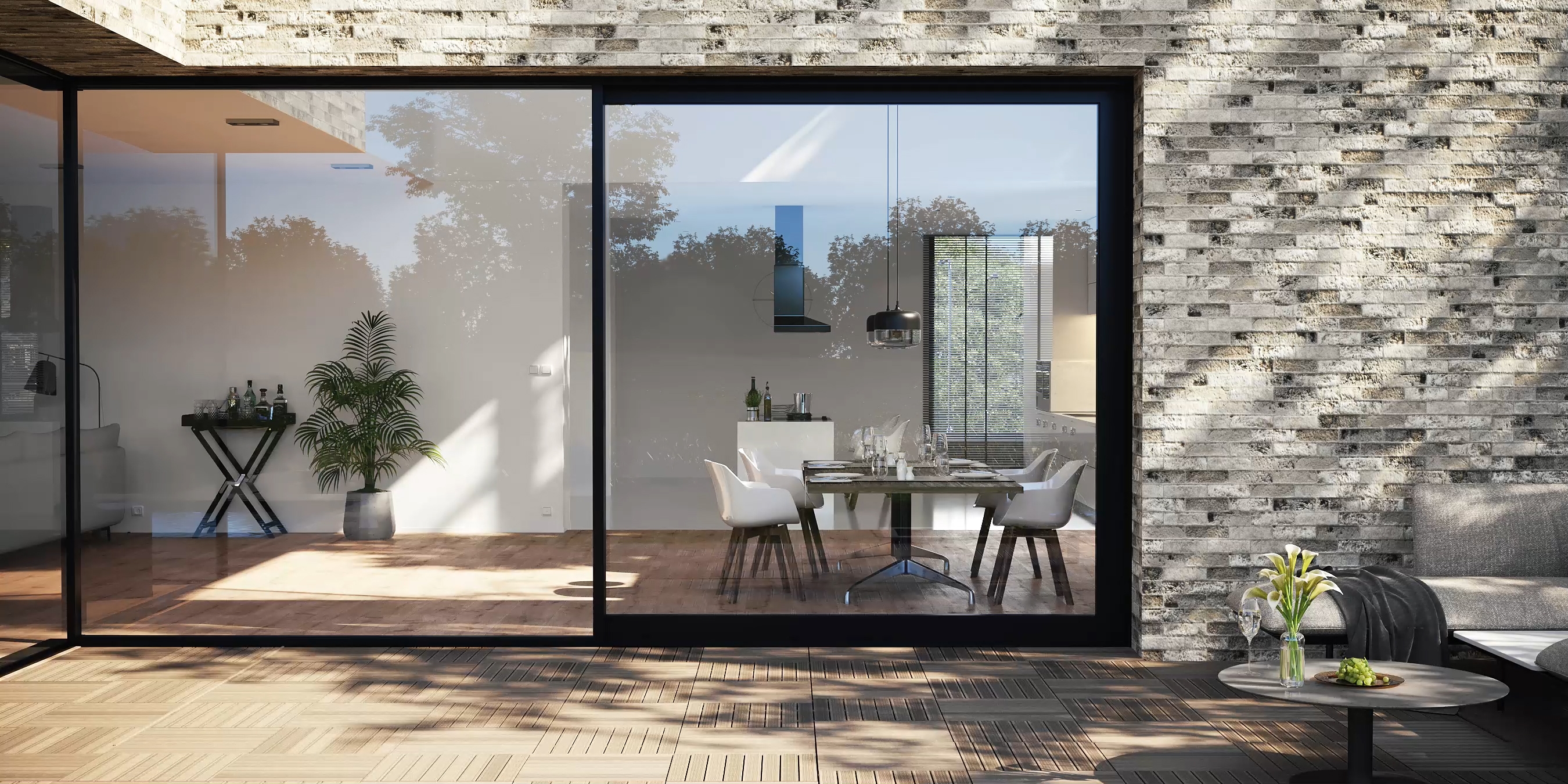

Sliding Door - MasterPatio | Reynaers Aluminium

  • Use

    Patio doors
  • Applications

    Residential, commercial, corporate, hospitality
  • Characteristics

    Clean design, integrated hardware, design freedom: various opening types, combine with MasterLine 8 elements into floor high façade system, improved accessibility.
  • Format


More about this product

MasterPatio was designed to address a variety of market needs that have been identified by stakeholders such as architects and fabricators. The result: a Master product by Reynaers, designed to support the architects’ creative freedom, to enable the craftsmanship of fabricators, and to improve the quality of life of the home owner.

Clean design and architectural freedom

Reynaers Aluminium’s MasterPatio has been designed to complement the MasterLine 8 range. The diversity of Masterline 8 product portfolio along with the performance and dimensions of Masterpatio make it suitable for a wide range of applications, resisting high-rise building wind loads and reaching Passive House level thermal performances. Components and accessories, such as locks and receivers, are mostly concealed or flush-integrated in the profiles. In addition, the visible sightlines are kept consistent throughout sliding parts, reinforcements and other transom profiles.

MasterPatio allows designers to create a clean floor-to-ceiling façade. Sash heights up to 3.6m, up to 400kg for moving glass have been tested successfully and can be applied in demanding projects. Its reversible sashes make it possible for inside and outside glazing with the same profiles. The cover profiles make sure no water is visible, even with high wind loads up to 600Pa.

Throughout its development, clean design was always one of the key drivers. This resulted in MasterPatio’s slim sightlines with glass to profile ratios of up to 90%, allowing better aligned surfaces clear from visible plastic or rubber components, yet robust and strong enough for all applications. The frame can be fully concealed and the sashes have the same 87mm visible widths as MasterLine 8. Wherever it makes sense, the systems share dimensions to make coupling simple, efficient and beautiful.
