Use
Bathroom mixers, furniture and accessories -
Applications
Residential, hospitality -
Characteristics
Experimental design, avant-garde, playing with visual effects inspired by fashion film or science

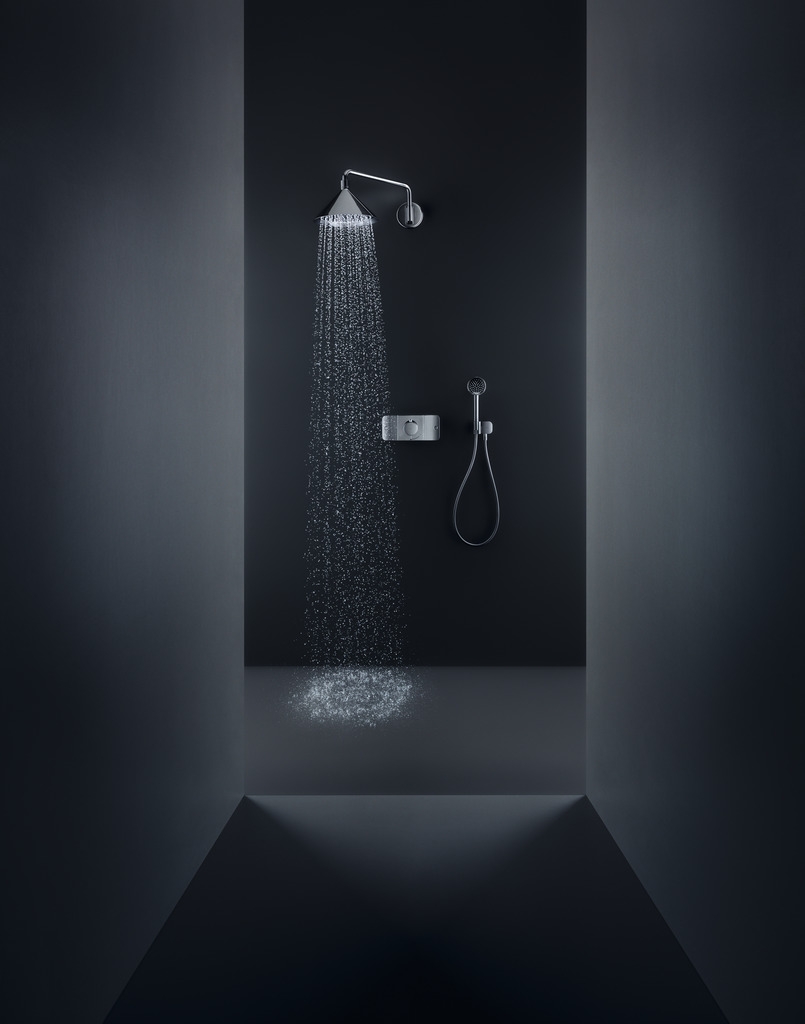

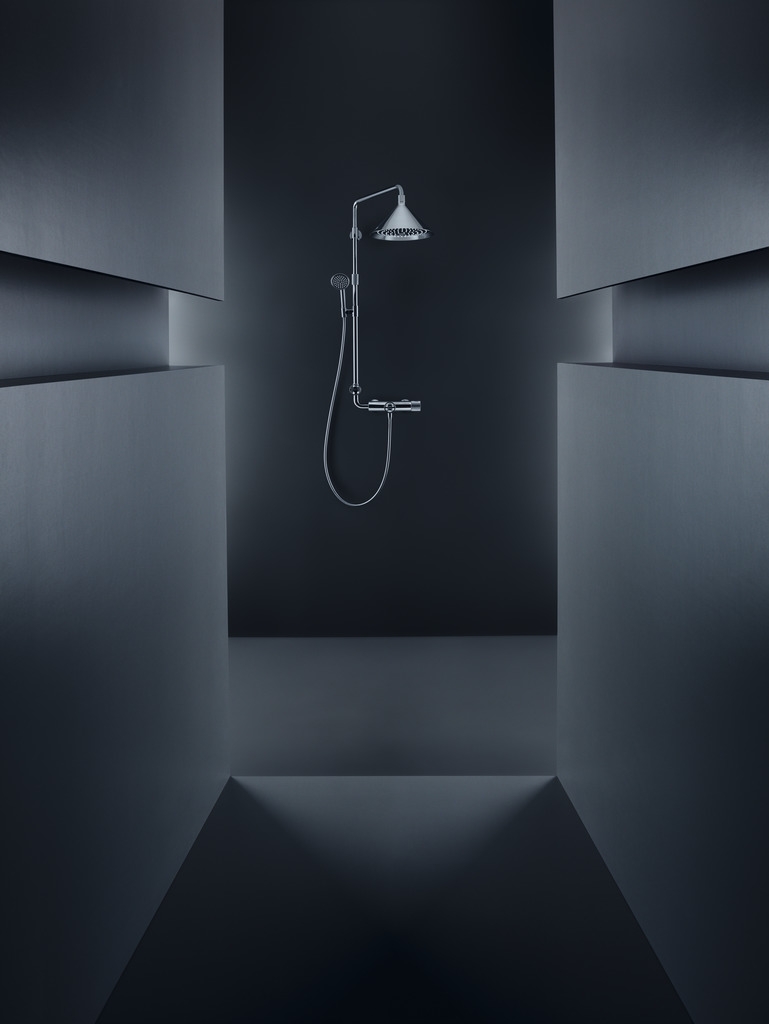

The AXOR Shower Systems and Showerpipes provide a complete shower solution consisting of a thermostatic mixer along with the overhead shower and hand shower. AXOR Showerpipe designed by Front with an industrial design language has a funnel-shaped overhead and hand shower and nothing is hidden. Pipes, couplings, valves – all of the typical elements of industrial design are purposefully exposed.

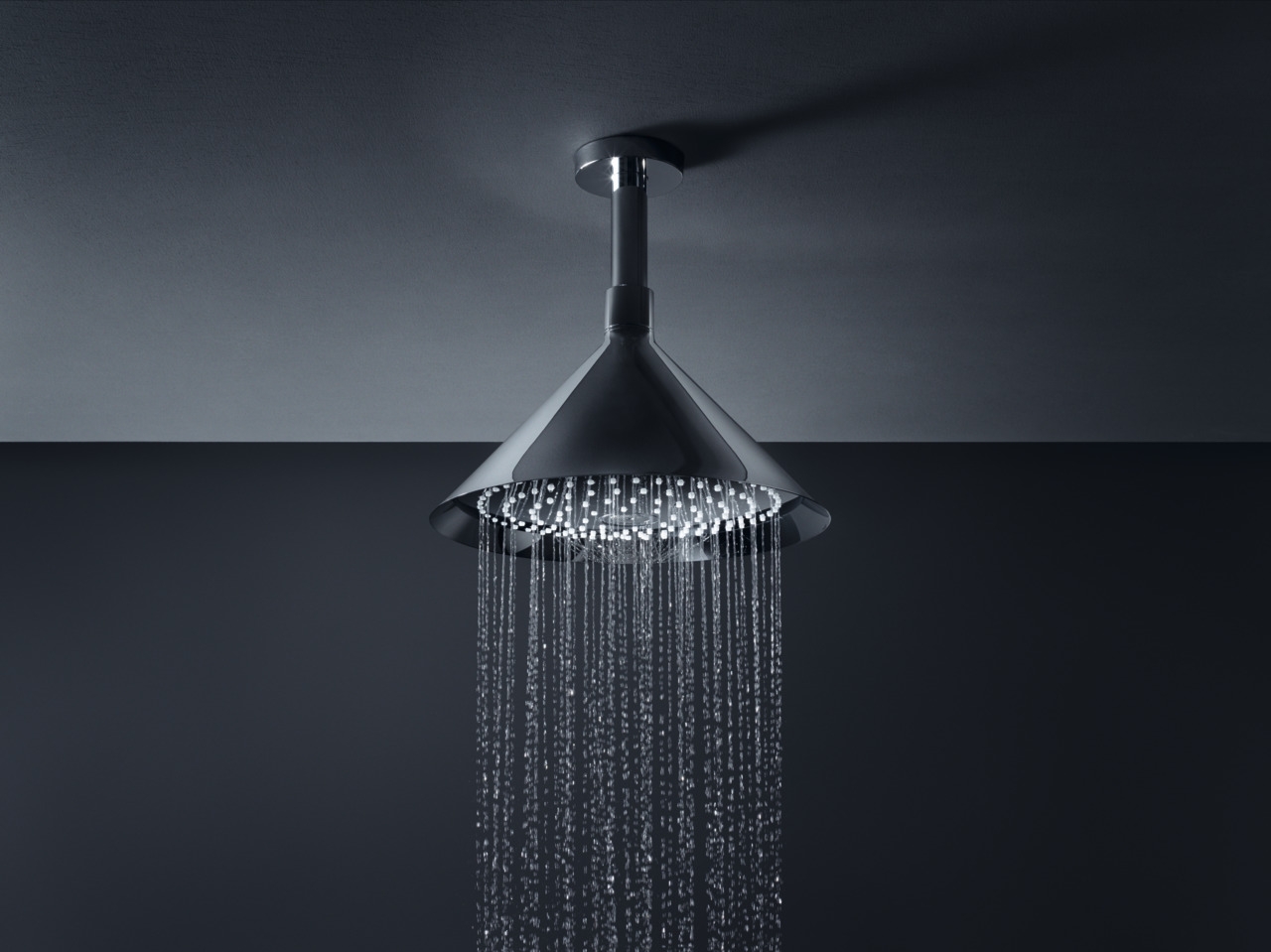

Overhead Shower with Ball Joint and Shower Arm
- Funnel-shaped design
- Shower can be adjusted by up to 18° and by 300 mm in height, shower arm can swivel horizontally in a range of 160°
- Switch between Rain jet and RainAir jet using the Select button
- With QuickClean function
- Flow rate: Rain jet 15 l ⁄ min (at 3 bar), RainAir jet 14 l ⁄ min (at 3 bar)
Hand Shower
- Funnel-shaped design
- QuickClean function
- Flow rate: Rain jet 9 l ⁄ min (at 3 bar)
Valve Handles
- Self-explanatory operation – vertical position means “on”, horizontal position means “off”
- Separate operation of overhead and hand shower
- Good grip thanks to knurled surface
Thermostat Technology
- Precise temperature pre-setting
- Good grip thanks to knurled surface
Please find more technical details here.
