Acoustic Panels and Baffles - Echo Eliminator™ | Acoustical Surfaces

BIM Acoustic Panels and Baffles - Echo Eliminator™
Acoustic Panels and Baffles - Echo Eliminator™ Acoustic Panels and Baffles - Echo Eliminator™ Acoustic Panels and Baffles - Echo Eliminator™ Acoustic Panels and Baffles - Echo Eliminator™ Acoustic Panels and Baffles - Echo Eliminator™ Acoustic Panels and Baffles - Echo Eliminator™

  • Available in

  • Use

    Noise control

  • Applications

    Interior

  • Characteristics

    Sustainable, 100% recyclable, acoustical absorption, lightweight

  • Format

    Wall panels, hanging baffles

  • Colors

    White, Black, Marble Blue, Graphite, Light Gray, Beige

  • Sizes

    24” x 48” (Sizes up to 48” x 96” available, minimum quantities may apply)

  • Certification

    Class A – Non-Flammable (Per ASTM E-84), eligible for LEED™ credits

12 Product Files

AS_EchoEliminator_Baffle_Test_C423_1in3lb_2Layers_16inSpacing

180 KB

pdf
AS_EchoEliminator_BassBuster_DataSheet

800 KB

pdf
AS_EchoEliminator_CeilingPanel_CSISpec

29 KB

docx
AS_EchoEliminator_CeilingWallPanels_DataSheet

3.9 MB

pdf
AS_EchoEliminator_Composite_DataSheet

1.6 MB

pdf
See more
AS_EchoEliminator_Test_C423_A_1in3lb

230 KB

pdf
AS_EchoEliminator_Test_C423_A_1in6lb

240 KB

pdf
AS_EchoEliminator_Test_C423_A_2in3lb

240 KB

pdf
AS_EchoEliminator_Test_E84_1in3lbWhite

1.7 MB

pdf
AS_EchoEliminator_Test_E84_1in6lbWhite

1.3 MB

pdf
AS_EchoEliminator_WallPanel_CSISpec

28 KB

docx
EchoEliminator_AcouStick_DataSheet

2.3 MB

pdf
By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Acoustical Surfaces Logo

Contact manufacturer

Acoustical Surfaces

Acoustical Surfaces Logo

Contact manufacturer

Acoustical Surfaces

More from Acoustical Surfaces

Website Phone

More about this product

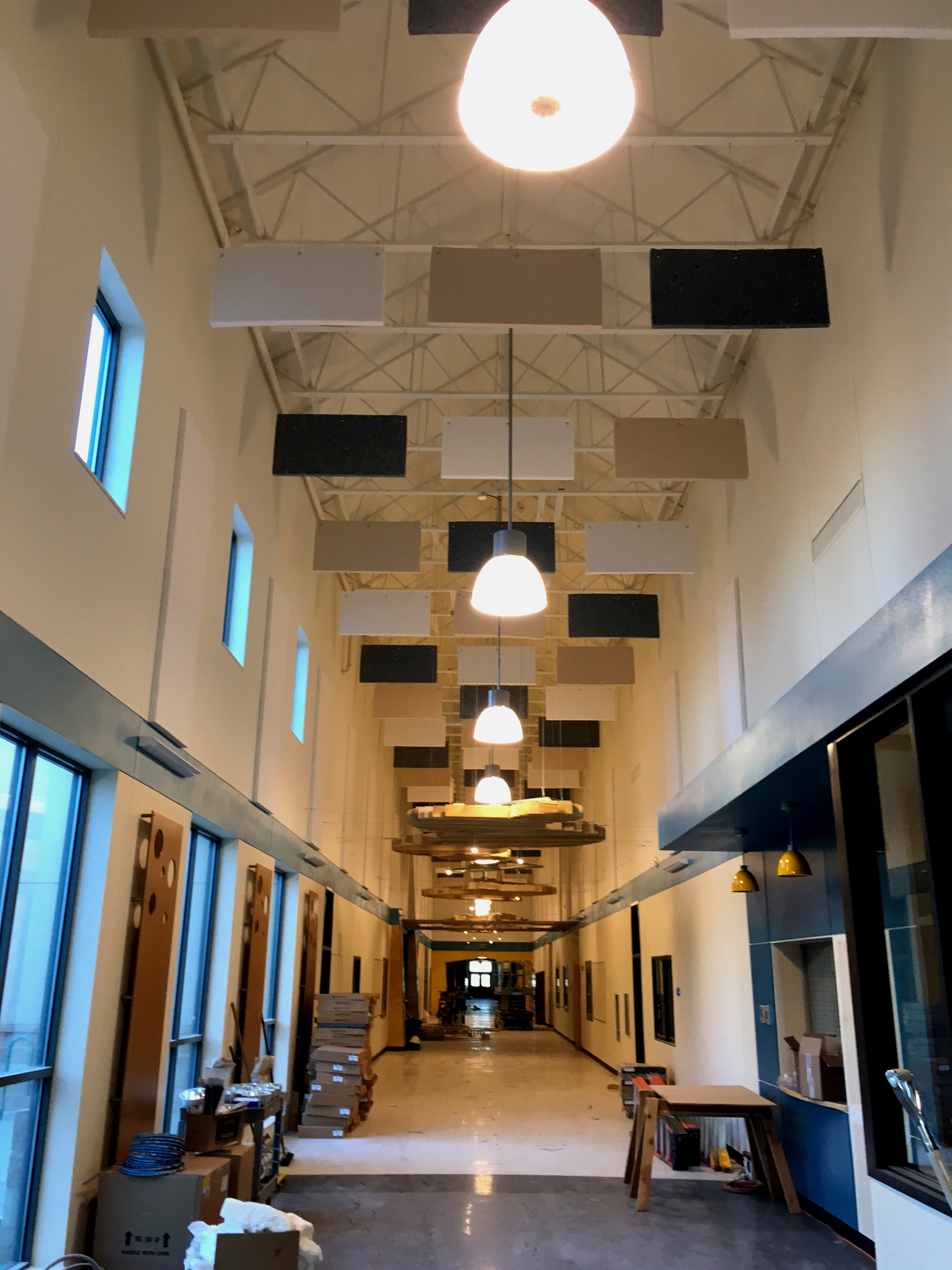

Acoustical Surfaces' Echo Eliminator™ is a high-performing acoustic material made from recycled cotton. With an NRC rating of up to 1.15, this product is ideal for any noise control application. Echo Eliminator™ acoustic panels are easily installed on walls or ceilings, with adhesives or stick pins, to accommodate any space requirements and are eligible for LEED credits, Class A fire rated, and 100% recyclable.

Features

  • Recycled Cotton (Green Acoustical Material)
  • Class A – Non-Flammable (Per ASTM E-84)
  • Lightweight
  • Easy to Install
  • Low Cost
  • High-Performance Acoustical Absorption
  • Relocatable (with Grommets)

Densities

  • 3lb per cubic ft – 1″ & 2″ thickness panels
  • 6lb per cubic ft – 1″ thickness panels

Sound Absorption Coefficients

Acoustical Surfaces WALL PANEL

Mount 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1″ – 3lb./cf. A 0.08 0.31 0.79 1.01 1.00 0.99 0.80
2″ – 3lb./cf. A 0.35 0.94 1.32 1.22 1.06 1.03 1.15
1″ – 6lb./cf. A 0.07 0.30 0.86 1.10 1.05 1.03 0.85


Acoustical Surfaces BAFFLE

Avg. 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz Sabins/Avg.
1″ – 2′ × 4′ 2.43 4.93 8.34 12.35 15.57 16.73 10.30
2″ – 2′ × 4′ 2.40 6.55 12.86 17.46 18.49 16.77 13.85
