Webnet Metal Mesh | Jakob

  • Available in

  • Use

    Interior and exterior
  • Applications

    Closures, railings, facades, green walls, protective nets, safety nets, artwork, fences, zoos, sports areas
  • Characteristics

    Flexible stainless steel mesh, allows two-dimensional and three-dimensional applications and uses, variety of formats, sizes and thicknesses, manufactured upon request, dimensions according to the need of the project.
  • Certification

    Certified in Germany by the German Institute for Building Technology (DIBt) (Z-14.7-557), ISO and DIN

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Jakob Logo

Contact manufacturer

Jakob

Jakob Logo

Contact manufacturer

Jakob

More from Jakob

Website

More about this product

Jakob's Webnet Stainless Steel Mesh is a wire mesh fabricated out of woven stainless steel strands. It is weather-resistant, robust, and requires virtually no maintenance. Available in a range of diamond openings, different cable configurations, and measurements, Webnet's flexible design offers infinite application possibilities.

JakobStainless Steel Mesh has a wide range of applications for indoor and outdoor use including fences, facades, green walls, and railings in high-impact areas, such as zoos and sports areas worldwide. Webnet can be supplied in any color in the RAL spectrum. Colors can be used to highlight Webnet areas as architectural and graphic design elements, or integrate seamlessly into the surrounding structure.

Types

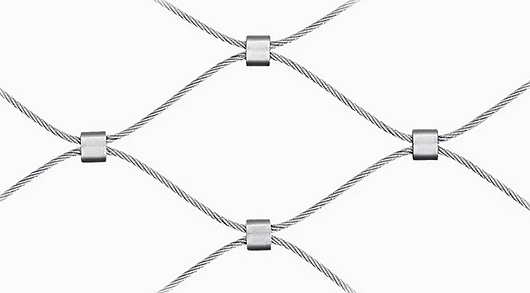

With Sleeves

The standard Webnet is versatile, flexible, and economical.

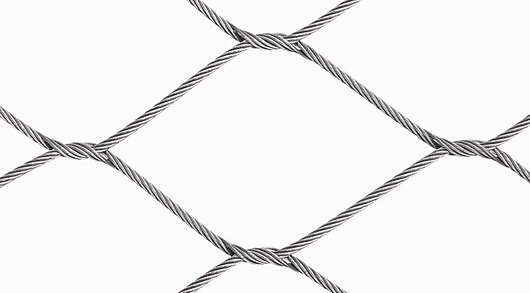

Without Sleeves

Webnet without sleeves is even more transparent than the version with sleeves with almost identical strength values. There are no light reflections from the sleeves.

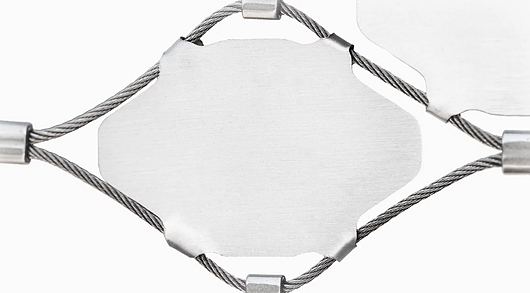

ID

Webnet ID are stainless steel plates that can be integrated into Webnet mesh. They are available in different sizes and blank or colored.

Properties

  • Stainless steel woven wire mesh with superior tensile resilience and flexibility
  • Robust and weather resistant
  • Requires almost no maintenance
  • Delicate structure minimizing visual impairment
  • Fabricated according to customer specifications regarding shape, size, and orientation
  • High-quality corrosion-resistant steel of the material groups AISI 316 and AISI 316L (1.4401 and 1.4404)

Production

The wire rope nets are designed and fabricated in Jakob's factory to the exact size designated in the plans provided by the structural engineer. This greatly simplifies and accelerates the installation of the building structure because no cutting to size or adaptation is required at the job site. The nets are put together by hand and machine-pressed to ensure consistent quality and guaranteed strength values. The corrosion-resistant steel for exterior applications (AISI 316/316L) is processed with care and its quality is monitored continuously.
