Linvisibile FILO 10 Hinged Door | Alba | Linvisibile

Share
  • Use

    Opening and closing systems, partitions
  • Applications

    Residential, office, hospitality, retail
  • Characteristics

    Levels with the wall on both sides, no door frames or jambs, can be coated with almost any material (metal, stone, leather, wood)
  • Sizes

    Width from 700 to 1200 mm / Height from 1900 to 3500 mm / Thickness up to 102 mm
  • Certification

    UL Certification

More about this product

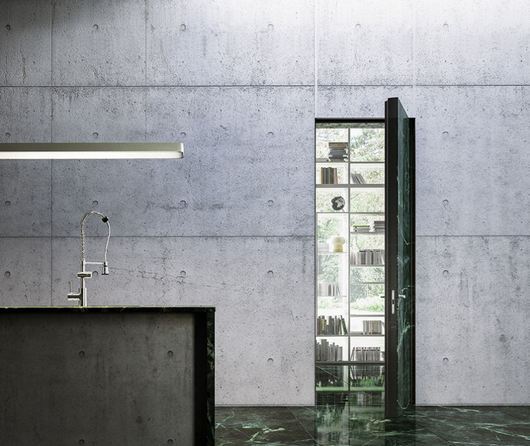

Linvisibile Alba | FILO 10 Hinged door is an exclusive door, which thanks to a panel thickness of 102 mm, allows a perfect flush with the wall on both sides of the panel. The product stands out for only having a 3 mm perimeter gap between the panel and the wall.

Like all Linvisibile products, Alba | FILO 10 Hinged door is distinguished by the use of concealed hinges and the absence of door frames or jambs to achieve seamless continuity between wall and door. It can be coated with almost any type of material (metal, stone, leather) to create special atmospheres, in a tasteful way. There are lacquered (glossy or matt) and wooden versions offered as well.

undefined

Linvisibile Alba | FILO 10 Hinged door consists of:

  • An extruded aluminum frame (EN AW 6060 alloy – Anticorodal 063) that replaces the frame (outer frame-posts) and adapts to walls and plasterboard walls with different thicknesses. Prepared for Pull or Push openings. Paintable with water-based colors of good quality, enamel paints, etc. Can be manufactured in a wide range of available shapes and sizes. Assembly of the frame with MDF triangles put on the two upper corners and from jamb to jamb.

  • A hollow-core structure panel,102 mm thick, made with a perimeter frame in solid wood with high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side. Rebates on the perimeter and seals in PVC. Class E1 low formaldehyde emission;

  • Concealed hinges: totally invisible hinges for doors with aluminum frames. UL certification, 160 kg capacity, 180 ° opening, front length 240 mm. Comply with DIN, sliding bearing functioning. Adjustable hinge on three axes. Standard finish satin chrome, other finishes on demand.

The Concealed door closer is perfect to be installed with a hinged system

Dimensions

Linvisibile Alba | FILO 10 Hinged door is available in the following sizes (clear width, single leaf):

  • Width from 700 to 1200 mm
  • Height from 1900 to 3500 mm

Linvisibile Alba | FILO 10 Hinged door is available in single leaf as well as double.
It can be coated with wallpaper, trims, gobelin, decorative woods, decorations, ceramics, skirting board and mirrors.

Technical Details

  • Frame can be produced without the header
  • The panel can be prearranged to include a mirror or glass
  • A concealed door closure can be applied
