Aluminum Foam Medium Cell Panel | Cymat Technologies Ltd.
Navigate products using your keyboard
  1. ArchDaily
  2. Products
  3. Aluminium Composites
  4. Aluminum Foam Medium Cell Panel

Aluminum Foam Medium Cell Panel | Cymat Technologies Ltd.

Share in Whatsapp
  • Use

    Lightweight panels. Exterior and interior cladding, ceilings, cabinets, doors, terrazzo flooring, table tops, furniture, showroom displays, lighting, fixtures, exhibits, signage, and any application application that you dare to imagine.
  • Applications

    Retail stores, hotels, private and public buildings.
  • Characteristics

    ALUSION™ is produced as continuous flat sheets . Contains up to 100% recycled content, and is 100% recyclable.
  • Colors

    Luminous Aluminum Silver colour which can also be powder coated or painted with wet paint in limitless colour choices.
  • Sizes

    Standard panel size 1220mm W x 2440mm L, 1220 W x 3048 L, 1220 x 3660 L (4’ x 8’, 4’ x 10’, 4’ x12’)

More about this product

Cymat Technologies Ltd, based in Toronto, Canada, is an innovative materials technology company that has the exclusive worldwide rights, for producing Alusion™ Stabilized Aluminum Foam, through patents and licenses.

Cymat Technologies Ltd is a world leader in the production of SAF, Stabilized Aluminum Foam. Based in Toronto, Canada, it is an innovative materials technology company which has the exclusive worldwide rights for producing Alusion™ Stabilized Aluminum Foam, through patents and licenses.

Cymat’s Stabilized Aluminum Foam, marketed under the trade name of Alusion™ for architecture, is a versatile and unique material with virtually limitless design and architectural applications. As well as its unique appearance, it has sound absorbing properties making it ideal for applications requiring both sound absorption and beauty.

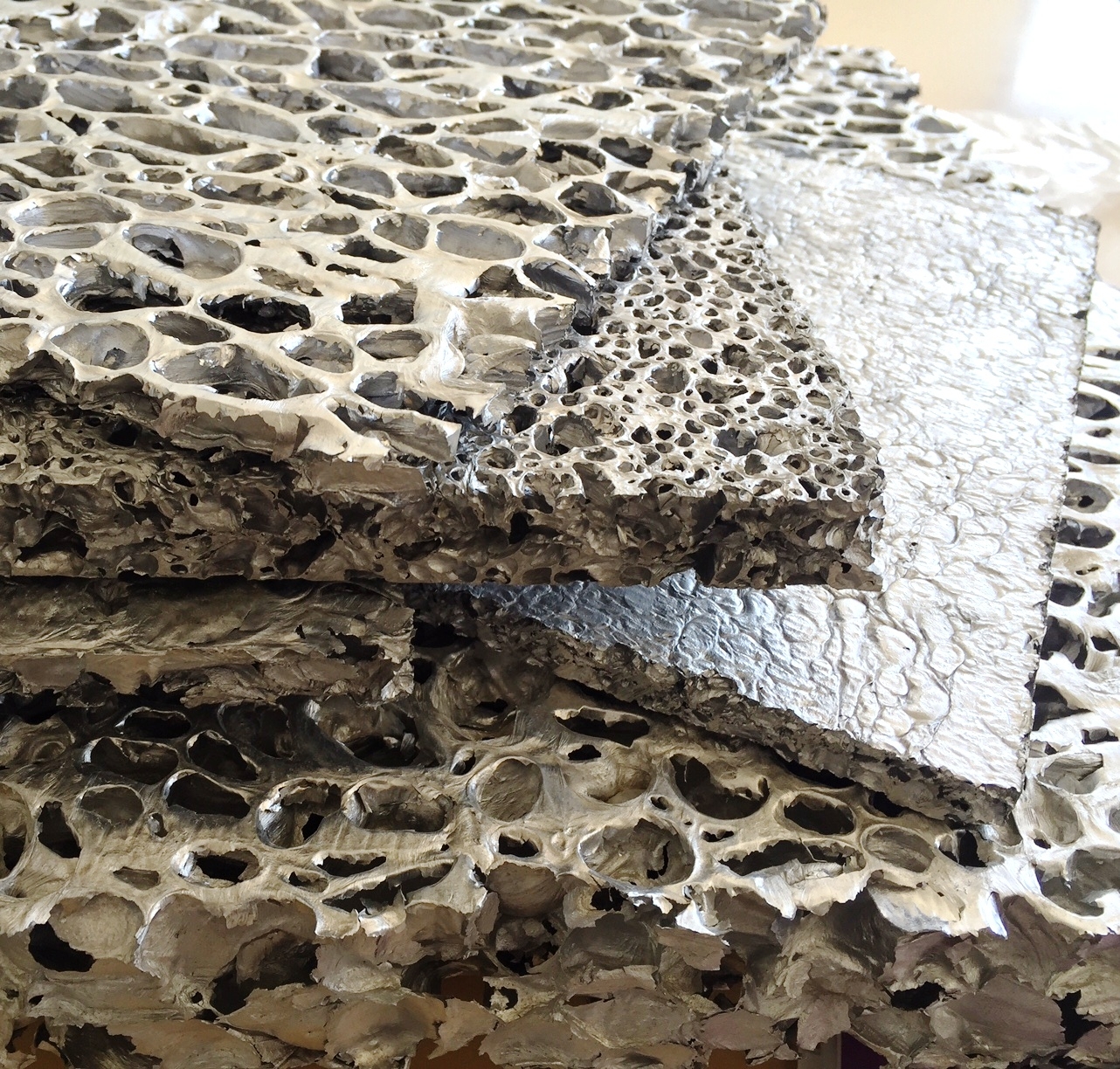

The Alusion™ foam creates strong yet lightweight panels which are similar in appearance to a metallic sponge. It is visually striking, with a modern dramatic look. For architecture it is produced in 12.7mm, 25.4mm, and 43.2mm thicknesses (1/2”, 1” & 1.7”) and three densities (Large Cell, Mid Cell & Small Cell, custom also available). Each thickness and density has its own representative stress/strain curve.

Alusion™ Stabilized Aluminum Foam (SAF)” is buoyant, flame and corrosion resistant in the same way as aluminum.

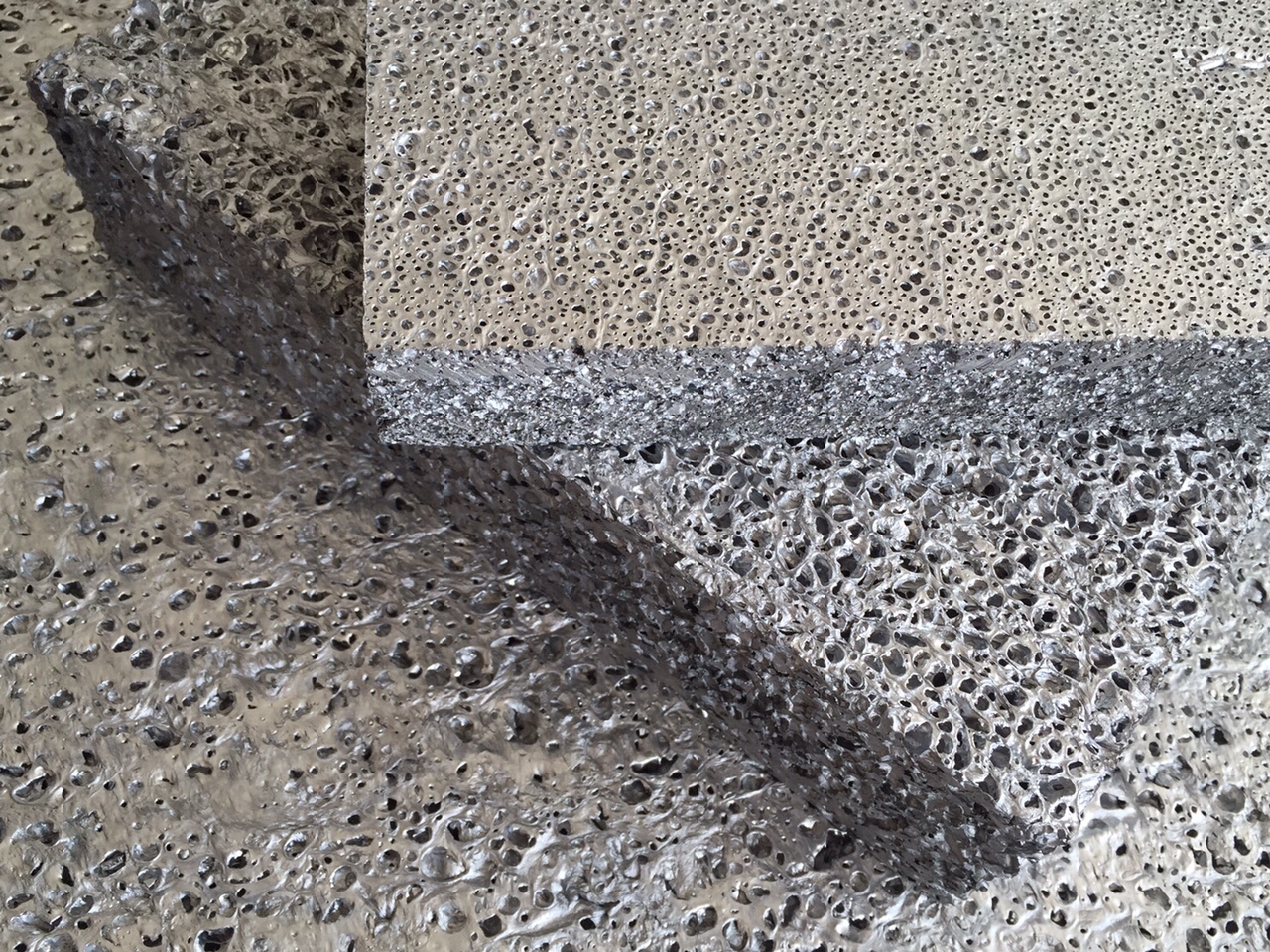

The surface of the material is either left in its solid form as produced, or undergoes surface preparations that provide many different appearances from a solid surface “shimmering” look to a translucent “water froth” look.

The Alusion™ product is produced with a proprietary continuous panel production process, which allows it to have many advantages. The product’s competitive edge is that no one can produce aluminum foam in the dimensions and volumes that Cymat Technologies Ltd can provide, with the overall consistency or even with the random yet uniform look in which it is created, It is light weight and easy to install, and is 100% recyclable.

  • Modern and dramatic appearance.
  • 100% recyclable, and contains up to 100% + recycled content.
  • Acoustic Absorption Properties.
  • Non Combustible with a flame spread of zero.
  • Highly corrosion resistant.
  • The strength, durability, and resilience of aluminum.
  • Windload testing (164 mile per hour + / 263 km/hr+).
  • Colours available: Luminous Silver colour which can also be powder coated in limitless colour choices.


Other surface solutions:

The material can be resin coated, and water jet cut with a specialized WJ process only by Cymat Technologies Ltd. Special powder coats and wet paints can be applied which render the product 100% salt resistant and chemically resistant.

Testing is available upon demand.

MID CELL Dimensions: 12.7mm, 25.4mm

Standard panel size 1220mm W x 2440mm L, 1220 W x 3048 L, 1220 x 3660 L (4’ x 8’, 4’ x 10’, 4’ x12’).

undefined

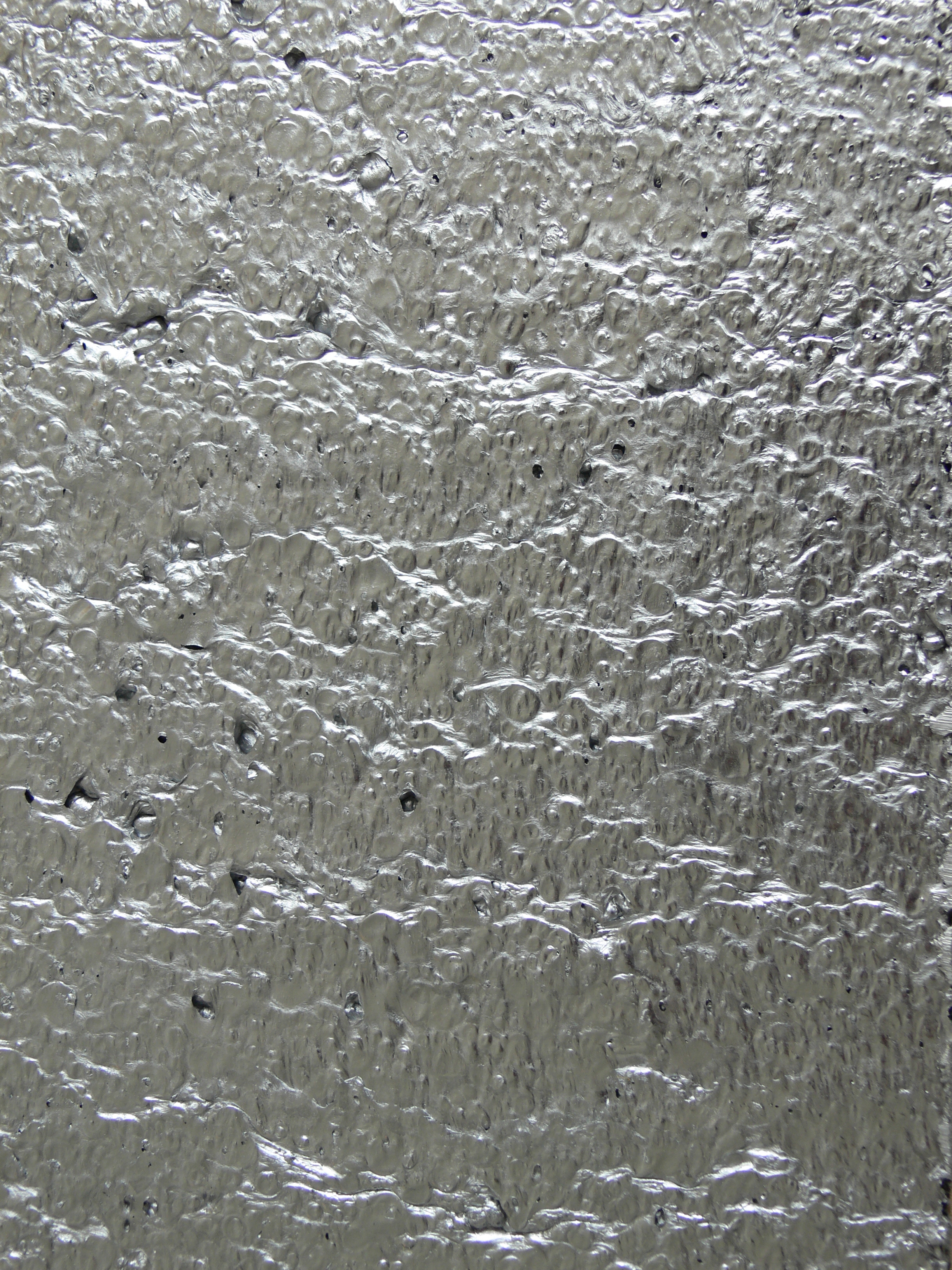

Alusion Natural - Mid Cell Natural (available in 12.7mm & 25.4mm)

undefined

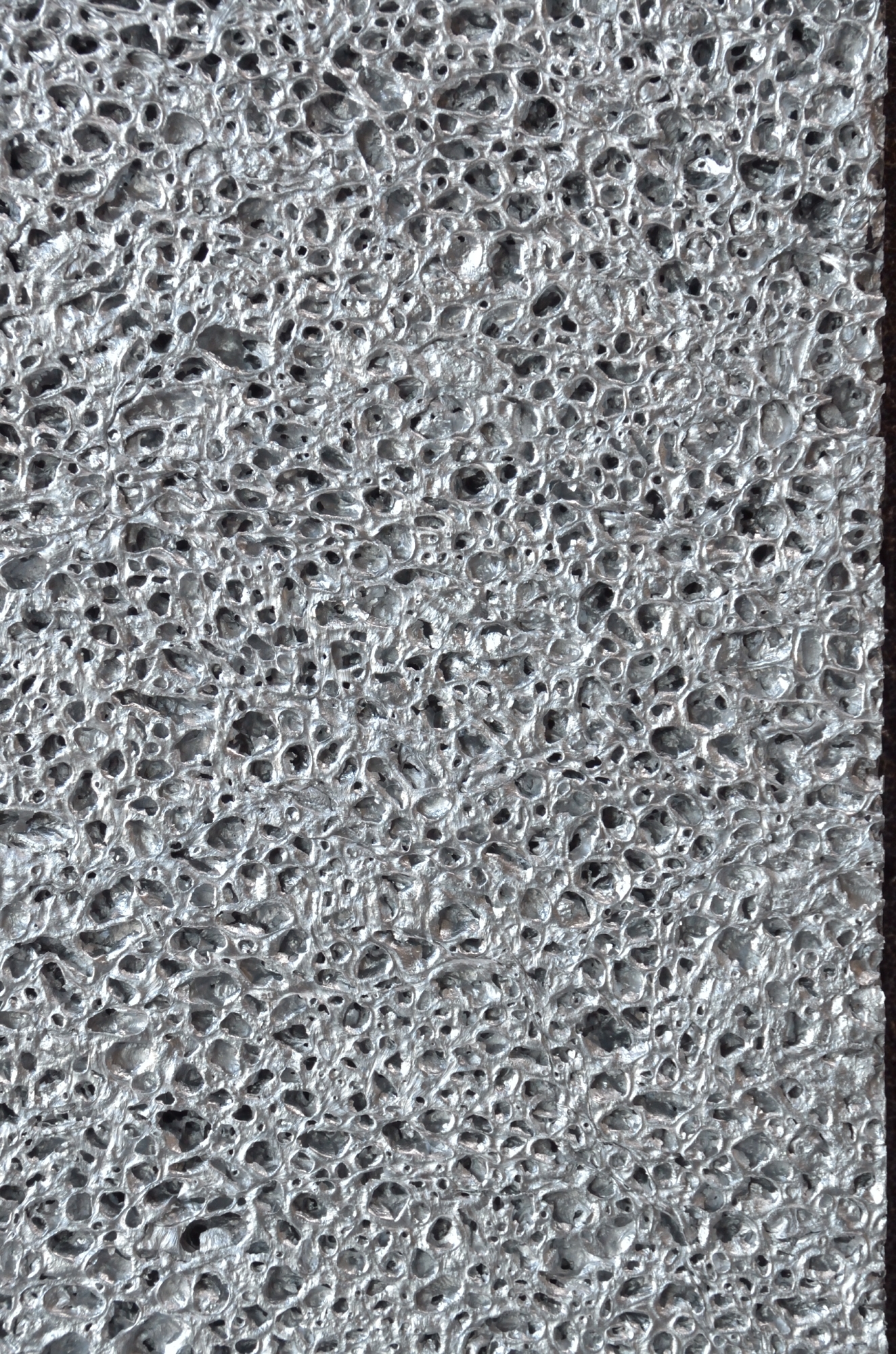

Alusion Open Cell One Side open Top - available in 12.7mm & 25.4mm (custom also available)

undefined

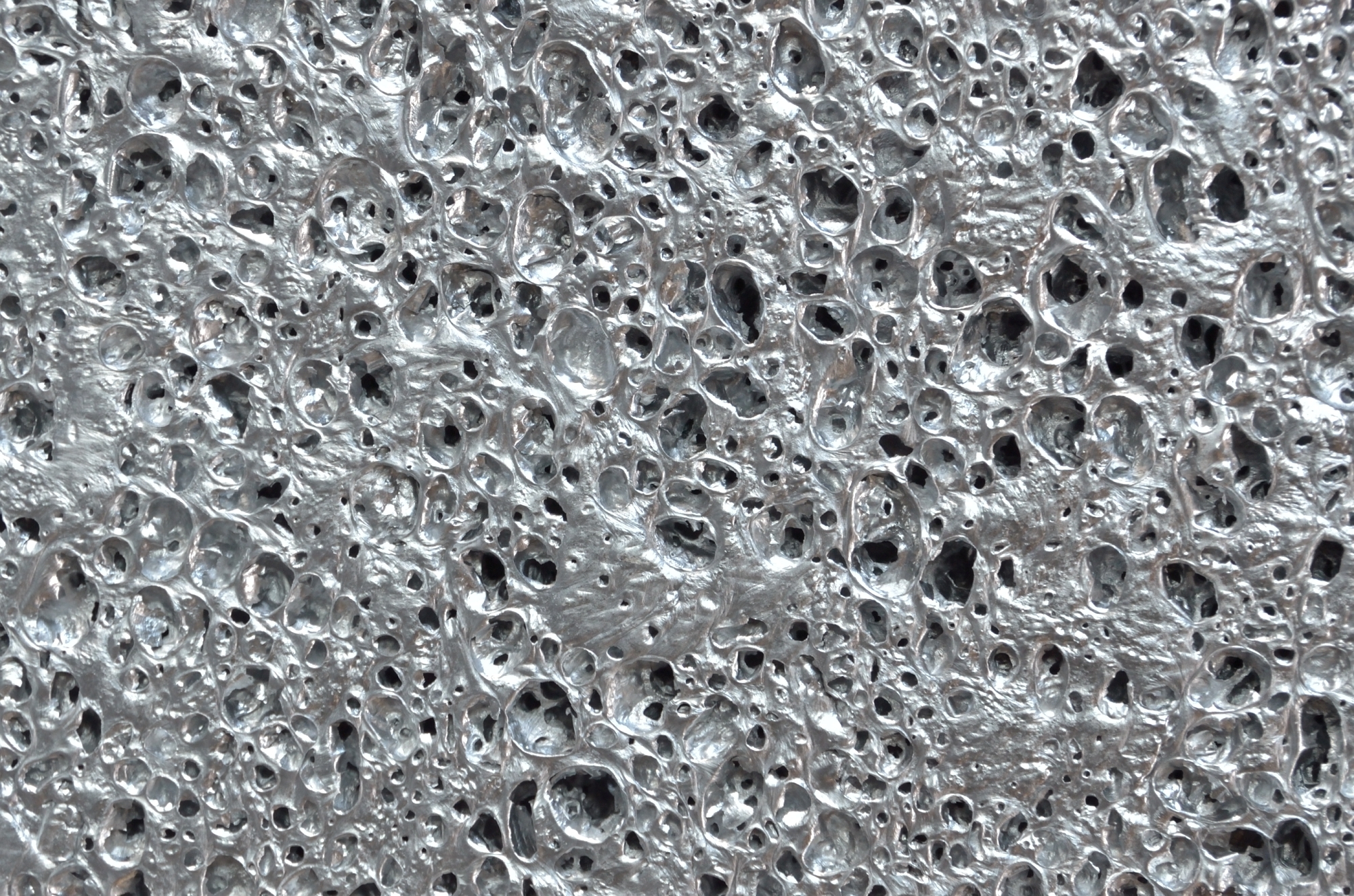

Alusion Open Cell One Side open Bottom - available in 12.7mm & 25.4mm (custom also available)

Examples of applications

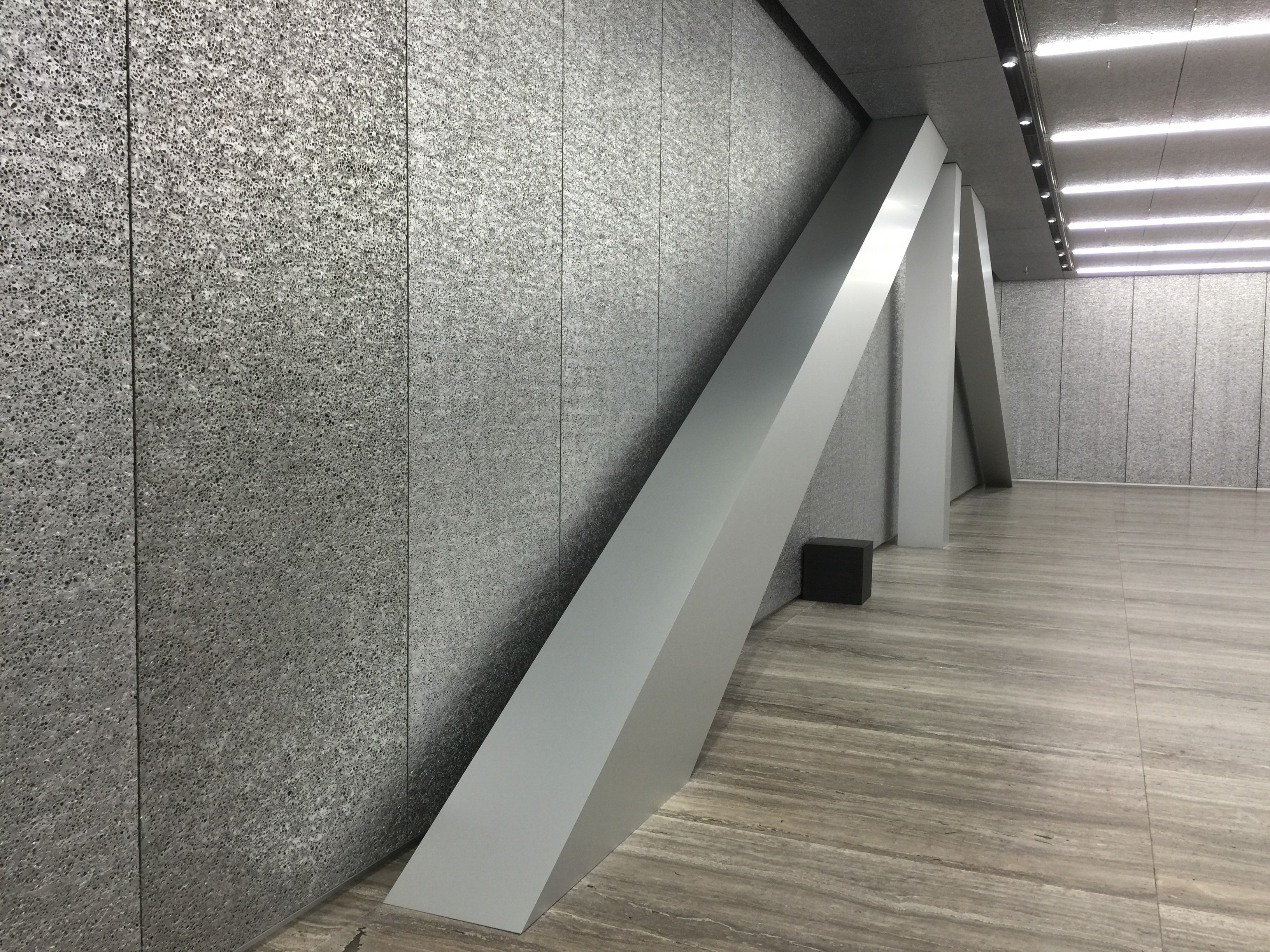

  • Facades & Interior cladding
  • Showroom Displays
  • Restaurants and Bars
  • Offices and Apartment Buildings
  • Ceiling Tiles
  • Specialty glass walls or doors
  • Cabinetry and Furniture
  • Terrazzo Flooring
  • Table tops
  • Signs
  • Lighting
  • Fixtures and exhibits
  • Sky lights & Daylighting

Alusion™ for Architecture & Design:
Please contact through email or by phone
Email: sales@alusion.com
Direct Tel. for Alusion (Canada): +1-905-696-2442
