Knotwood specialises in crafting premium aluminium products with the natural look of timber, delivering greener, safer, and stronger solutions for the architecture, construction, and design industries. Their range of products combines the warmth of wood with the durability of aluminium, including Clip Battens for contemporary cladding applications.

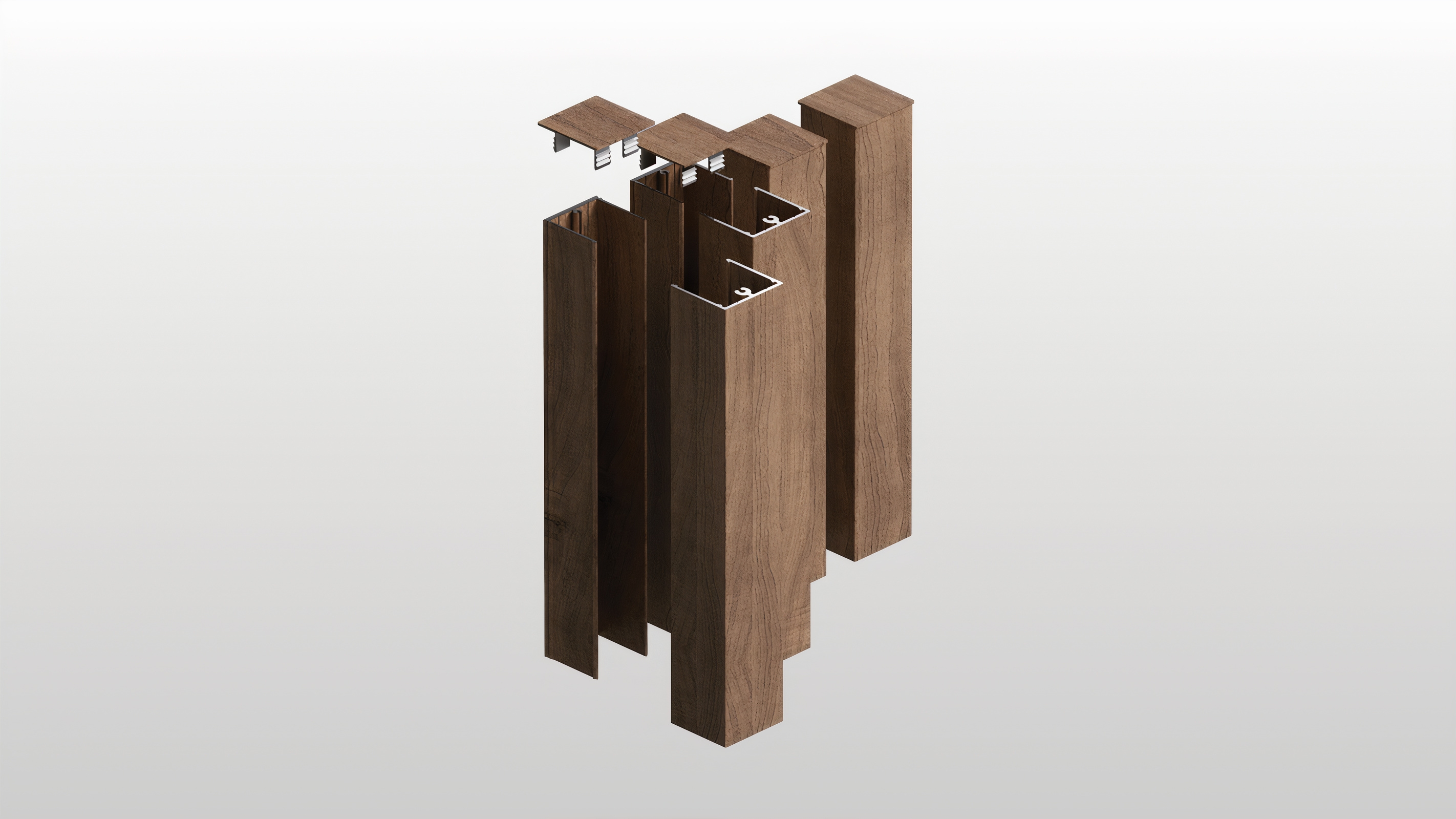

Cyclonic wind, sea salt & spray tested, Knotwood's clip battens are designed to conceal fixings for a clean, seamless finish. Consisting of two separate components and offered in a variety of bracket sizes and combinable profiles, Knotwoods clip battens allow for flexibility to create unique looks. Further customisation may be achieved by the battens' ability to vary spacing and sequencing, producing different visual effects and distinct patterns. Knotwood's clip battens are also available in a mix of timber colours and the flexible battens allow for installation around curves and arches, enabling a wider range of design applications.
| Profiles: | | | Brackets | - Batten Bracket 25 x 25mm (M), 25 x 50mm (M), 50 x 50mm (M) V2, 75 x 50mm (M)
| | Squares | - Batten 25 x 25mm (F), 32 x 32mm (F), 40 x 40mm (F), 50 x 50mm (F) V2
| | Rectangles | - Batten 25 x 50mm (F), 25 x 75mm (F), 25 x 100mm (F), 25 x 150mm (F), 50 x 100mm (F) V2, 50 x 150mm (F) V2, 50 x 200mm (F) V2, 75 x 150mm (F)
| | Curves | - Dome Batten 32 x 50mm (F), 32 x 75mm (F), 50 x 54mm (F)
- Elliptical Batten 50 x 150mm (F), 50 x 200mm (F)
| | Angulars | - Angle Batten 50 x 80mm (F)
| | Wide | - Wide Batten 50 x 25mm (F), 75 x 25mm (F), 100 x 25mm (F), 150 x 25mm (F)
| | Joiners | - Batten Joiner 45º Angle - 50mm
- Batten Joiner - Back to Back 50mm x 100mm
- Batten Joiner Extension - 50mm x 150mm
| |
| Additional Specifications | |
| Material | 6063 T6 Temper extruded aluminium alloy. |
| Finish | Sublimated timber grain surface with a powder-coated base. |
| Length | 6500mm. |
| Warranty Life | 15 year limited. |
Sustainability: 100% Recyclable Aluminium, Non-Chromate Pre-Treatment, VOC-free Powder Coat.
