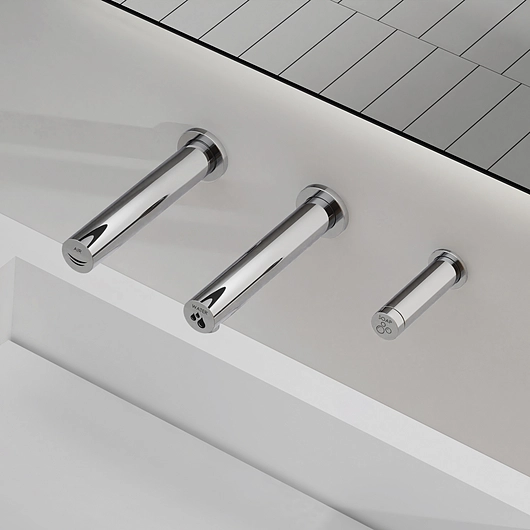

The All-in-One station from Mediclinics offers a hand washing and drying system that is integrated into the washbasin itself. The station includes an automatic soap dispenser, tap, and hand dryer. It can be wall-mounted or surface-mounted to the washbasin itself. The All-in-One system can be supplied as a set or individually as stand-alone products. The system has a minimalist design to suit a variety of spaces and is made of chrome-plated brass and stainless steel with a bright finish (UCM093A) and chrome-plated brass with a bright finish (UCM092A).
Models
| UCM093A Bright Finish | UCM092A Bright Finish |
| | |
Options
Hand dryer and water tap + Soap dispenser ( UCM092A) or Hand dryer + Water tap + Soap dispenser (UCM 093A).
Specifications Sensor Hand Dryer - UCM093A and M092A
| Voltage | 220-240V |
| Frequency | 50/60Hz |
| Electrical Isolation | Class I |
| Total Power | 420-1,500W |
| Drying Time | 10-15 seconds |
| Air Velocity | 190-400Km/h |
| Sound Pressure | 67-72dBA |
| Protecting Rate | IP23 |
| Consumption | 3.2 –6.4 A |
| Motor Power | 420 – 1,100 W |
| Rpm | 19,000 – 30,000 |
Heating Element Power
| 400 W (“ON/OFF” switch) |
| Security Cut-Off | 60” |
| Cover Thickness | 1.5 mm |
| Air Temperature (10 cm distance/22oC) | 42 oC |
| HEPA Filter Media | Optional |
| Plug-in System | Optional |
| Ionizer (“Ion Hygienic”) | Optional |
| Ai-Freshener Tablet | Optional |
Specifications Sensor Faucet - GA003AC
| Power Supply (adaptor) | 220-240V – 50/60Hz |
| Water Pressure Work Range | 1 – 3 bars |
| Water Flow (at 3 bar) | 5.0 L/min |
| Battery Life (4xAA) | 108,000 cycles |
| Sensor Range | 5-25 cm |
| Security Cut-off | 60” |
Specifications Soap Dispenser - DJ003AC
| Power Supply (adaptor) | 220-240V – 50/60Hz |
| Battery Life | 60,000 cycles |
| Sensor Range | 5-25 cm |
| Recommended Soap Viscosity | 100 – 3,500 cps |
| Soap Dose | 0.5, 1.0, 1.5 or 2.0 ml |
Sensor Water and Soap Dispenser Tap - GAJ002AC
| Power Supply (adaptor) | 220-240V – 50/60Hz |
| Battery Life | 35,000 – 40,000 hand wash cycles (water + soap) |
| Sensor Range | 5-25 cm |
| Security Cut-off | 60” |
| Recommended Soap Viscosity | 100 – 3,500 cps |
Water Pressure Work Range
| 0.5 – 8 bars |
Soap Dose
| 0.5, 1.0, 1.5 or 2.0 ml |
| Water Flow | 5.0 L/min |
* See the technical characteristics of the soap dispenser and the water tap in the brochures
