Automatic Wash and Dry Stations - All-in-One | Mediclinics

  • Available in

  • Use

    Faucet, drying station, soap dispenser
  • Applications

    Public bathrooms
  • Characteristics

    Integrated system, automatic controls, wall-mounted or surface-mounted, minimalistic design
  • Certification

    GS,CB, EMC,WRAS

3 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.

2 General Catalogs

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Mediclinics Logo

Contact manufacturer

Mediclinics

Mediclinics Logo

Contact manufacturer

Mediclinics

More from Mediclinics

Website Phone

More about this product

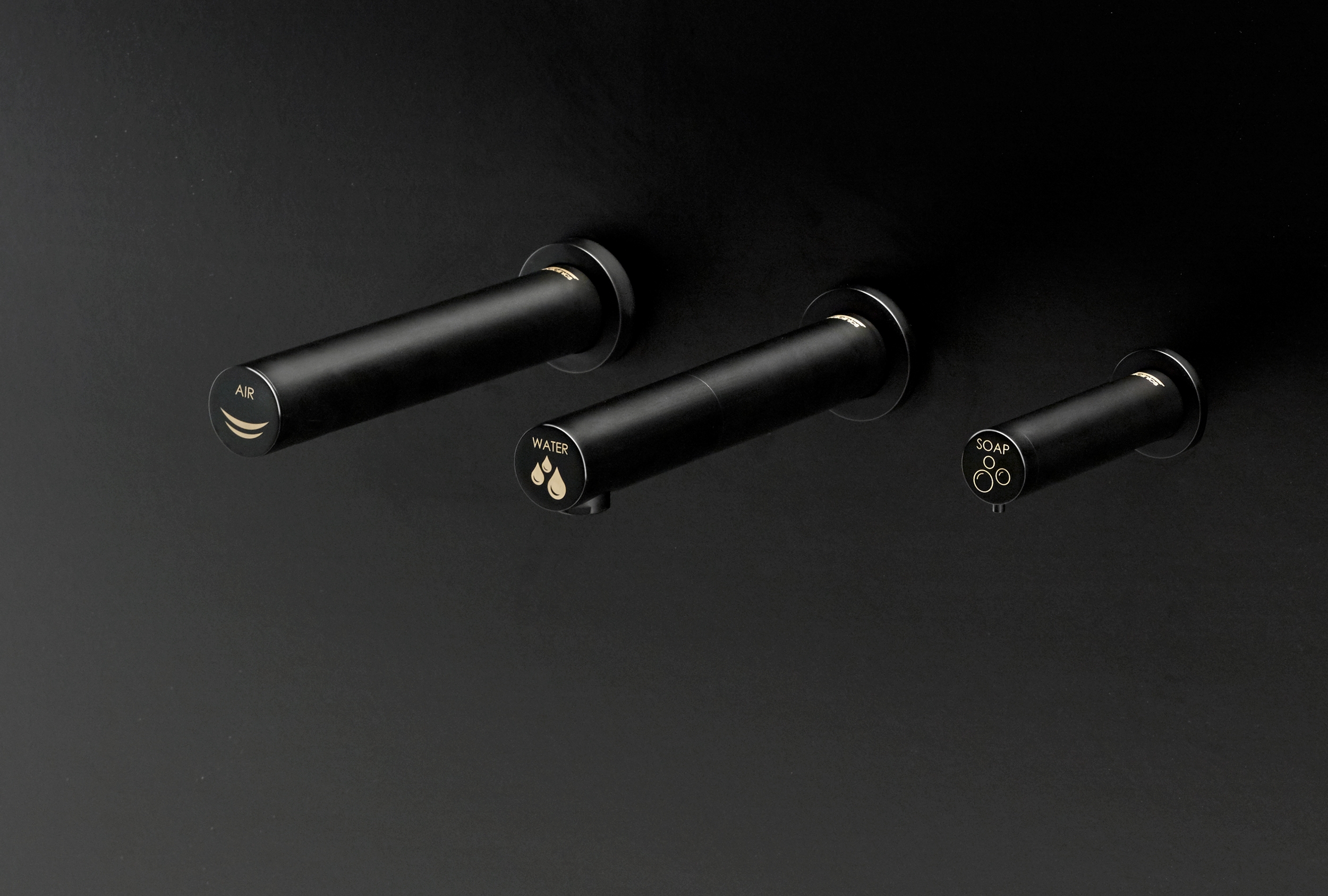

The All-in-One station from Mediclinics offers a hand washing and drying system that is integrated into the washbasin itself. The station includes an automatic soap dispenser, tap, and hand dryer. It can be wall-mounted or surface-mounted to the washbasin itself. The All-in-One system can be supplied as a set or individually as stand-alone products. The system has a minimalist design to suit a variety of spaces and is made of chrome-plated brass and stainless steel with a bright finish (UCM093A) and chrome-plated brass with a bright finish (UCM092A).

Models

UCM093A Bright Finish UCM092A Bright Finish

Options

Hand dryer and water tap + Soap dispenser ( UCM092A) or Hand dryer + Water tap + Soap dispenser (UCM 093A).

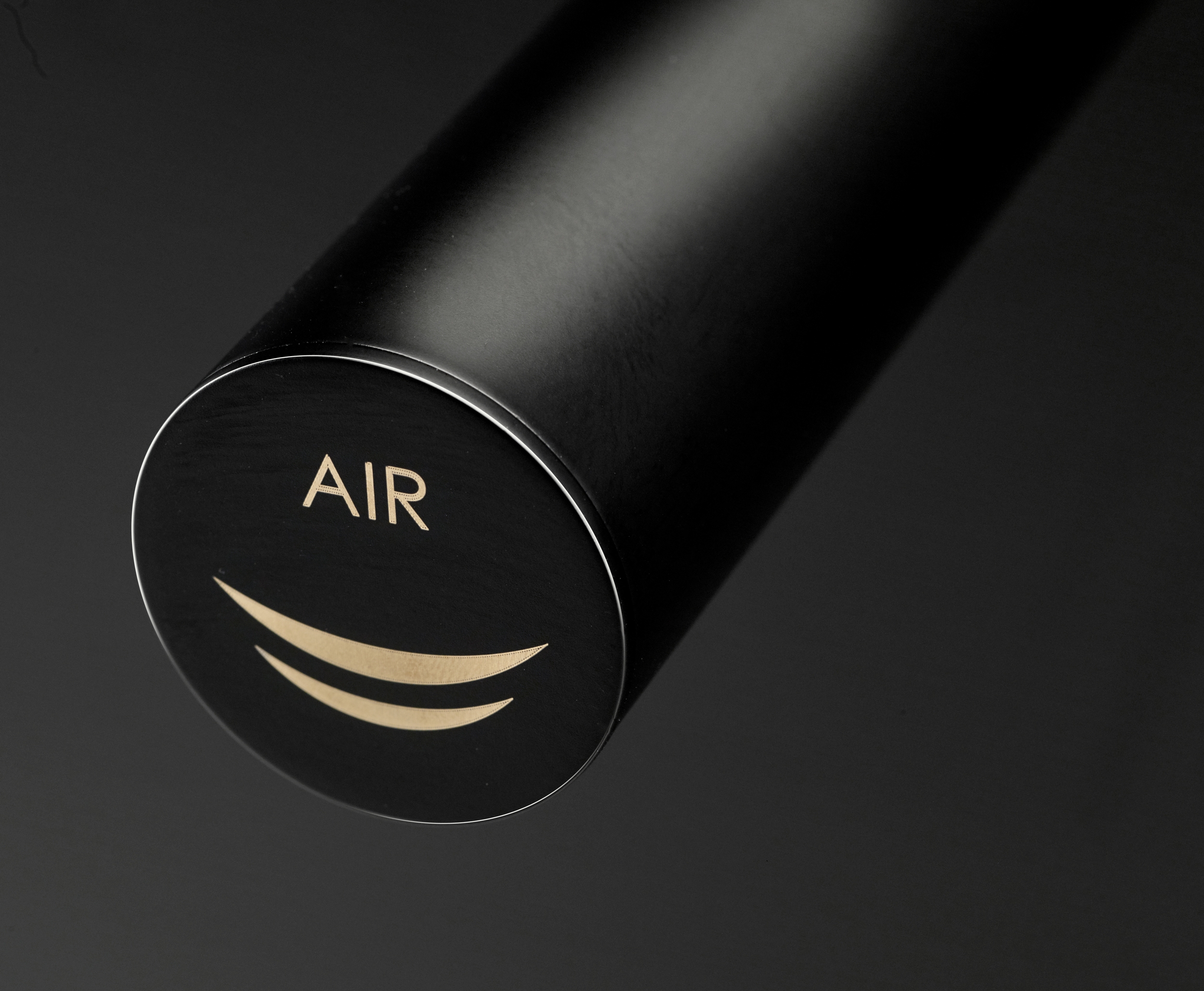

Specifications Sensor Hand Dryer - UCM093A and M092A

Voltage 220-240V
Frequency 50/60Hz
Electrical Isolation Class I
Total Power 420-1,500W
Drying Time 10-15 seconds
Air Velocity 190-400Km/h
Sound Pressure 67-72dBA
Protecting Rate IP23
Consumption 3.2 –6.4 A
Motor Power 420 – 1,100 W
Rpm 19,000 – 30,000
Heating Element Power
400 W (“ON/OFF” switch)
Security Cut-Off 60”
Cover Thickness 1.5 mm
Air Temperature (10 cm distance/22oC) 42 oC
HEPA Filter Media Optional
Plug-in System Optional
Ionizer (“Ion Hygienic”) Optional
Ai-Freshener Tablet Optional

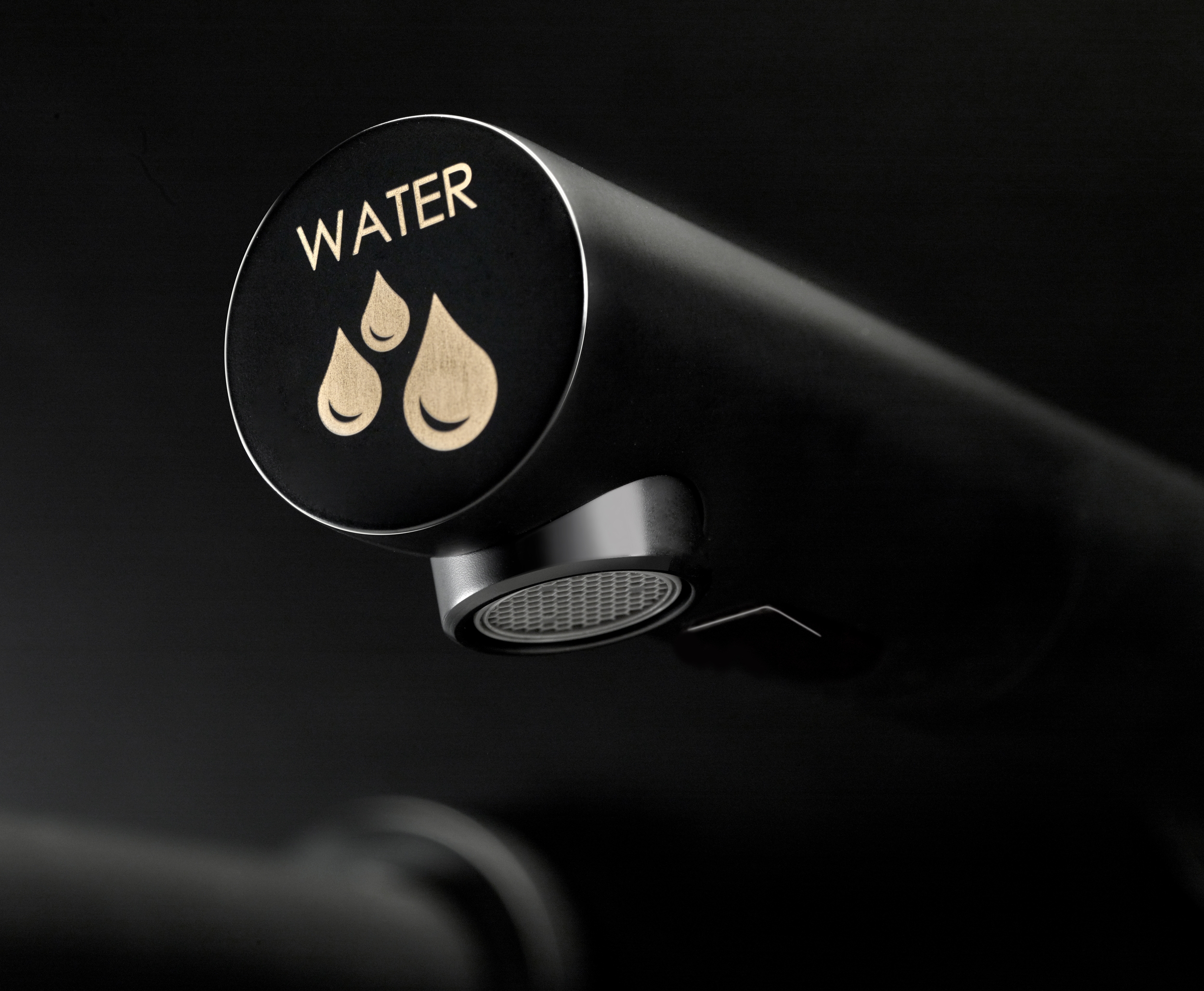

Specifications Sensor Faucet - GA003AC

Power Supply (adaptor) 220-240V – 50/60Hz
Water Pressure Work Range 1 – 3 bars
Water Flow (at 3 bar) 5.0 L/min
Battery Life (4xAA) 108,000 cycles
Sensor Range 5-25 cm
Security Cut-off 60”

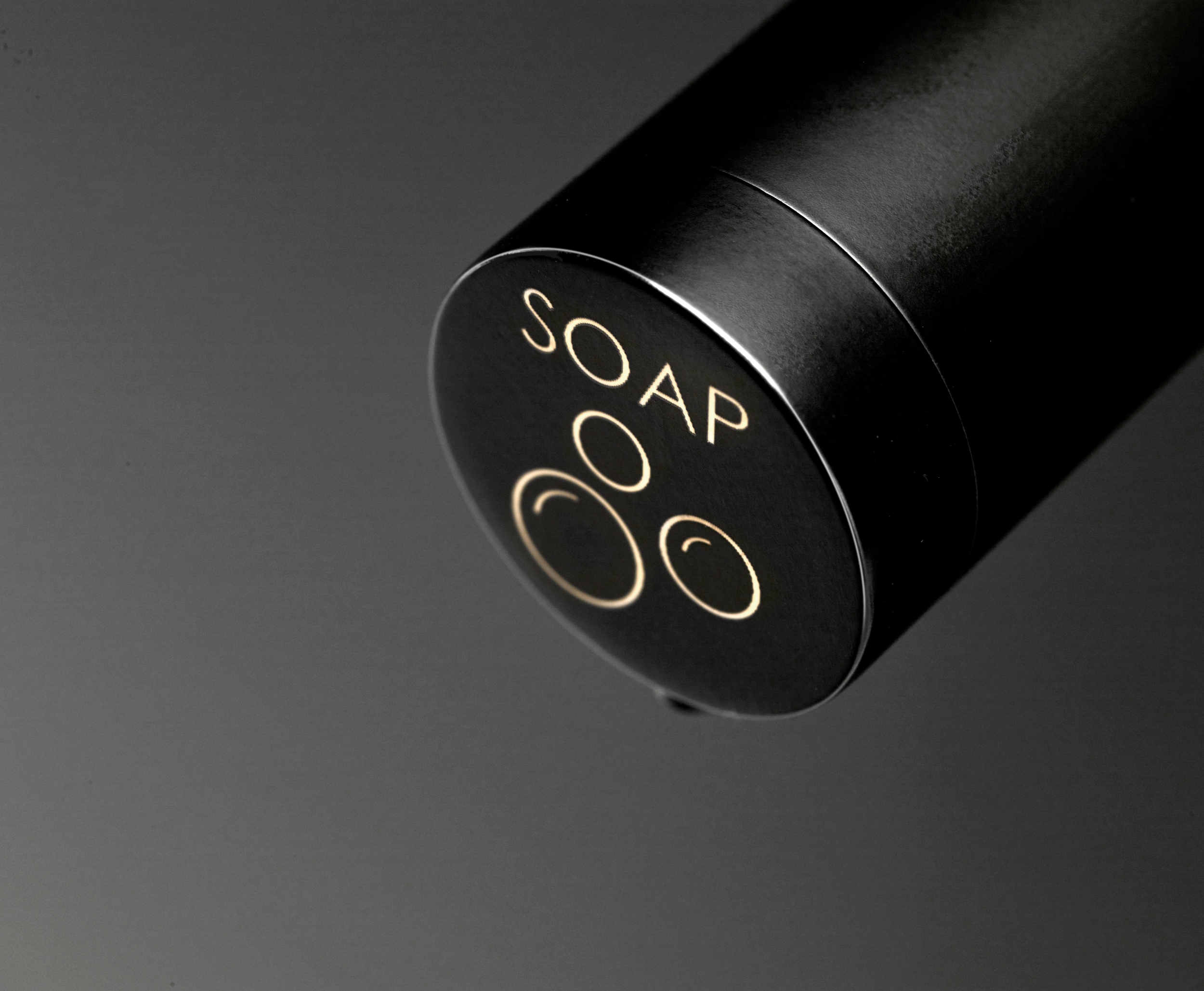

Specifications Soap Dispenser - DJ003AC

Power Supply (adaptor) 220-240V – 50/60Hz
Battery Life 60,000 cycles
Sensor Range 5-25 cm
Recommended Soap Viscosity 100 – 3,500 cps
Soap Dose 0.5, 1.0, 1.5 or 2.0 ml

Sensor Water and Soap Dispenser Tap - GAJ002AC

Power Supply (adaptor) 220-240V – 50/60Hz
Battery Life 35,000 – 40,000 hand wash cycles (water + soap)
Sensor Range 5-25 cm
Security Cut-off 60”
Recommended Soap Viscosity 100 – 3,500 cps
Water Pressure Work Range
0.5 – 8 bars
Soap Dose
0.5, 1.0, 1.5 or 2.0 ml
Water Flow 5.0 L/min

* See the technical characteristics of the soap dispenser and the water tap in the brochures
