Vertical Barcode House / Gayuh Dudi Utomo

Jan 2011

Uploaded by Andrew Rosenberg — Filed under: Houses ,Selected , gayuh budi utomo ST, Indonesia

▼

Add this to My Bookmarks:

share by email

share by email

Architects: gayuh budi utomo ST
Location: Perum Pandugo 1 blok PC – 6, Rungkut Surabaya, East Java, Indonesia
General Contractor: karya Muda CV
Project area: 200 sqm
Project year: 2009
Photographs: Sonny Sandjaya

The owner of the building is a graphic design manager at a cigarette company in Surabaya. The architects chose to incorporate some of these visual ideas within the design of the building.

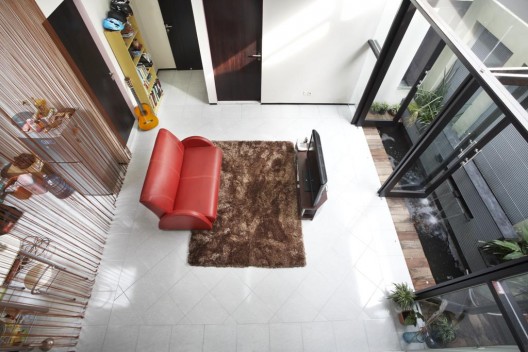

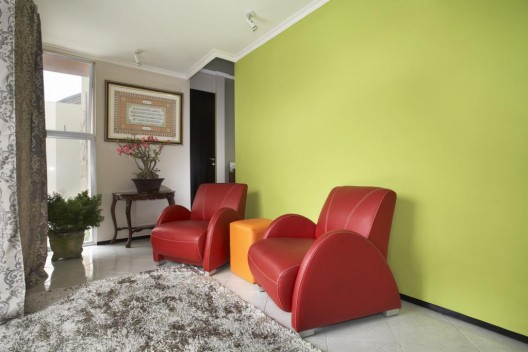

The interior spaces are focused on the family. The central core is the heart of the families’ activities, with the more public spaces having visual separation providing more privacy for the family.

The owners wanted to incorporate a tropical concept into the design of this house. These ideas can be seen in the shape of the roof, reflecting a sandbar shape, and the site location of the house. The situation of the home within its plot allows for consistent wind flow that provides natural ventilation.

layout plan copy

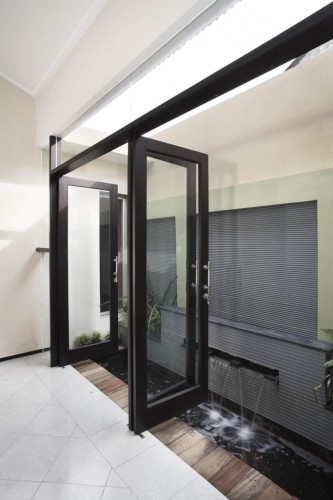

The design provided side openings that allow light, mainly in the morning, to illuminate the spaces.

The front facade has a variety of materials. The contrasting colors of material offset vertical iron slats with the use of natural stone rocks, complement one another..

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: © Sonny Sandjaya

: layout plan copy

: front and section copy

* Location to be used only as a reference. It could indicate city/country but not exact address.
