Village in the Air / Építész Stúdió

Courtesy Építész Stúdió

Építész Stúdió has shared with us their entry, Village in the Air, for the A101 Bock City Competition in . Information from the architect as well as additional images after the break.

Courtesy Építész Stúdió

THE MAIN QUESTIONS WERE NEXT FOR US:

What is the largest human building scale?
A kind of village-feeling: our children are playing in the park, hearing their voice we are looking out of the window and they are able to recognize our face. So we imagined a building with two, three or maximum four levels. Also this is the height where the trees usually grow up to and where the chirping birds still can be heard, so we live close to the nature.

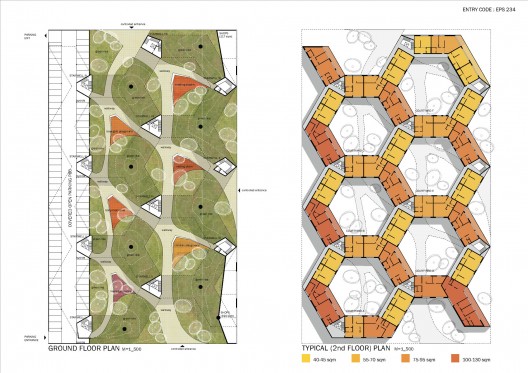

Floor Plans

How can we provide enough green area using this low building height?
Lifting up the building and making a common park on the whole site. Furthermore using the building top as green roof.

Plan / Elevation / Section

How can we split this amount of people to smaller communities?
Articulating by courtyards, which are connected to the neighbors on the park level while providing micro climates like big atriums.

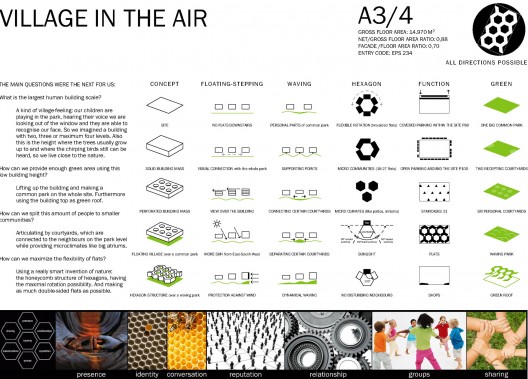

Presentation Board

How can we maximize the flexibility of flats?
Using a really smart invention of nature: the honeycomb structure of hexagons, having the maximal rotation possibility. And making as much double-sided flats as possible.

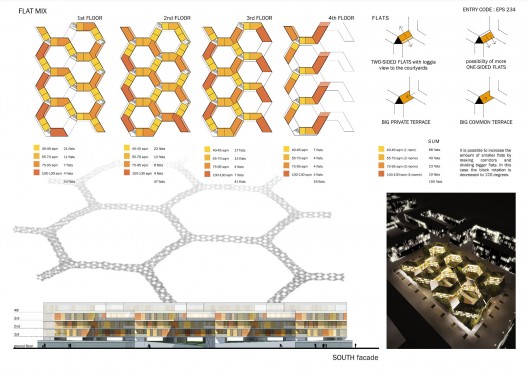

Presentation Board

Architect: Építész Stúdió
Location: Moscow,
Use: Residences
Site Area: 9,375 m2
Total Floor Area:15,000 m2
Flats: 150
Number of Floors: GF+4

Cite: Jarz, Hank. "Village in the Air / Építész Stúdió" 27 Dec 2010. ArchDaily. Accessed 28 Nov 2014. <http://www.archdaily.com/?p=98984>
