Glass Townhomes / Sander Architects

© Sharon Risedorph

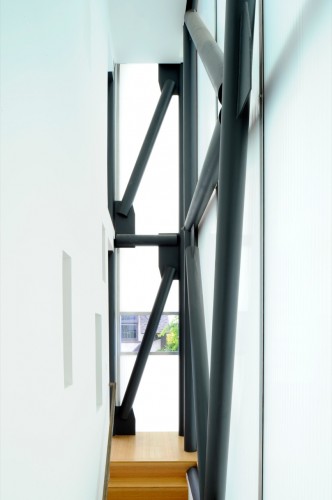

The building is divided vertically down the middle to create a pair of three-story condominiums that use many of the eco strategies and materials that have become Sander Architects signatures. Playful architectural details include double-height translucent walls, exposed steel structure, cutouts in interior walls, and plywood railings and ceiling finishes.  More about this project following the break.

Architects: Sander Architects, LLC
Location: Venice, ,
Client: Marc and Heather Venegas
Contractor: Icaza Construction and Bugsy Everett
Photographs: Courtesy of Sander Architects

© Sharon Risedorph

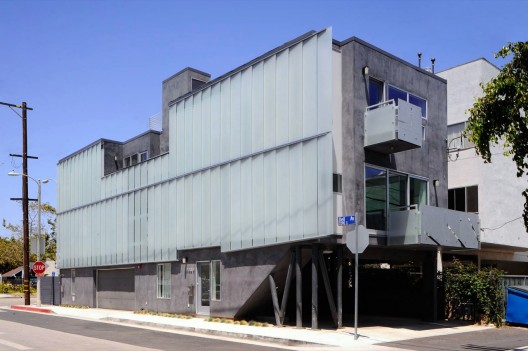

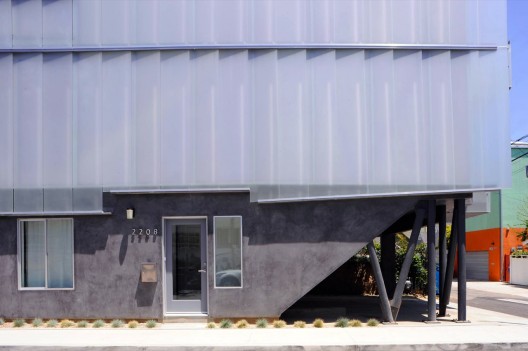

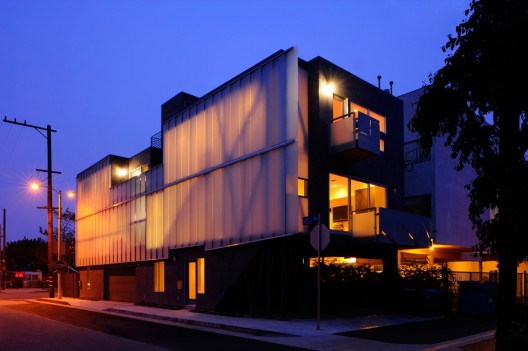

The exterior skin of the building is a double-layer of translucent materials: multi-cell acrylic panels provide the waterproofing inside lapped scales of glass. From the interior this creates a dramatic double-height wall that fills the rooms with light during the day and allows the interior lights to glow from the street at night. The theme of glass continues through the house with the glass detailing in the kitchens and bathrooms.

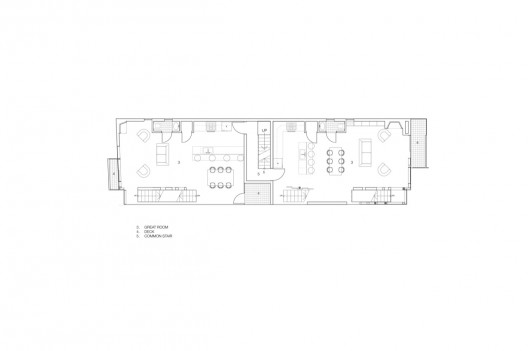

second floor plan
© Sharon Risedorph

Some of the green aspects include: extensive glazing to maximize natural daylighting throughout the house, multi-cell acrylic panels (with high R-value) for glazing to reduce heat loss/gain, passive cooling promoted by window placement to create natural air-flow, on-demand water heater, low-flush toilets, low-VOC paint, bamboo flooring, standard incandescent lighting designed to be convertible to compact fluorescent, cabinetry built with materials from managed forests, minimal landscaping with native plants to minimize water, proximity to public transportation + all basic amenities within walking distance.

© Sharon Risedorph
© Sharon Risedorph

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Glass Townhomes / Sander Architects" 15 Dec 2010. ArchDaily. Accessed 02 Aug 2014. <http://www.archdaily.com/?p=96578>
