NOVIstipic / UPI-2M

© Davor Konjikusic

Architects: UPI-2M
Location: Zagreb Lucko, Hrvatska,
Investor: Stipić Grupa
Author: – Vedran Jukic, Berislav Medic, Alan Leo Plestina
Architectural Design: UPI-2M – Vedran Jukic, Alan Leo Plestina, Ivan Cikes
Structural Design: UPI-2M – Hrvoje Mihal, Marko Đuran, Tomislav Iličkovic, Goran Janjuš, Darko Makar, Ivan Peso, Ivan Habuš
Project area: 2,500 sqm
Photographs: Davor Konjikusic, Petar Petrovski, Vanja Solin, Zvonimir Katancic

© Vanja Solin

CLIENT

Is one of the leading companies in the field of building construction and interior furnishing in Croatia. Their office and warehouse spaces are needed to be extended with the annex that should not be only the spatial extension, but should act as brand.

© Petar Petrovski

URBAN CONTEXT

Is very harsh, on the city outskirts. Fast urbanisation was not followed by infrastructural completeness, as well as public space in this area. Beside single family houses, majority of plots are using 100% of its capacity, with similar typology of simple warehouse/office/showroom boxes without „added qualities“.

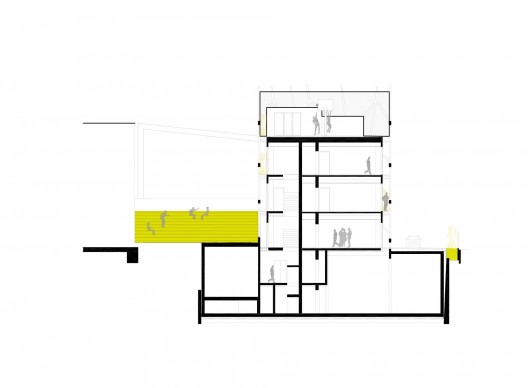

section 01

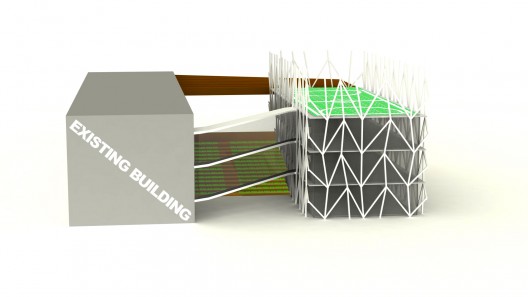

extension scheme phase 03

CONCEPT

Is based on plug-in modules which form complex and compact assembly using all of mentioned 100% of plot capacities and potentials. Each module is improving different aspect of the ordinary office building. In that sense, all those roof and ground surfaces „forgotten“ in its surrounding buildings are used, so the whole plot is conceived like a house and designed in that manner.

© Zvonimir Katancic

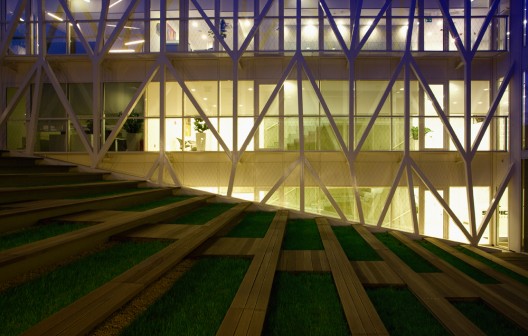

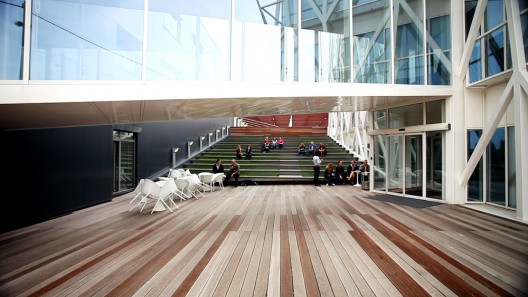

1. Atrium (open semi-public space in between two buildings forming court and open auditorium for different activities).

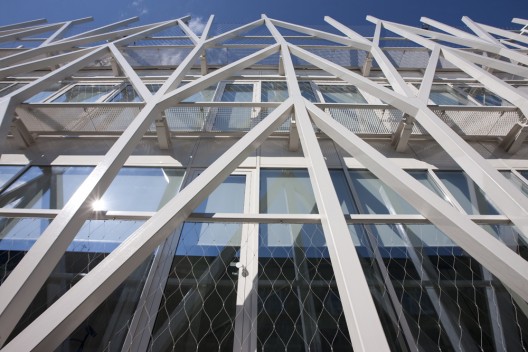

2. Office building (basic plan and section are upgraded by positioning main construction outside. This gesture added new qualities – service path all-around the building providing each room to have a part of outdoor space, this green buffer zone is ensuring sun protection and „natural feel“, providing easy facade cleaning, and fire evacuation. Roof is used as sport playground, trying to improve working efficiency by team building, to promote healthy attitude – Mens sana in corpore sano (a healthy mind in a healthy body). Office cube extends towards existing building – the bridge forming covered space under and emphasizing the entrances.

© Zvonimir Katancic

3. Canopy (covered warehouse)

4. Parking/warehouse (ordinary big unrepresentative volume pushed underground providing space for representative facilities above the ground, equipped with skylight stripe positioned in mentioned gap between construction and glass facade, giving this service space special museum attributes, a feeling like it is above the ground).

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "NOVIstipic / UPI-2M" 28 Nov 2010. ArchDaily. Accessed 21 Aug 2014. <http://www.archdaily.com/?p=91484>
