Merricks House / Wood/Marsh

  • 01:00 - 25 November, 2010
Merricks House / Wood/Marsh
Merricks House / Wood/Marsh, ©  Jean Luc Laloux
©  Jean Luc Laloux

© David Goss ©  Jean Luc Laloux ©  Jean Luc Laloux ©  Jean Luc Laloux +18

  • Architects

  • Location

    Mornington Peninsula, Victoria, Australia
  • Architects

     Wood/Marsh Pty Ltd Architecture
  • Structural Engineers

     John Gardner
  • Services

     NES
  • Area

    0.0 sqm
  • Project Year

    0
  • Photographs

From the architect. The site overlooking the Mornington Peninsula is approached by a long winding drive through an established vineyard. On approach, the house gives little away, presenting an abstract, modest façade as it appears from behind a break in a large hedge.

©  Jean Luc Laloux
©  Jean Luc Laloux

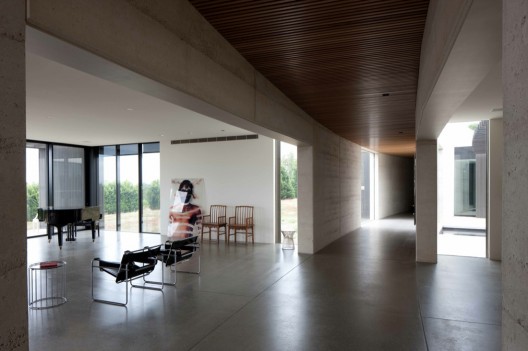

Entering between tall earth walls, a long corridor curves beyond view as the timber ceiling drops into the distance. Upon reaching the lowest point of the corridor, large windows slice through the earth walls to reveal a dramatic view south across the vines to the ocean beyond, to the north a dark strip of water cuts through a courtyard reflecting the sky.

©  Jean Luc Laloux
©  Jean Luc Laloux

Further along the central spine, the ceiling arcs up and the view unfolds as two large living spaces intersect the corridor. A staircase ascends beyond, and appears to hover above the vines. A discreet opening accesses a further volume beyond. Containing main bedroom, ensuite and private terrace, the elevated space affords views over the hilltop to the valley beyond.

©  Jean Luc Laloux
©  Jean Luc Laloux

Primarily a holiday and weekend residence, three bedroom wings are accessed through discreet openings in the central corridor. Allowing autonomy between visitors, this layout assures the house doesn't appear empty when not fully occupied.

©  Jean Luc Laloux
©  Jean Luc Laloux

The brief called for a large, flexible family home of a high quality with a sense of solidity and materials that age well with minimal upkeep. The scope of work also included building new facilities for the property managers.

©  Jean Luc Laloux
©  Jean Luc Laloux

Six bedrooms accommodate a growing family with a range of spaces that can be enjoyed in differing weather conditions. As such a range of terraces and courtyards appear between, or within the timber volumes, providing varying degrees of shelter. A basement cellar provides storage for wine including that produced on the property.

© David Goss
© David Goss

A restrained palette of textures and colours echo the burnt timbers and sun-bleached earth of a harsh Australian environment, contrasting against the verdant manicured vineyard. The bold charcoal and off-white exterior gives way to a warmer more neutral interior palette to complement the client's substantial art collection.

©  Jean Luc Laloux
©  Jean Luc Laloux

The structural engineer and rammed-earth contractor were involved early in the design process to ensure the seamless integration of services, openings and frameless glazing with the rammed earth. A landscape plan was developed that, when implemented will add further complexity to the act of concealing and revealing views through and across the landscape.

©  Jean Luc Laloux
©  Jean Luc Laloux

Timber pergolas and external blinds are used as screening devices, mediating sunlight as it moves across the house. Thickened walls allow deeply recessed windows, shaded from the summer sun and provide opportunity to recess window frames to achieve a thermal break.

©  Jean Luc Laloux
©  Jean Luc Laloux

Natural materials with a low embodied energy rating are used throughout the building. All spaces are cross ventilated and each building volume can be heated and cooled independently depending on how the house is occupied. The building utilises the insulation properties of rammed earth.

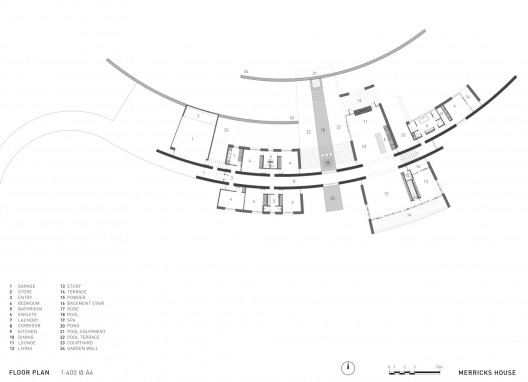

Plan
Plan

The property is not connected to mains water, all rain water is harvested and used throughout the house. Water collected in the dams is used for irrigation. All sewerage is treated on site.
