Swim Stadium Bellahoj / Arkitema Architects

© Arkitema Architects

Architects: Arkitema Architects
Location: Brønshøj, ,
Client: Københavns Kommune, Københavns Ejendomme
Landscape: Arkitema
Engineer: Søren Jensen, Rådgivende Ingeniører A/S and Balslev A/S
Project area: 8,145 sqm
Project year: 2007 – 2009
Photographs: Courtesy of Arkitema Architects

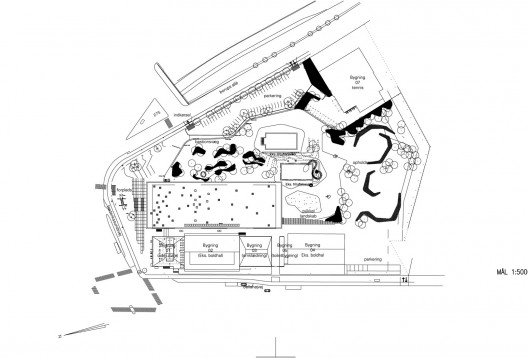

site plan

With the opening of the new Swimming Stadium at Bellahoj all swimming activities of the original public pools will be reestablished. But furthermore Copenhagen will now be able to hold national and international competitions. The big swimming stadium is made up of a diving bassin, a training bassin plus the first regulation size 50 meter bassin in Copenhagen – complete with changing rooms, café and bleechers with a capacity of 1200 spectators.

© Arkitema Architects

With the exception of one outdoor bassin the existing park facility from 1959 has been renovated along with the original public buildings and thus the complete facility today functions as one conceptual and architectural whole covering everything from elite swimming to leisure activities and provides a richness of activities with among other things a play landscape for children along with a childrens pool complete with slide.

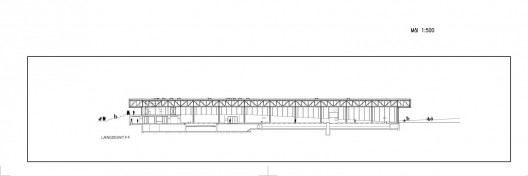

section 01

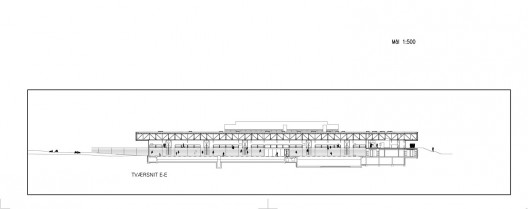

section 02

The architectural solution in one big move connects the spectacular attractions of the site: The Bellahoj fields and the Bellahoj towers. The park is percieved as a modulated landscape that both connects and separates the city and the new park. At the same time the area strengthens the Bronshoj area as an attractive location by establishing a meeting place in a dense city area.

© Arkitema Architects

In the open air area close to the stadium building we establish an area that can be characterized as a lively beach front with benches, seating pillows and a paddling pool.

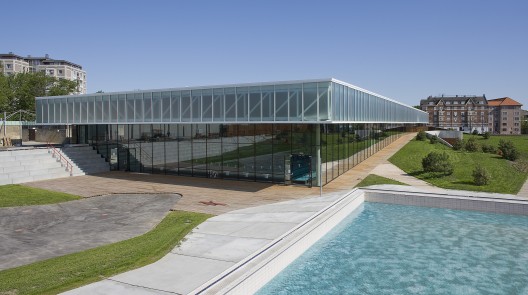

The characteristic roof of the stadium buildidng seems to hover above the modulated landscape, giving the wole facility a clear horizontal orientation. The horizontal front of the roof is coverd with glass in a greenish colour that mirrors the characteristic copper colour of the surrounding buildings.

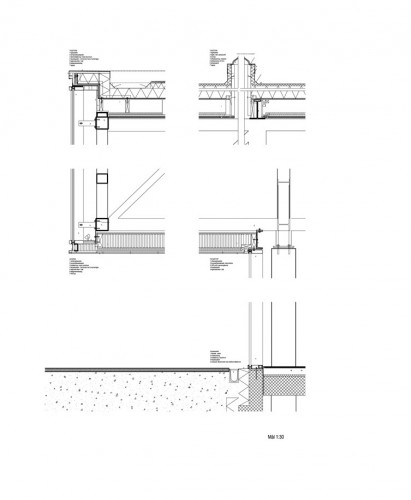

details

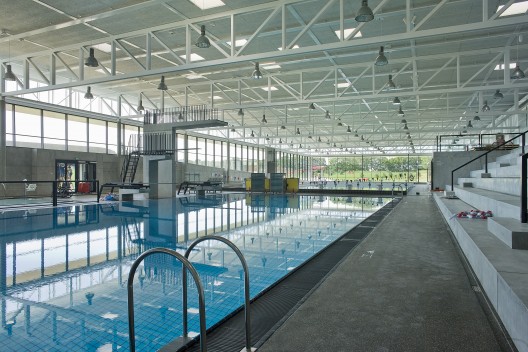

In spite of modern demands on energy consumption we have managed to integrate large glass areas in the building further enhancing the close connection between indoors and outdoors. At the same time the light steel construction of the roof makes the building seem both light and crisp.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Swim Stadium Bellahoj / Arkitema Architects" 15 Nov 2010. ArchDaily. Accessed 21 Dec 2014. <http://www.archdaily.com/?p=88524>
