Eagle Copters / Nicolás Lipthay | L2C

© Nicolas Saieh

Architects: Nicolás Lipthay | L2C
Location: Colina,
Associated Architects: Barceló + Baile Arquitectos Asociados
Contractor: Constructora Esperanza
Site Area: 10,457 sqm
Project Area: 2,602 sqm
Project Year: 2009-2010
Photographs: Nicolás Saieh

The project is located in the district of Colina, next to Chicureo Aerodrome. It consists of the construction of the new facilities for Eagle Copters South America, which is made of administrative offices, customer recreational areas as well as hangars and workshops.

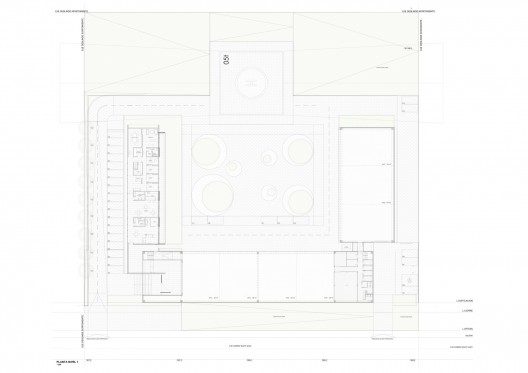

ground floor plan

The total surface of the project is 10,457 m2, where volumes are distributed in parallel to edges. The central area of the terrain is cleared for free aircraft traffic, while linked to the different designs.

© Nicolas Saieh

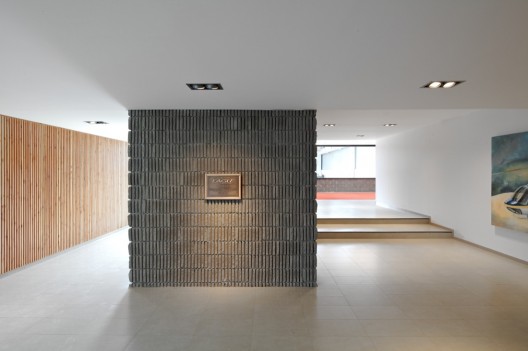

Access is formed by the intersection of administrative, recreational and main hangar volumes. Access provides a free area, which enables a complete view of the hangar, central patio and warehouses.

© Nicolas Saieh

The building is made of two different types of structures. The first corresponds to the hangars, made of prefabricated concrete, coated with self-supporting metal plates, which allows dispensing with the inner structure of the hangar, while providing a broader view it. Galvanized metal structures with white drywall finish are predominant in offices located above the main access and conference room. Paving is made of heavy duty porcellanite, which matches the use of the areas.

© Nicolas Saieh
© Nicolas Saieh

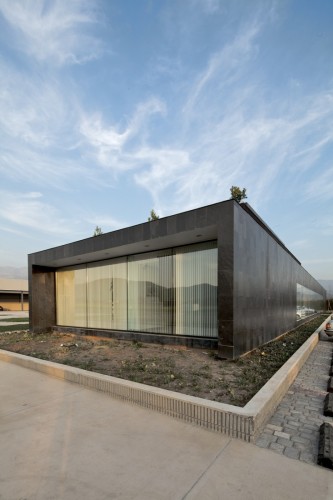

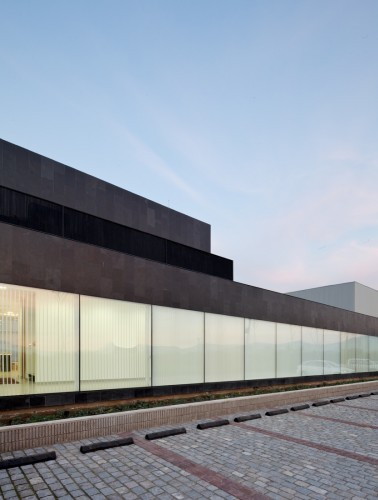

The administrative/recreational building is made of a solid concrete slab, where volume structure was subsequently erected by means of metallic galvanized structures. As external finish, there are black slate stones and clear curtain walls. In the inside, warm colors are prevailing both in white drywall ceilings and white access ceilings; grey porcellanite paving and matt podocarpus wood constitutes the organizing volumes. In the office area, white colors and tempered glass as finish prevail, while wooden-wall including shelves constitute the dividing units.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Eagle Copters / Nicolás Lipthay | L2C" 11 Oct 2010. ArchDaily. Accessed 25 Oct 2014. <http://www.archdaily.com/?p=81054>
