Car Park One / Elliott + Associates Architects

© Scott McDonald

Architects: Elliott + Associates Architects
Location: Oklahoma City, OK,
Project Team: Rand Elliott, Bill Yen, Miho Kolliopoulos, John Creach
General Contractor: Smith & Pickel Construction
Civil Engineering: Johnson & Associates
Structural Engineering: Walker Parking Consultants
MEP: PSA Consulting Engineers
Lighting: Smith Lighting Sales
Project Area: 298,907 sq ft
Project Year: 2008
Photographs: Scott McDonald

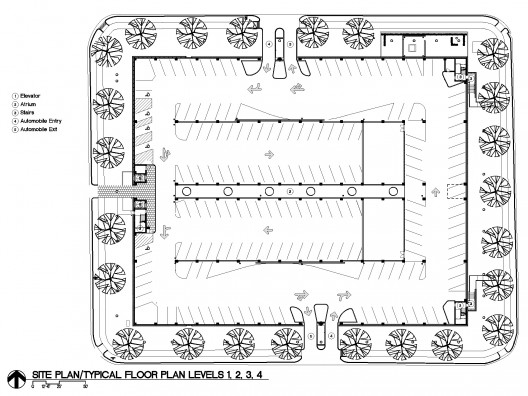

site plan

Parking garages provide a perfunctory purpose in today’s corporate environment. The requirement is simple. We have people; we have cars; and we need to put them away temporarily. End of story? Not exactly.

We all use parking garages and agree that most experiences are less than great. For many they have been dismissed as only necessary in our work-a-day world.

Elliott + Associates has set about to reinvent the parking garage experience. Happily we had the perfect client in Chesapeake Energy and CEO Aubrey McClendon.

© Scott McDonald

The reinvention begins with renaming the place “Carpark” and envisioning a place to store cars. The goal was simply to acknowledge the typical reaction to most parking garage experiences. Patrons generally describe them as dark, dirty, low, confusing and oil spotted. A place no one really wants to be.

With a focus on functionality, safety and compatibility with the campus, the new Chesapeake Car Park makes a positive statement about the corporation itself and the value they place on the quality of the campus environment. For Chesapeake every detail reflects the image of themselves and the projected image for guests.

© Scott McDonald

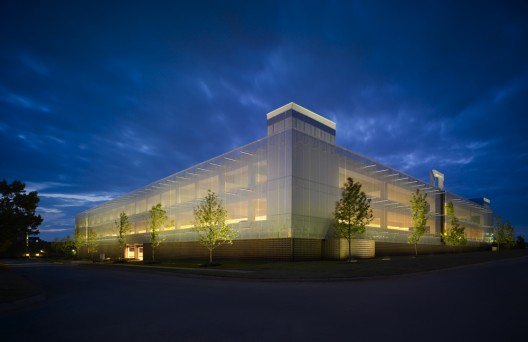

The building covers a city block and stores 791 vehicles. With such a large scale the architects skinned the structure in 3/8” wide stainless steel mesh. The 25% open weave allows air movement as required by code and responds to the light in Oklahoma. With 300 sun-days per year the reflective quality of the mesh allows the surface to “dissolve” into the sky from reflections. The edges disappear and the surface provides a daily report on the ever-changing weather. At sunset the western elevation captures the magic moment when the yellow becomes orange and finally becomes purple just before black.

A unique feature of the exterior is the aluminum outriggers on the east and south elevations. These 4’ extensions create changing linear shadows that artistically hint of the contents. The linear shadow becomes the same line as the parking stripe hidden inside.

In an effort to “connect” the Car Park to the existing campus across the street we incorporated masonry. However, we needed a “transparent” wall to fulfill the 25% open code criteria. We chose a clay-fired 8” x 8” x 8” solar block in a matching color to the campus king size brick. The visual and material link is maintained between the modified Georgian campus architecture and the modern architecture across the street.

We have all been lost in an unfamiliar parking structure with a rental car that you cannot remember. Visual orientation and memorable visual queues are critical to navigation within parking structures. We purposely chose to place the elevator on the destination side – by the Chesapeake campus in this case – with a window so that a visitor could visually connect the garage and their destination. It also adds a bit of charm and fun to the experience. Stairs are also adjacent to the elevator if one prefers to walk.

© Scott McDonald

Having said that, the stairs offer another opportunity to improve the experience while being useful as well. We elected to add the same colored fluorescent lighting in the stairwells to emphasize the color / level connection and a fun atmospheric journey.

In an effort to reinvent the parking garage we considered hiding the cars from view to passersby. We incorporated a 48” tall concrete bumper wall at the outer edge of each level to block the view of the vehicle from outside. Our belief is that we could change the preconceived image of a parking structure into a handsome, artistic architecture that becomes an asset and a recruiting tool for new employees. We are happy to report that we have succeeded.

Landscaping is an important aspect of any project and especially parking structures. The scale required that the building be softened and humanized as it integrates into the campus environment. Everyone walks from building to building so trees and seasonal color add to a positive experience.

© Scott McDonald

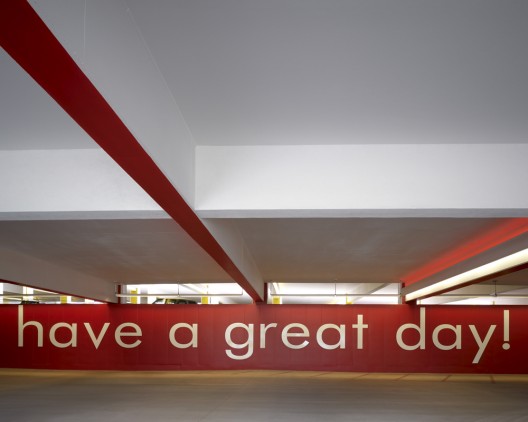

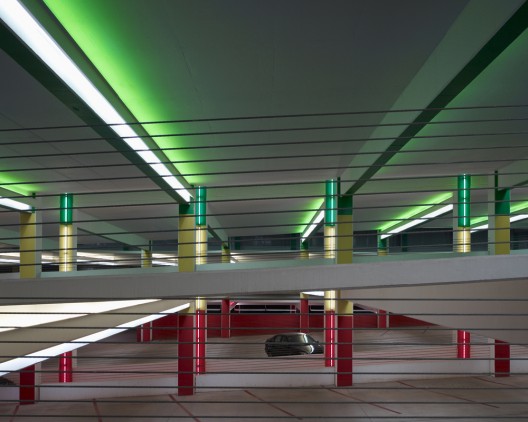

Since this facility serves a corporate campus, visitors are here each day. We wanted to make the place an experience worth remembering. Greeted with “Welcome Back” or “Have a Great Day” the experience begins immediately. All interior surfaces are painted white and the clear height is 10’ – 6”. Color-coded levels are defined with bold graphics and colored fluorescent lighting visually reinforces the level you decide on.

Finally, the surprise is a full height 13’ wide lighted atrium that contributes to air circulation and contains a light sculpture using the four floor level colors. It is hard to forget the floor you parked on. What a great place to be.

Mission accomplished.
Parking as art.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Car Park One / Elliott + Associates Architects" 15 Sep 2010. ArchDaily. Accessed 28 Jul 2014. <http://www.archdaily.com/?p=77607>

10 comments

  1. Thumb up Thumb down 0

    ah, so those things sticking out of the facade don’t actually do anything? (except “create changing linear shadows that artistically hint of the contents”) …or did i miss something?

  2. Thumb up Thumb down 0

    Interesting to drive by and park within that structure. Boring as hell to walk or bike by that structure.

  3. Thumb up Thumb down +1

    When i read the blurb from the architects i thought “yeah, they’ve designed a multi storey car park and tried to make it as nice as they could.”

    then i saw this

    “Parking as art.”

    Honestly, do me a favour. Art? ART?

    This is just a bog standard multi storey car park, the same as every other block sized multistorey car park which, with their lovely dead frontages serve to kill off any notion of an attractive pedestrian environment.

    I really thought we had moved on from this sort of design.

  4. Thumb up Thumb down 0

    The parking box is ok.

    What doesn’t cease to amaze me is the reticence of US construction to build underground parking.

    While in latinamerica, for example, is a de facto move, doesn’t really impacts that much construction budget (it does, but not to the point of not doing it) here, in the world’s biggest economy they go with the cheapest way possible and build those horrendous above ground boxes.

      • Thumb up Thumb down 0

        Underground parking is twice as expensive as above-ground parking here in the United States. I’d prefer it be below-grade too – but when faced with spending X or 2X, most people will prefer to spend X.

  5. Thumb up Thumb down 0

    indeed it’s really going to be memorable xperience to park ur car in there.
    wow!
