Architects: SPBR Arquitetos
Location: Ubatuba, Brazil
Principal in charge: Angelo Bucci
Project team: Ciro Miguel, Juliana Braga, João Paulo Meirelles de Faria, Flávia Parodi Costa, Tatiana Ozzetti, Lucas Nobre, Nilton Suenaga
Client: Antônio Carlos Onofre / Regina Silveira Onofre
Structural engineer: Ibsen Puleo Uvo
Landscape architect: Raul Pereira
Lightning design: Ricardo Heder
Construction: Bremenkamp Engenharia e Construção Ltda.
Total floor area: 340 sqm
Design year: 2005-2006
Construction Year: 2007-2009
Photographs: Nelson Kon

Site

Ubatuba is one of the most important coastal cities in the state of São Paulo.

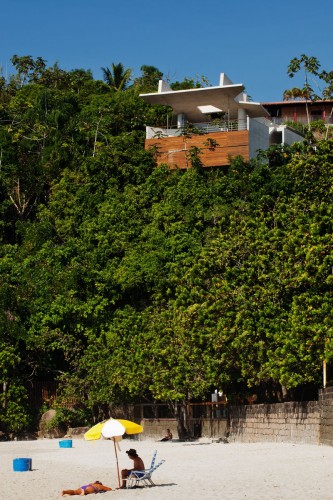

This 55m x 16m ground plot, located at the far right end of Tenório’s Beach, borders on the seashore at one side and goes up a 50% slope hill, only reaching street level at 28 meters.

The hard steep hill and its trees are both protected by environmental laws. They have inspired the entire strategy used in the conception of the project.

Strategy

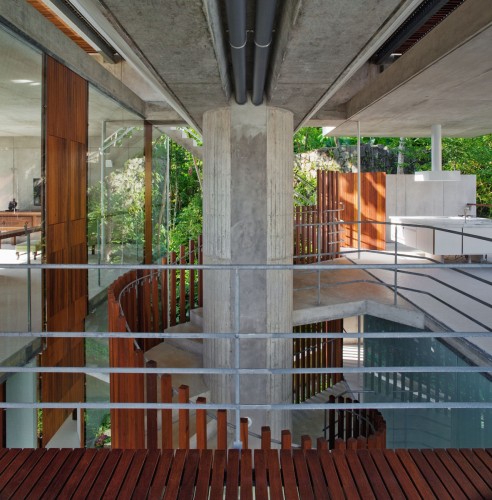

Three columns, made in reinforced concrete, support the house.

The casting of these columns is possible by the use of sliding forms.

Four steel beams lay on the top of them in order to hang the slabs from above and also to avoid the use of support frames during the construction process, making it faster and more rational.

The very thin, beamless slabs and their level arrangements allow incredible sea views from every room inside the house.

Architecture

The main access to the house is made “upside down”.

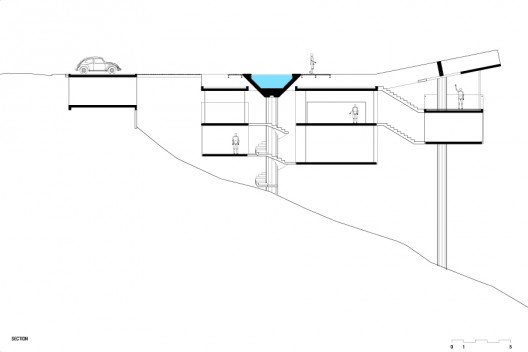

section

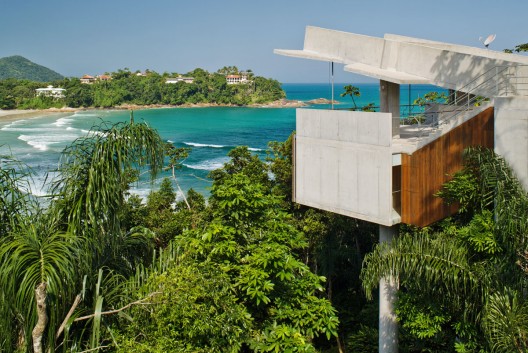

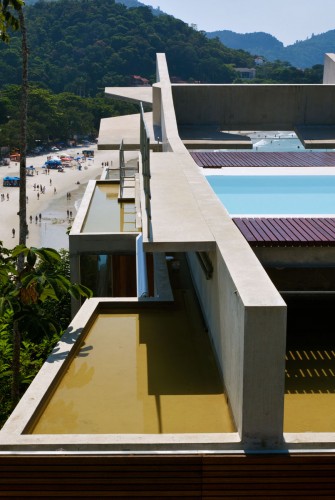

The terrace on top is at same level of the street. A bridge connects the street to the main entrance of the house, allowing different views of the sea, of the hill and of the trees. Besides preserving a natural landscape, this hanged house actually floats among the trees, surrounded by birds and open towards the sea.

In other words, this is a house that can smell, hear and see.

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: © Nelson Kon

: site plan

: bedrooms level plan

: living room level plan

: roof plan

: section
