So Da Hun / IROJE KHM Architects
© Jong Oh Kim
Architect: IROJE KHM Architects / HyoMan Kim
Location: 229-2 Bigeun-dong, Pyeongtak, Gyeounggi-do, Korea
Design team: Hyun Jung Ju
Structure designer: MOA. Sung Yeong Oh
Contractor: Dong Jun Yu
Site area: 107 sqm
Bldg. area: 63.25 sqm
Gross floor area: 197.27 sqm
Photographs: Jong Oh Kim
This site that is located in the heart of downtown is a small, irregular, polygonal shaped land and it is ragged old space, only area of 100 sqm.
At the same time, the maximum building area is no more than 60 sqm.

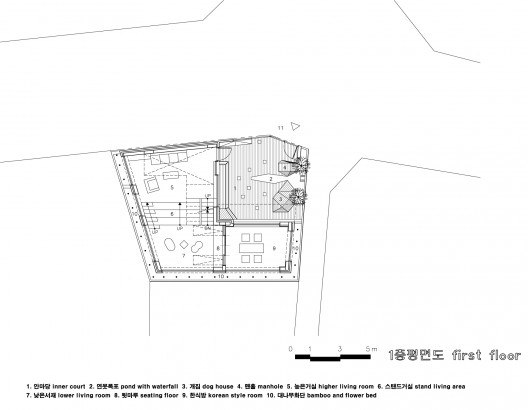

first floor plan

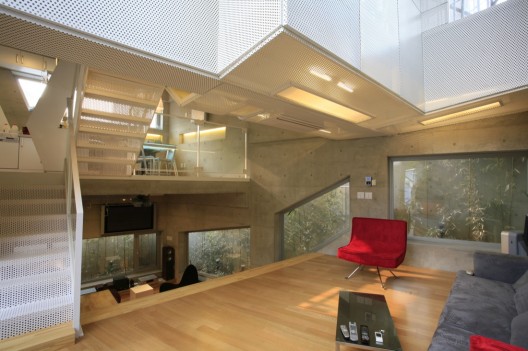

The development of vertical space – Skipped floor space – Rich sequence of vertical space
While adapting the skipfloor system, it was possible to maximize the visual range and to produce the interesting space of variety, as possible as this small site can do.
© Jong Oh Kim
The spread of horizontal space – Narrow bamboo garden – Fence space
Because of the boundary of small courtyard and living room and the window between the concrete fence and interior space are transparent, the extended outdoor garden space and interior space maximize the horizontal visual range.
© Jong Oh Kim

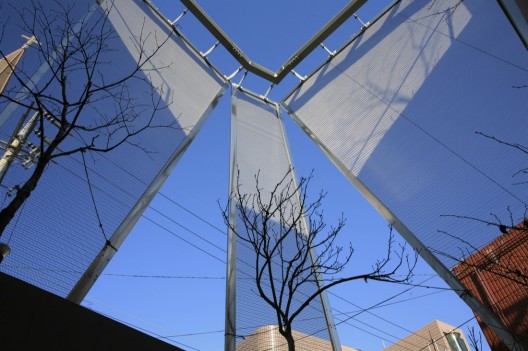

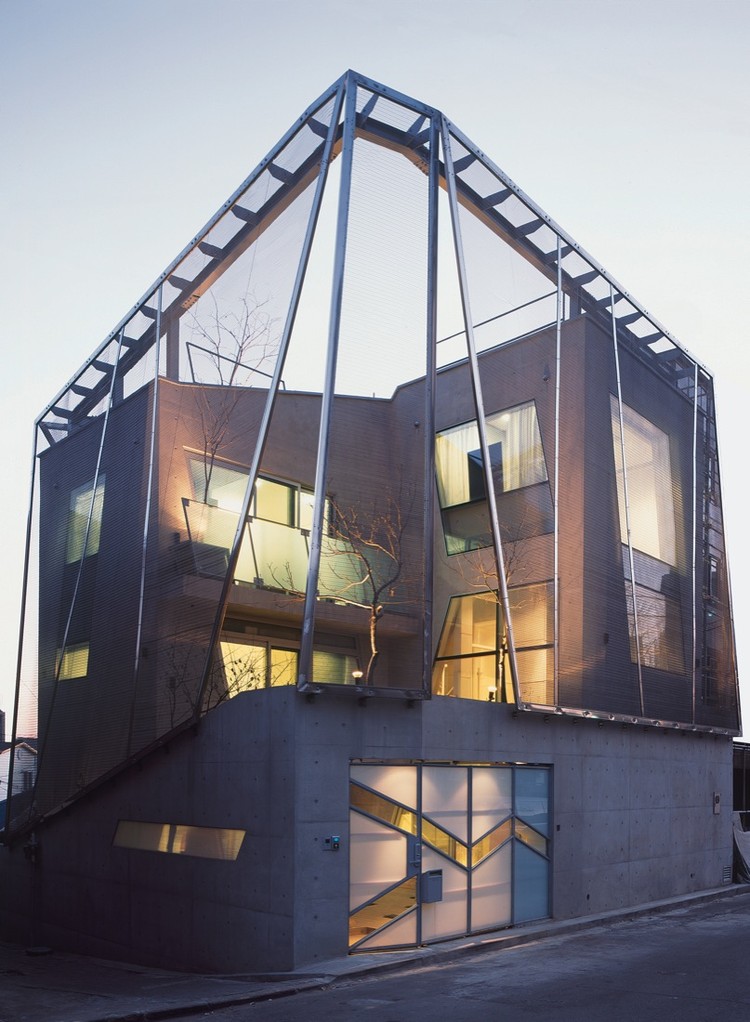

Stainless mesh – Filtration of landscape and sunlight, translucent mass
The translucent images which are consisted with stainless mesh that filtrate the sight from opposite church and side stores and direct sunlight, are the major impression of this house.

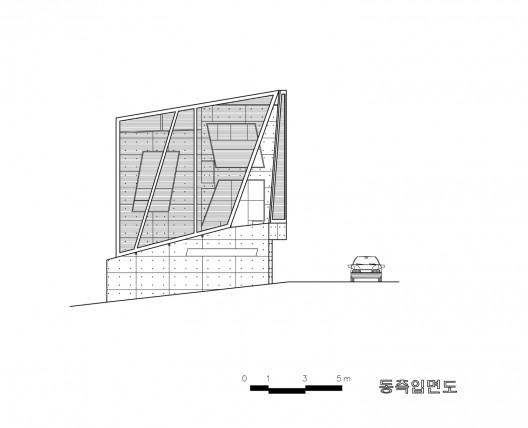

elevation 04

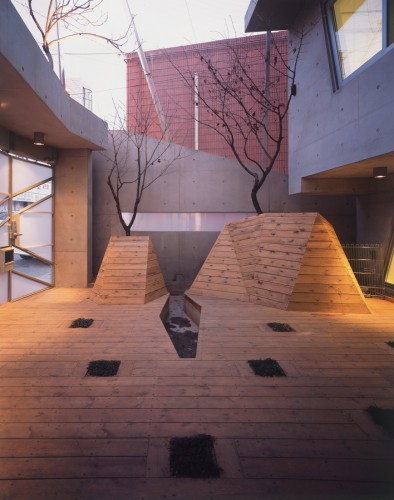

Vertical garden
Small courtyard was covered with wood panel, for the maximum efficiency of use of the place.
This spacs of inner courtyard where is surrounded with stainless mesh and exposed concrete walls of this house, is semi interior space.
From ground courtyard level to roof garden level, several trees and flowers were planted vertically, on the canopy of main gate and on the balcony of upper floor and on the roof garden floor.
© Jong Oh Kim
Small but rich – Small area but rich space
The name of this house “So Da Hun” means “small house but the house of rich space”.
This project was a research about what is the rich spatial system in the minimum area of site.
-
