Medical Housing Compound / Studio Tam associati
© Raul Pantaleo
Architects: Studio tamassociati – Raul Pantaleo, Massimo Lepore, Simone Sfriso, con Pietro Parrino y Gino Strada
Location: Soba, Khartoum, Sudan
Client: Emergency NGO
Coordinator: Emergency Technical Office, Pietro Parrino
Structural Engineering: Francesco Steffinlongo
Services & Mechanical Engineering: Nicola Zoppi
Site Engineering: Roberto Crestan, Alessandro Tamai, Claudio Gatti
Contractor: ISNAD Sudan
Site Area: 8,663 sqm
Constructed Area: 1,668 sqm
Project Year: 2008-2009
Photographs: Raul Pantaleo
Looking at the amount of discarded containers laying around the building site of the Salam Centre we had this simple idea: to use them again in order to realize the required international staff housing compound.

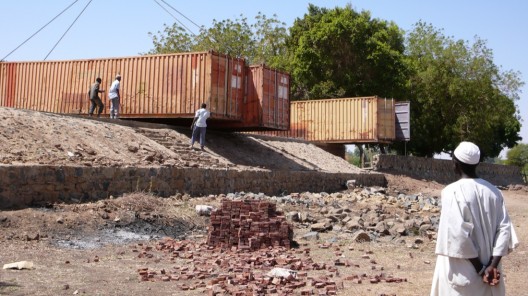

construction process

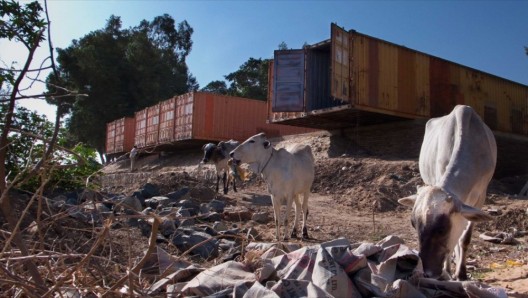

construction process
The Compound placed besides the Hospital, in the surroundings of the Nile river, is realized around a great courtyard full of wonderful mango trees. It consists of 95 20ft-containers for housing and 7 40ft-containers for the cafeteria. Every lodging is 20 sqm and is realized with one and a half containers; the lodging is composed of bedroom, bathroom and a small veranda on the court side.

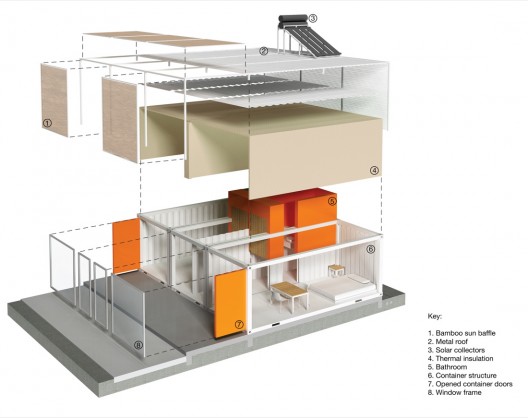

exploded model
© Raul Pantaleo
Peculiar care has been dedicated to insulation and energy saving. The containers are insulated with a “layer system”. Inside the container 5 cm insulating panels have been placed. The outside “skin” is realized with a second insulated roof and a bamboo brise-soleil panel system. In this way the sunrays never hit the containers. This system involves a huge energy saving. Solar panels also supply hot water for the entire compound.
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- © Raul Pantaleo
-
- construction process
-
- construction process
-
- construction process
-
- construction process
-
- construction process
-
- general floor plan
-
- cafeteria elevations
-
- houses elevations + section
-
- houses floor plan
-
- houses sections
-
- exploded model
-
- details
