Capture the Rain / H3AR

The duo of Ryszard Rychlicki and , of H3AR, was awarded a special mention for their proposal in the 2010 eVolo skyscraper competition (see the winners on our previous article).  The competition attracts innovative designers and receives hundreds of eccentric proposals.  For this project, designed by 4th year student, the skyscraper is comprised of a system of gutters to catch as much rainfall as possible.  The water captured and processed by the building may be used for flushing toilets, feeding washing machines, watering plants, cleaning floors and other domestic applications.

More about the skyscrapper after the break.

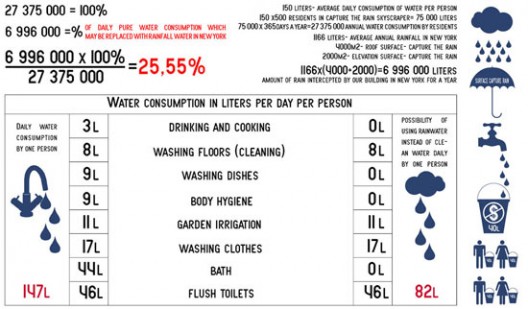

The water collected with the skyscraper will supply 85 liters of rain water to meet the daily needs of the inhabitants (each user averages a daily consumption of about 150 liters).

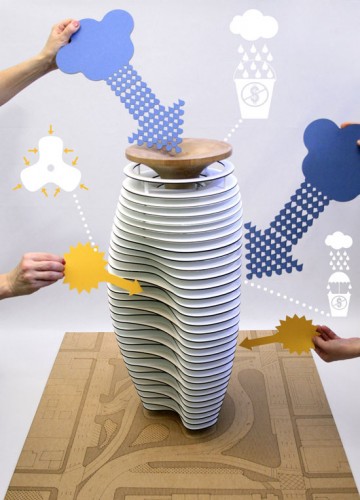

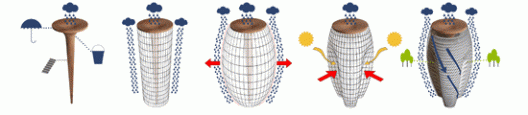

Initially, in designing the tower, the students focused on shaping and modeling the surface of the roof to optimize the rainwater collected.  Yet upon working with the roof system, the students developed the skin treatment to make the building transform into a cohesive raincollecting machine.

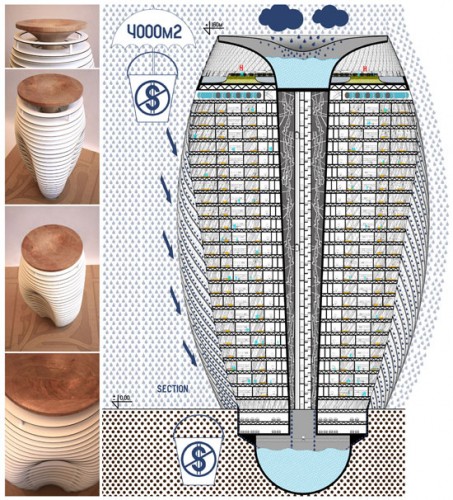

Under the roof’s surface, water reservoirs in the form of a large funnel and reed fields, serve as a hydro botanic water treatment unit.   The unit processes water into usable water that is further transmitted to apartments.

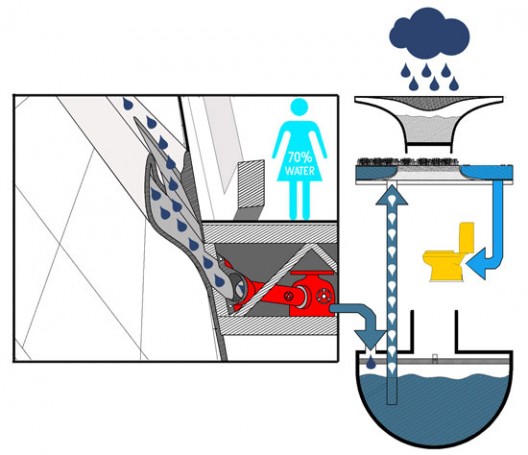

The gutters on the external surfaces of the building, capture rainfall flowing down the building.  The rainfall is then transmitted to floors and its surplus is stored in a reservoir under the building. ­­­­

As seen on designboom.
