Villa Bio / Enric Ruiz Geli
© Lluís Ros / Optical Adiction
Architect: Enric Ruiz-Geli
Location: Barcelona, Spain
Estructure: Manel Raventós
Interior Design: Manel Soler Caralps
Technical Architect: Arantza Garetaonandia
Estructure Constructor: Antonio Diosdado
Installations: Joaquim Ribes Quintana
Natural Roof: Jardines Burés
Landscape Design: Joan Madorell
Glass Work: Cricursa
Glass Rocks: Emiliana Design Estudio
Steel Work: Aluminis Empordł
Visuals: Laia Jutglà
Pavement: Pavindus
Moving Surfaces: Panelite
Fixed Surfaces: Japlac
Project Year: 2005
Photographer: Lluís Ros / Optical Adiction
Contemporary architecture is THE PLATFORM on which culture and contemporary art rest. Living in an exciting platform can become an art form: THE ART OF LIVING.
We conceived this platform as a LANDSCAPE OF LINEAR EVENTS. The landscape folds itself within the site and forms a growing SPIRAL.

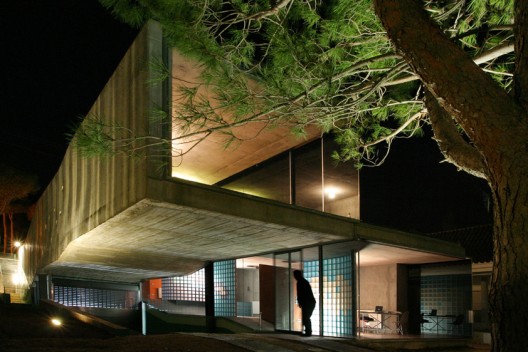

© Lluís Ros / Optical Adiction
The platform is a LINEAR STRUCTURE made of concrete of constant section in the shape of a “C”. The longitudinal blind FAÇADES function as BEAMS and create a 15m. projection.
models 02
Concrete is a LIQUID MATERIAL.
The concrete as liquid material solidifies and creates a “liquid” topography on the façade.

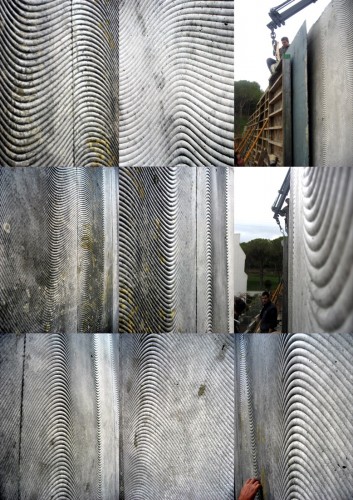

concrete texture
Process:
1- We create a 3D model of the topographical landscape that we want to construct.
2- Virilian landscape of accidents.
3- Using CadCam with a milling machine with 3 axes, we mold a personalized image, unique and non-standard, of 24m x 3m.
4- We treat the mold and we convert it into formwork of the north and south longitudinal façades.
© Lluís Ros / Optical Adiction

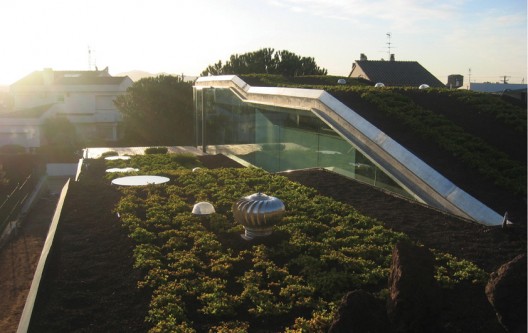

The platform enters into liquid state, mutant, with a covering of natural plants, an interior landscape of glass (stone) with plotters of digital renders…
A BIO architecture.
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- © Lluís Ros / Optical Adiction
-
- concrete texture
-
- plan 01
-
- roof plan
-
- north elevation
-
- south elevation
-
- section 01
-
- section 02
-
- section 03
-
- section 04
-
- section 05
-
- section 06
-
- structure diagrams
-
- models 01
-
- models 02
