Carabanchel Housing / dosmasuno arquitectos
Architects: dosmasuno arquitectos – Ignacio Borrego, Néstor Montenegro and Lina Toro
Location: Madrid, Spain
Construction beggining: September 2004
Construction ending: November 2007
Client: EMVS. Empresa Municipal de la Vivienda y Suelo de Madrid
Contractor: Begar
Structural advisor: José Luis de Míguel
Consulting Engineers: Grupo JG
Photographs: Miguel de Guzmán
FOOTPRINT
Orientation and introspectiveness

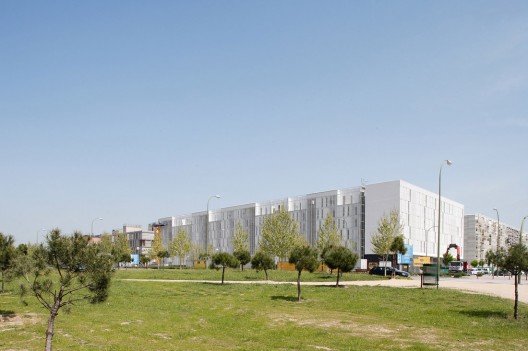

Despite the guidelines drawn on the plots, places need to express their own personality, to arise naturally, to construct themselves. And concretely this one is aligned against a green area, against the concatenation of public spaces that link the old Carabanchel district with its forest through the new neighborhood. In response to these conditions, the dwellings are compressed onto one edge, onto a single linear piece, in search for the genus loci of the place, views and an optimal orientation in which east and west share the south, generating the limit of the activity, soothing the interior and defining the exterior.
STRATEGIES
Minimum core + additions

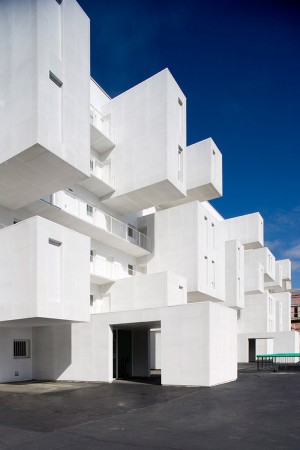

The dwellings are designed from an invariable core with a modulated addition which completes the requirements of the program. This fixed core is constructed attending to the surrounding views and sunlight, and its two main pieces, living and sleeping rooms, are stacked to the south limit, from which they are protected with a filter, relegating a services strip to the back side. Behind this strip, and like clouds drifting over the void, variations are introduced by the addition of programmatic pieces that form the dwellings of two and three bedrooms. The strict order achieved by the linear core is mathematically blurred into a shifting volume. Thus, the dwellings become “machines for living”, and they are designed as such, fitting surfaces and diminishing the transition areas of between rooms.
BUILT
Modular casting system
Its construction responds to a necessity of industrial optimization. Therefore, the structure of the main body is constructed in concrete from a single high accuracy aluminum cast. At the same time, the light steel structure modules that constitute the additioned elements enable volumetric variations. This industrialized system facilitates the constructive process, avoiding rubbish and accelerating the implementation times.
-
- situation plan
-
- basement plan
-
- ground plan
-
- first floor plan
-
- second floor plan
-
- third floor plan
-
- fourth floor plan
-
- fifth floor plan
-
- roof plan
-
- apartments plan
-
- north elevation
-
- east elevation
-
- west elevation without skin
-
- west elevation with skin
-
- south elevation without skin
-
- south elevation with skin
-
- section 01
-
- section 02
-
- construction process
-
- section + details 01
-
- section + details 02
-
- details 03
-
- details 04
-
- details 05
-
- development scheme
-
- project axo
I’m guessing the architect likes white. Structurally it’s an impressive building, I just feel it would have been much more merciful on the eye if the architect would have incorporated some Mediterranean earth tones on the out cropping modules.
Right, if they coloured the modules and the roof of the parking it would be flawless.
Exactly!
Luca, grab your paint brush, and work clothes that you don’t mind getting dripped on— WE”RE GOING TO MADRID!
No hay ninguna indicación de orientación, se ignora en que sentido está el norte y si los volumenes, sus aperturas y llenos, juegos de pieles y sombrios son consecuentes o no con el sol.
El juego de la luz en los volumenes es interesante, quizas muy asceptico el blanco, falta ver como tras la ocupación los nuevos habitantes van colocando sus improntas de color. Vale la pena ver una foto dentro de 1 año o más
Vale la pena ver una foto dentro de los edificios. El proyecto se ve como una propuesta plastica interesante pero la experiencia de habitar una plaza blanca y negra me parece un poco agobiante. Quizas una fotografia de los interiores responderia la pregunta con respecto a la orientacion.
parece un anuncio de compresas!!!
I like the white. This is an awesome project. I can’t believe that you can cantilever something that far out and have a planar face on the other side. Really cool.

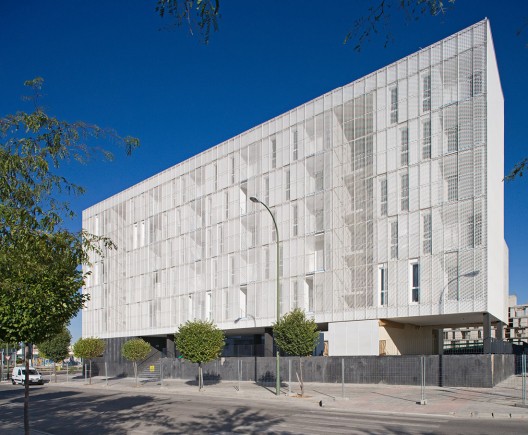

This is an extraordinary project, with great pluses, and some minuses, built out of a form generating principle and set as a rather asceptic insertion within it’s context. To make low income housing appealing, it must be conceptually striking, because it can never be truly expensively finished. A very uniform and low cost repetitive concrete structure is set of with a whimsical yet very efective volumetric statement, where small apertures, narrow corridors and bland entrances are given a dramatic overtone. Its single loaded, relatively safe circulation pattern works. The expanded metal sheating is also very effective, giving the building a front and back, a face, masked and an enhanced, accented and extremely voluptuous body.
