O. Fournier Winery / Bórmida & Yanzón

© García & Betancourt

Architects: Bórmida & Yanzón
Location: , Mendoza Province,
Project Architects: Eliana Bórmida, Mario Yanzón
Project Area: 12,000 sqm
Project Year: 2007
Photographs: García & Betancourt

Client: Ortega Fournier, Spain
Capacity: 600,000 lts.
Project Manager: Arq. Gustavo Albera
Technical Director: Arq. Gustavo Albera
Team: Arq. Sonia Enriz y Arq. Paula Sánchez Abraham.
Construction: Millenium S.A
Structures: Ing. Juan Camps & Asociados

© García & Betancourt

The winery is located in an estate of 263 hectares in the department of San Carlos, 130 km from the city of Mendoza, Argentina.

The Ortega Gil Fournier family, from Burgos, Spain, bought the land in 2000 and decided to start building the winery for the production of fine wines.

© García & Betancourt

Relationship with the Environment

The property, at the foot of the Andes and 1200 meters above sea level, has exceptional conditions for the development of quality vineyards. There,  the Spanish system “de vaso” has been used with tempranillo, malbec, cabernet sauvignon, merlot and syrah varieties, different from traditional trellis farming methods in the region.

At the heart of this ampelographic scenario, unique in the region, is the new winery.

© García & Betancourt

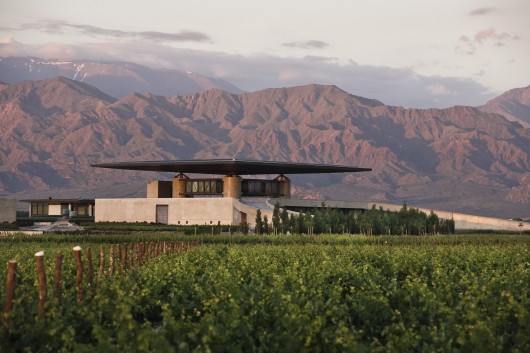

The place has great scenic attraction for tourism: the natural landscape of the Andean foothills is a plateau with magnificent views of the high peaks, snow during much of the year, and the cultural landscape is typical of a Mendoza oasis, sprouted from the desert from irrigation, with streets lined with poplars, vineyards, orchards and olive groves.

At the request of the owners, the architecture of the winery should be strongly representative of New World wines, and capable to position itself as a marketing strategy in global markets through its identity and quality.

© García & Betancourt

Functionality

The journey of the grape. -The winery was designed to produce 600,000 liters of fine wine, it is articulated in several buildings, separating the processes of winemaking and complementary uses in autonomous but interconnected building units.

The production line starts with the entry of grape baskets on trucks through service roads that can reach the parking lot of the harvest building. There, as a reception signal, two arms-ramps open to allow the rise of trucks to the harvest level, and from there begins the process of vinification by gravity.

© García & Betancourt

At the harvest level, grapes are carefully selected. To initiate the fermentation process, they are deposited through openings in the slab, in stainless steel tanks located on the lower level.

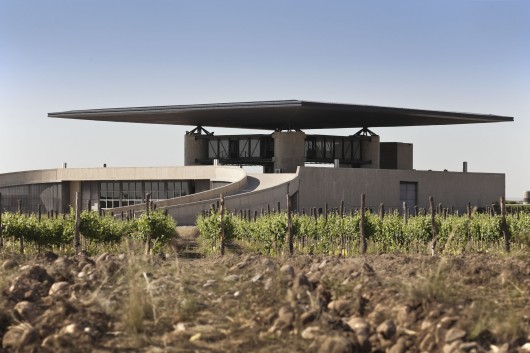

These tasks are carried out under an open metal cover, concave upwards and downwards, with a thin edge border. This protective cover, as a large parasol, evokes the traditional galleries of Mendoza, where the grape pickers capsized the grape shielded from the harsh summer sun.

Section A
Section B
