‘tij49 School / HVDN
© Luuk Kramer
Architects: HVDN
Location: Amsterdam, The Netherlands
Design Team: Albert Herder, Arie Van der Neut, Monika Pieroth, Sabine Heine
Project Team: Albert Herder, Tom Jonker, Nils Van Ipenburg
Structural Engineering: Jean-Marc Saurer
Client: Stadsdeel Zeeburg Amsterdam
Contractor: Ursem Bouwgroep bv, Wognum
Project Year: 2006
Budget: € 2,900,000
Photographs: Luuk Kramer, Jan Derwig & HVDN
Location
Blok 49 on IJburg is reserved to accommodate unusual functions and activities such as Blijburg, a temporary beach with its associated bars. The block and its surroundings will be further developed in the coming 15 years. This temporary school, with a planned lifespan of 20 years, is intended to accommodate the forecast swell in the number of IJburg’s schoolchildren.

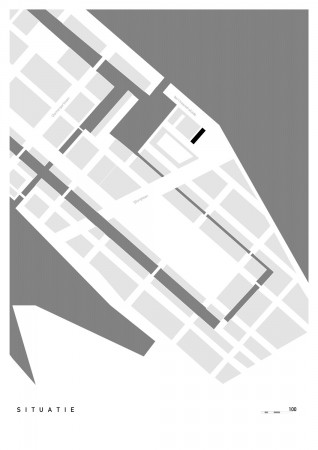

situation plan
In order to make optimal use of the site, the building traverses the block creating a schoolyard that stretching from the waterfront to the street.
Speed
It was evident in the spring of 2006 that the completion of IJburg’s secondary school was behind schedule. As the commencement of the school year in September could not be postponed, the Municipality decided to speedily construct a temporary school. With the completion of the original school, the temporary structure would be made available to accommodate the future increse in the number of primary schoolchildren.

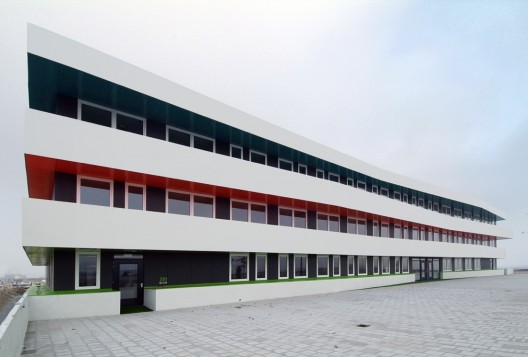

© Jan Derwig
Even though the time frame from conception to completion was less than six months, the client stipulated that this should not manifest itself in the building’s appearance.
The proposal involves a three-storey building with a wide, double-loaded central corridor. By compartmentalising the building vertically, to comply with the fire regulations, the stairwells and voids form part of this central space. The three entrances are located in the building’s long elevation facing the schoolyard.
© Luuk Kramer
Bands

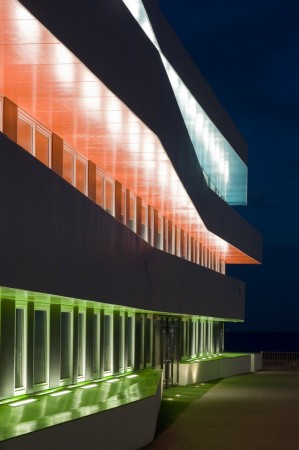

To harmonise the stacked prefabricated elements into a convincing building, the horizontal bands in the façade are strongly articulated. The cantilevered strips also function as effective sun screens and shelter for the entrances. They are finished with a sprayed rubber layer, white on the outside and with a different brightly coloured soffit per floor. The colouring corresponds with the school’s internal colour scheme. By illuminating the bands at night, the building acts as a beacon in the neighbourhood.
elevation 01
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © HVDN
-
- © HVDN
-
- © Jan Derwig
-
- © Jan Derwig
-
- © Jan Derwig
-
- situation plan
-
- ground floor plan
-
- first floor plan
-
- second floor plan
-
- elevation 01
-
- elevation 02
-
- elevation 03
-
- elevation 04
-
- section 01
-
- section 02
-
- section 03
