Het Kasteel / HVDN
© John Lewis Marshall
Architects: HVDN
Location: Amsterdam, The Netherlands
Design Team: Arie van Der Neut, Albert Herder, Vincent van Der Klei
Project Team: Arie van Der Neut, Albert Herder, Vincent van Der Klei, Monika Pieroth, Pascal Bemelmans
Structural Engineering: Jean-Marc Saurer, Vincent van Der Klei
Client: Hopman Interheem Groep Gouda
Contractor: Heddes Bouw
Project Year: 2004-2008
Budget: € 17.000.000
Photographs: John Lewis Marshall, Luuk Kramer & Jean-Pierre Jans
Location

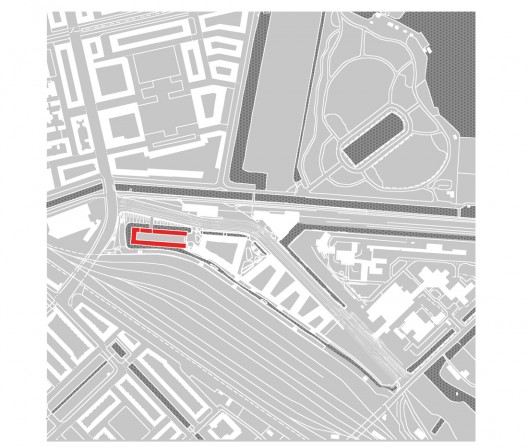

situation plan
The Science Park is hemmed in between the Flevopark, the neighborhood of the Indische buurt and the Amsterdam-Almere railway line. Until recently, the site was occupied by allotments alongside research institutes and science and technology companies. The allotments are to be replaced by five new residential buildings situated in a park-like environment of restricted traffic speeds. Car-parking is located within the buildings so the area’s appearance is not defined by on-street parking. As ‘Het Kasteel’ (the castle) stands at the entrance to the project, on the west side facing the city, it acts as its calling card.
© Luuk Kramer

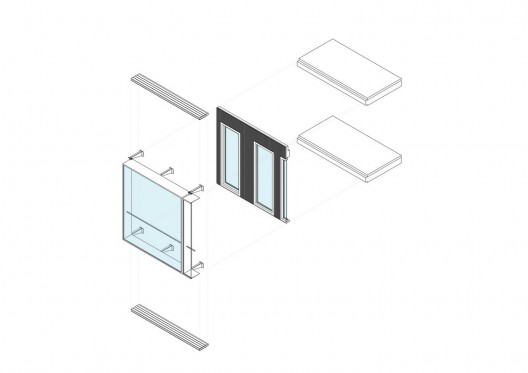

window exploted axo
Crystal

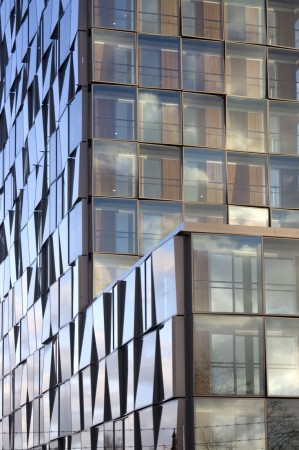

Its location adjacent to the railway lines necessitates a high level of sound insulation and it is this that defines the external expression of the ‘Kasteel’. The building is enveloped in a glazed skin that stands free from the apartment block behind. In order to give the skin a tactile quality, the panels are angled slightly to each other; this artifice lends the building the appearance of a gigantic crystal.
© John Lewis Marshall
Icon

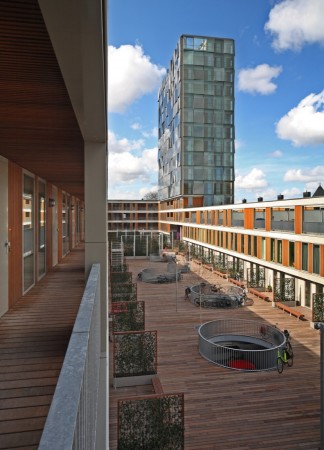

The ‘Kasteel’ consists of a 45m high tower standing on a four to five-storey base. It is surrounded by water and pedestrians and cyclists access the internal courtyard via a bridge. The car parking, storage spaces and some of the ground floor dwellings’ living spaces are positioned underneath the courtyard’s half-open wooden deck. The dwellings vary in size: those on the ground floor include a living space just above the water level while those above contain either a balcony or a terrace. The interaction between the apartment block’s recessed elevation and the glazed panels of the building’s skin ensures the entrance building acts as an icon for the Science Park.
-
- © John Lewis Marshall
-
- © John Lewis Marshall
-
- © John Lewis Marshall
-
- © John Lewis Marshall
-
- © Jean-Pierre Jans
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- © Luuk Kramer
-
- situation plan
-
- building plan 01
-
- building plan 02
-
- building plan 03
-
- building plan 04
-
- building plan 05
-
- dwellings plans 01
-
- dwellings plans 02
-
- dwellings plans 03
-
- dwellings plans 04
-
- dwellings plans 05
-
- dwellings plans 06
-
- section 01
-
- section 02
-
- façade detail 01
-
- façade detail 02
-
- façade detailed section
-
- roof detail
-
- sound & ventilation detail
-
- ventilation detail
-
- window exploted axo
-
- windows axo
-
- windows type detail
